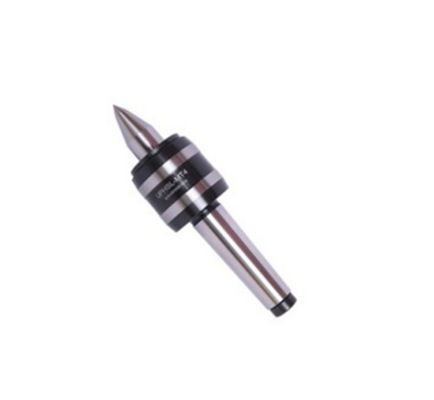

Polished CNC Revolving Center MT3 Live Center For Wood Lathe

AppliCATEion: Lathe Feature: High Precision
Material: Steel Name: Revolving Centre
Packaging: Carton Box Surface Treatment: Polished
Type: Tool Usage: For Turning
Highlight:

CNC Revolving Center MT3

,

Polished CNC Revolving Center

,

MT3 Live Center For Wood Lathe

Revolving center High Speed Turning Live Center machining centers live centre



Revolving center High Speed Turning Live Center ,The high-speed rotary centers produced by our company are all NSK high-end bearings imported from Japan, and the vertebral body and cusp shaft are all made of special steel with guaranteed quality, high temperature resistance, high hardness, and high precision. They are completely comparable to an imported high-speed precision rotary center from South Korea. The price is only one third of its price. The precision of the high-speed rotary centers produced by our company is within 0.003mm. After repeated tests, they can work well within 6000 revolutions, It can be used for CNC lathes, machining centers and high-precision grinders. The products are packed with internal frames, so there is no need to worry about collisions and scratches during shipment!



Morse Taper Live Centre SpecifiCATEEions
1. Ultra-precision High Speed Live Centre Center assembly bearings, thrust bearings
2. High Speed Live Centre Can be used at medium speed
3. Shaft made of alloy steel, through heat treatment
4.HRC58-60, handle super steel features and high durability.
5. The plunger uses precision-matched angular contact ball bearings and roller bearings to further improve the accuracy of the rotary tip. 6. Front with dust-proof, waterproof seal, to extend the life of the top .
7. Suitable for precision machining CNC high speed heavy load.
8. Ultra-precision Live Centre Accuracy: 0.003mm
9. Speed Live Centre Material: Body: 40Cr HRC40-45
Sharp: GGr15 HRC58-62

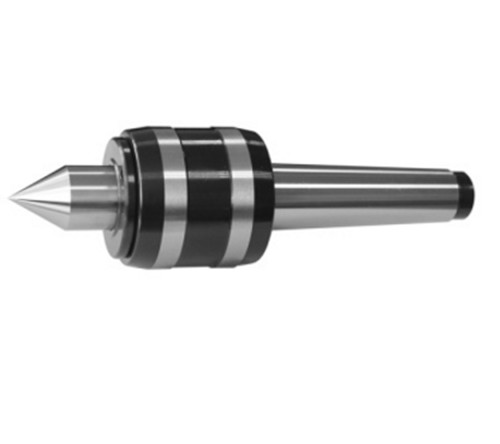

Polished CNC Revolving Center MT3 Live Center For Wood Lathe 0



The term "live centre" can refer to a few different things depending on the context:

1. In machining: A live centre is a type of lathe centre that rotates with the workpiece, providing support and reducing friction during turning operations. It is typically mounted in the tailstock of a lathe and features a bearing or ball mechanism that allows it to rotate freely.

2. In sports: Live centre refers to a central area or loCATEEion where live updates, scores, and other real-time information about a sporting event are provided. This could be a website, mobile app, or a dediCATEEed section within a sports broadcasting network.

3. In broadcasting: Live centre can also refer to a control room or production area in a television or radio station where live programming is managed and coordinated. This includes tasks such as switching between cameras, managing audio levels, and ensuring smooth transitions between different segments of a live show.

It is important to note that the exact meaning of "live centre" may vary depending on the specific industry or context in which it is used.



型号
Model.No
D D1 D2 H a L L1 L2 L3 精度 Speedr.min﹣1 KGS
MT2 17.78 20 43 6 60° 150 80 54 14 0.003 8000 0.85
MT3 23.825 22 53 6.5 175 94 54 16 8000 1.3
MT4 31.627 28 63 8.5 218 116 65 15 6000 2.1
MT5 44.399 38 83 8.5 267 132 78 20 5000 4.7



LIVE CENTRE.pdf
