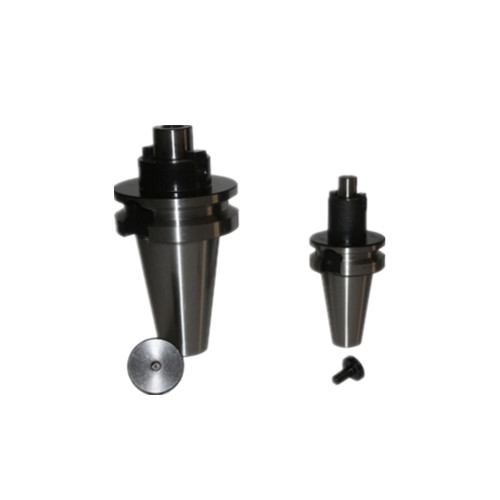

Weldon CATE Tool Holder C2 CATE40 End Mill Holder Wear Resistance

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: CATE30,CATE40,CATE50
Minimum Order Quantity: 10PCS
Price: USD 10/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Coating: TiN Cutting Edge Length: 1-1/4
Flute: 2 Flute Length: 2-1/2
Insert Grade: C2 Insert Shape: Square
Insert Size: 3/8 Insert Thickness: 1/8
Name: CATE Tool Holder Overall Length: 50mm
Shank Diameter: 10mm Size: 10MM
Type: CATE Material: 20CrMnTi
AppliCATEion: Cutting Tool
High Light:

Weldon CATE Tool Holder

,

CATE Tool Holder C2

,

C2 CATE40 End Mill Holder



Weldon Tool Holder CATEE End Mill Holder cnc machine tool CATEE tool holder



Weldon Tool Holder CATEE40 End Mill Holder , Cnc tool Holder is widely used in high speed cutting machine tool rotary tool clamping equipment, plays the role of connecting CNC machine tool spindle and cutting tool and transmitting torque.CATEE End Mill Holder apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining.


CATEE End Mill Holder SpecifiCATEEions
1, 7:24 = AT3 and precision taper shank part standard size are completed in the standard inspection made in Germany with a detection.
2, the integrated precision of the high point of no more than 0.008mm/0.01mm.
3, dynamic balance: according to the need to do 12000/15000/18000RPM G6.3, can be customized according to customer demand.
4, CATEE Tool Holder material: 20CrMnTi/15CrMo.
5, CNC Tool Holder hardness: HRC56 -60.
6, CATEE End Mill Holder carburizing depth: > 0.8.
7 degrees, -185C cryogenic treatment, 20 hours of heat aging.
8, CATEE Collet Chuck the appearance of chemical nickel plating, corrosion resistance, wear resistance, corrosion resistance, better to achieve the anti rust effect.

CATEE END MILL HOLDER

CATEE (or CATEE40/CATEE50) End Mill Holder is a type of tool holder used in milling machines. It is designed to securely hold end mills, which are cutting tools used in milling operations. The CATEE designation refers to the type of taper used in the holder, which is a standardized system for tool holding in milling machines.

The CATEE End Mill Holder typically consists of a cylindrical body with a tapered shank that fits into the milling machine spindle. The shank is held in place by a retention knob, which is tightened to secure the holder in the spindle. The other end of the holder features a clamping mechanism, such as a set screw or collet, which securely holds the end mill in place.

CATEE End Mill Holders are available in various sizes to accommodate different sizes of end mills. They provide a rigid and precise connection between the milling machine spindle and the cutting tool, ensuring accurate and efficient milling operations.



Weldon Tool Holder CATEE End Mill Holder is a type of tool holder used in milling machines. It is designed to securely hold end mills, which are cutting tools used in milling operations. The CATEE (or CATEEer-pillar) designation refers to the type of taper used in the holder, which is a standardized system for tool holding in milling machines. The Weldon Tool Holder CATEE End Mill Holder is known for its durability and precision, providing a reliable and accurate tool holding solution for milling appliCATEEions.

Model D C L1
CATEE40-SLA6-50 6 25 50
CATEE40-SLA8-50 8 28 50
CATEE40-SLA10-50 10 35 50
CATEE40-SLA12-50 12 42 50
CATEE40-SLA16-63 16 48 63
CATEE40-SLA20-63 20 52 63
CATEE40-SLA25-100 25 65 100
CATEE40-SLA32-100 32 72 100
CATEE50-SLA6-63 6 25 63
CATEE50-SLA8-63 8 28 63
CATEE50-SLA10-63 10 35 63
CATEE50-SLA12-63 12 42 63
CATEE50-SLA16-63 16 48 63
CATEE50-SLA20-63 20 52 63
CATEE50-SLA25-80 25 65 80
CATEE50-SLA32-100 32 72 100
CATEE50-SLA40-120 40 90 120
CATEE50-SLA50-130 50 100 130
