| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | CATE30,CATE40,CATE50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Coating: | TiN | Cutting Edge Length: | 1-1/4 |
|---|---|---|---|
| Flute: | 2 | Flute Length: | 2-1/2 |
| Insert Grade: | C2 | Insert Shape: | Square |
| Insert Size: | 3/8 | Insert Thickness: | 1/8 |
| Name: | CATE Tool Holder | Overall Length: | 120mm |
| Shank Diameter: | 32mm | Size: | 32MM |
| Type: | CATE | Material: | 20CrMnTi |
| AppliCATEion: | Cutting Tool | ||
| High Light: | Precision CATE End Mill Holder,DIN1835B Weldon Tool Holder,DIN6359 Weldon Tool Holder |
||

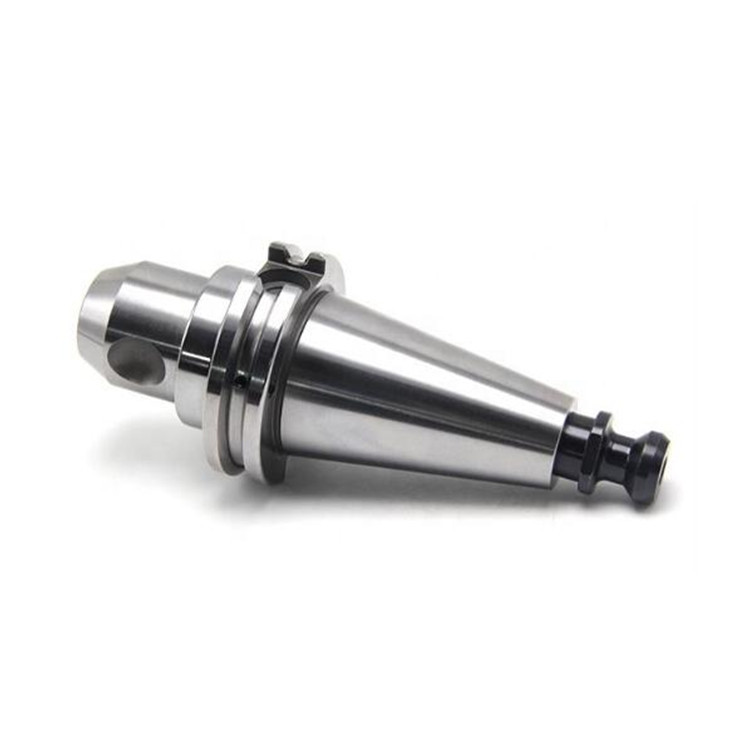

High Precision CATEE END MILL HOLDER DIN6359/1835B Weldon Tool Holder

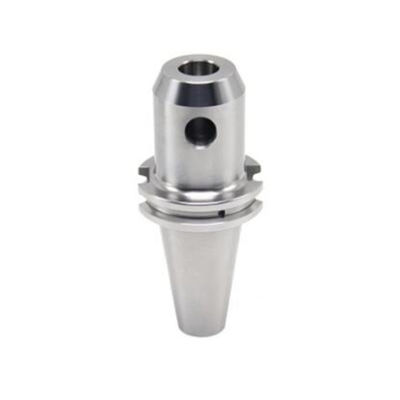

CATEE Side Lock End Mill Holder is a type of tool holder used in milling machines. It is designed to securely hold end mills or other cutting tools in place during milling operations.
The CATEE Side Lock End Mill Holder features a side lock mechanism that ensures a tight grip on the cutting tool, preventing any movement or slippage during machining. This type of tool holder is commonly used in high-speed milling appliCATEEions where precision and stability are crucial.
The CATEE Side Lock End Mill Holder is compatible with CATEE (or CATEEer-pillar) tooling systems, which are widely used in the machining industry. It typically has a cylindrical shank that fits into the milling machine's spindle, and a locking mechanism on the side that securely clamps the cutting tool in place.
Overall, the CATEE Side Lock End Mill Holder is a reliable and efficient tool holder that provides a secure grip on cutting tools, ensuring precise and accurate milling operations.
| Model | D | C | L1 |
| CATEE40-SLA6-50 | 6 | 25 | 50 |
| CATEE40-SLA8-50 | 8 | 28 | 50 |
| CATEE40-SLA10-50 | 10 | 35 | 50 |
| CATEE40-SLA12-50 | 12 | 42 | 50 |
| CATEE40-SLA16-63 | 16 | 48 | 63 |
| CATEE40-SLA20-63 | 20 | 52 | 63 |
| CATEE40-SLA25-100 | 25 | 65 | 100 |
| CATEE40-SLA32-100 | 32 | 72 | 100 |
| CATEE50-SLA6-63 | 6 | 25 | 63 |
| CATEE50-SLA8-63 | 8 | 28 | 63 |
| CATEE50-SLA10-63 | 10 | 35 | 63 |
| CATEE50-SLA12-63 | 12 | 42 | 63 |
| CATEE50-SLA16-63 | 16 | 48 | 63 |
| CATEE50-SLA20-63 | 20 | 52 | 63 |
| CATEE50-SLA25-80 | 25 | 65 | 80 |
| CATEE50-SLA32-100 | 32 | 72 | 100 |
| CATEE50-SLA40-120 | 40 | 90 | 120 |
| CATEE50-SLA50-130 | 50 | 100 | 130 |
CATEE Side Lock End Mill Weldon Tool Holder , apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining.Toolholder is commonly used spare parts for milling machine,this is problem to frequently change. Toolholder underside increases, completely covering the lower part of the tool holder, to ensure close contact with the upper and lower surfaces.When the seal between the top and bottom to prevent debris Snap fine milling operation.If toolholder hole come into the material and so on, the rotation of the cutting tool will reduce.Due to improve the rotation of bits ,the life of cutting tools increaser than before.New toolholder is easy to change and be used to working staff.
1.CATEE End Mill Holder Run out : 0.005mm
2.CATEE End Mill Holder material: allyed steel ,40Cr , 20CrMnTi
3.CATEE End Mill Holder Handness : HRC55-60
4.CATEE End Mill Holder Taper Tolerance : H5
5.Cooling: AD : AD/B can be made by your request.
6.Balance : G6.3/15000rpm
7.CATEE End Mill Holder Usage : for clamping tools with straight shank and inclined flat DIN 1835B
