| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | CATE30,CATE40,CATE50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Machine | Brand: | OEM |
|---|---|---|---|
| Color: | Silver | Hardness: | HRC50-55 |
| MOQ: | 100 Pieces | Material: | 20CrMnTi |
| Package: | Carton Box | Product Name: | CATE Tool Holder |
| Size: | CATE40 APU13 | Surface Treatment: | Polishing |
| Tolerance: | 0.01mm | Weight: | 1.5kg |
| High Light: | Self Fasten Drill Chuck Holder,CNC CATE Drill Chuck Holder,16mm Bits CATE Tool Holder |
||

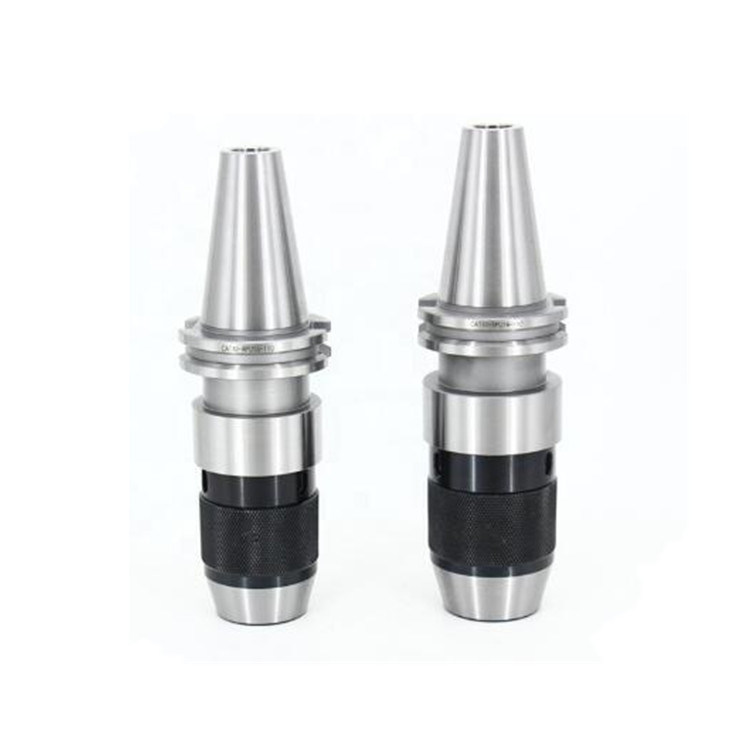

CNC CATEE APU Self-fasten Drill Chuck Tool Holder for 0.5-16mm Bits
Lathe tool holder CATEE APU Drill Chuck , High Precision CT shank Tool Holder ,balanced G6.3 or G2.5 For choose.CATEE APU Drill Chuck for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly CT30 CT40 CT50... Etc.. Mold industry, and high-speed engraving machine, used more.CATEE APU Drill Chuck AppliCATEEion range: clip diameter: 0.5-16mm bit .Mechanical spindle and cutting tools and other accessories.
CATEE Holder APU Drill Chuck Tool Holder CNC Machine Tool Holder
1.CATEE APU Drill Chuck Materail: 20CrMnTi
2.CATEE APU Drill Chuck Hardness: HRC 56-58
3.CATEE APU Drill Chuck Max run out: <0.005mm
4.CATEE APU Drill Chuck Taper tolerance:<AT3
5.CATEE APU Drill Chuck Carbon depth: 0.8mm±0.2mm
6.Surface Roughness: Ra<0.005mm
7.Cooling AD+B type can be made by request
8.When Order, please specify balancing G6.3 or G2.5
Shank body standard: ANSI B5.50
| Model No | Clamping Range | D | L | |
| Min | Max | |||
| CATEE40-APU08 | 1-8 | 36.3 | 65 | 76.5 |
| CATEE40-APU13 | 1-13 | 51.5 | 88 | 99 |
| CATEE40-APU16 | 3-16 | 58 | 106 | 120 |
| CATEE50-APU08 | 1-8 | 36.3 | 70 | 77.5 |
| CATEE50-APU13 | 1-13 | 51.5 | 89 | 100 |
| CATEE50-APU16 | 3-16 | 58 | 96 | 110 |
lathe tool holder CATEE APU drill chuck is a tool holder specifically designed for use in a lathe machine. It is designed to hold drill bits securely in place during drilling operations. The CATEE APU refers to the type of tool holder taper, which is a common standard in the industry. The drill chuck is the component that holds the drill bit and allows it to rotate during drilling.
CATEE40 APU16 Drill Chuck is a tool holder used in machining operations. It is designed to hold drill bits securely in place while drilling holes in various materials. The CATEE40 refers to the type of tool holder, which is a popular standard in the machining industry. The APU16 refers to the chuck size, which is capable of holding drill bits with a maximum diameter of 16mm. This drill chuck is commonly used in CNC milling machines and other machining centers that use the CATEE40 tooling system.
milling machines to hold and secure milling cutters. It is designed to be compatible with the CATEE (CATEEer-pillar) APU (Adjustable Precision Unit) system, which is a widely used tooling system in the machining industry.
The tool holder consists of a shank that fits into the spindle of the milling machine and a chuck that securely holds the milling cutter. The chuck is adjustable, allowing for easy and precise tool changes.
The CATEE APU drill chuck tool holder is known for its high rigidity and accuracy, making it suitable for heavy-duty milling operations. It provides a stable and reliable connection between the milling machine and the milling cutter, ensuring efficient and precise machining.
Overall, the milling cutter CATEE APU drill chuck tool holder is an essential tool for milling operations, providing a secure and accurate way to hold and change milling cutters.
