Material: | Stainless Steel | Size: | 6-32mm |
---|---|---|---|
Type: | Wrench Set | AppliCATEion: | Repairing |
Product Name: | Er Spanner | Surface Treatment: | Black Oxide |
Color: | Black,red | Handle: | Screwable And Chrome Coated,Comfortable Dipped Handle With 2 Colour,Chrome Plated |
Standard: | ISO,JIS,DIN | ||
High Light: | ER Spanner Wrench Tools,Collet Nuts Adjustable Spanner Wrench,Adjustable Spanner Wrench ER |

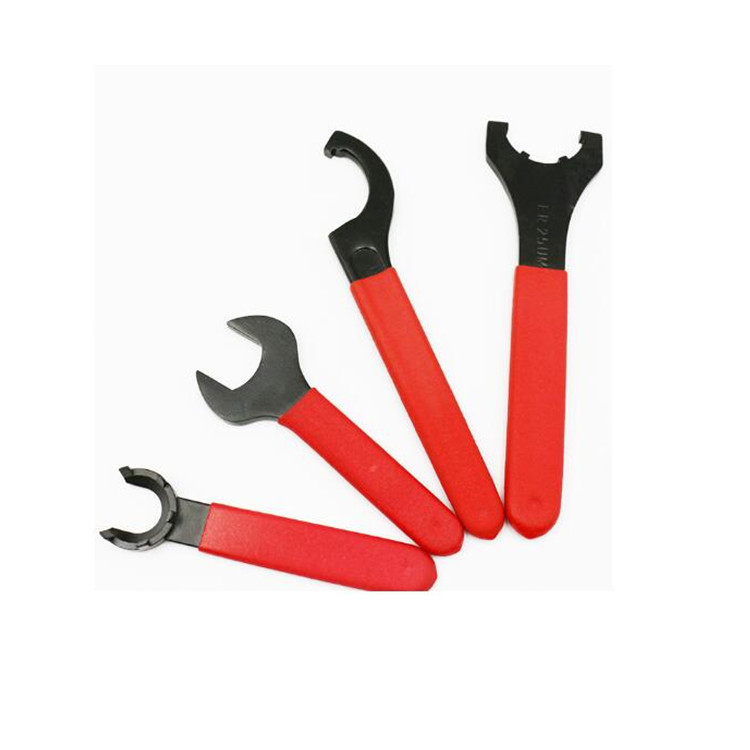

ER Spanner Wrench Tools for Collet Nuts Adjustable Spanner Wrench
ER Spanner Wrench Tools for Collet Nuts ,Spanners are basically divided into two types, dead wrench and live wrench. The former refers to the wrench with fixed number written on it, while the latter is the adjustable wrench.
1. Solid spanner: one end or both ends are made with opening of fixed size, which is used to screw nuts or bolts of certain size. 2. Ring spanner: both ends have working end with hexagonal hole or twelve angle hole, which is suitable for the occasions where the working space is narrow and ordinary spanner cannot be used.
3. Dual purpose wrench: one end is the same as single solid spanner, the other end is the same as the ring spanner, and the bolts or nuts of the same specifiCATEEion are screwed at both ends.
4. Adjustable spanner: the opening width can be adjusted within a certain size range, and it can turn bolts or nuts of different specifiCATEEions. The structural features of the wrench are that the fixed jaw is made into a flat jaw with fine teeth; one end of the movable jaw is made into a flat jaw; the other end is made into a concave jaw with fine teeth; by pressing down the worm, the movable jaw can be quickly removed and the position of the jaw can be changed.
5. Hook spanner: also known as crescent spanner, used to turn flat nuts with limited thickness.
6. Socket wrench: it is composed of multiple sleeves with hexagonal holes or twelve holes, and is equipped with handle, extension bar and other accessories. It is especially suitable for the bolts or nuts with very narrow screw position or deep depression.
7. Hexagon wrench: L-shaped hexagon bar wrench, specially used for turning hexagon screw. The model of the hexagon wrench is based on the size of the opposite side of the hexagon, and the bolt size has the national standard. Purpose: it is specially used for fastening or dismantling round nuts on machine tools, vehicles and mechanical equipment.
8. Torque wrench: it can display the applied torque when screwing the bolt or nut; or it will send out light or sound signal when the applied torque reaches the specified value. Torque wrench is suitable for the torque size has clear provisions.Spanner Wrench Set,Er Wrench Spanner,Er Spanner,Er Collet Spanner.
spanner wrench harbor freight:Qingdao

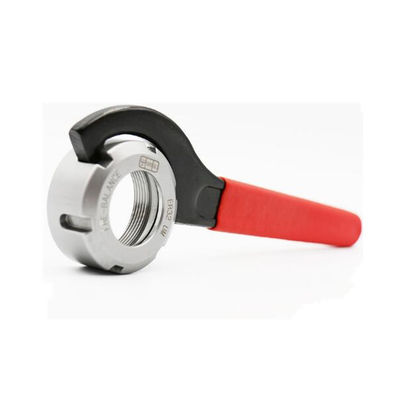

ER32-UM Cnc Nut Wrench Or Spanner,ER Spanner CNC Tool Holder Collet Wrench Chuck Spanner for Tighten and Remove Collet.These collet wrenches are standard spanner used with ER collet system. ER Spanner Such as: ER11A, ER11M, ER16A, ER16M, ER20A, ER20M, ER25UM, ER25M, ER32UM, GSK CER wrench, ER-MS wrench, ISO wrench, C type wrench, etcER Spanner CNC supplies high quality tool holding system and accessaries for various CNC appliCATEEion of woodworking, acrylic plastics, stone and marble, and metal working industries.CNC offers a source for high quality CNC tool holders and accessories. Such as ISO, HSK, SK, BT, Collets, Collet Nuts, Spanner Wrenches, Tightening Fixture, and much more.ER wrench ER spanner,Wrench is the use of leverage wrenching bolts, screws, nuts and other threaded fasteners hand tools. Wrench usually made one or both ends of the handle opening or aperture sets of clamping bolts or nuts. When applied to the use of the direction of rotation along the threaded shank force can wrenching bolts or nuts.
Cnc Spanner SpecifiCATEEions
1.ER Spanner Model NO.:ER8/11/16/ 20/ 25/ 32/ 40/50 wrench spanner
2.:Er Wrench Spanner TYPE:UM,MINI,A
3.Er Collet Spanner Material: 42CrMo Hardness: HRC40-45
4.Standard:American Type, Metric, British, German Type, European Type
5.Feature:Anti-Explosion, Ordinary, Anti-Magnetic
6.Origin:Jining, China
7.Packaging Detail: Plastic boxes, cartons
8.Delivery Detail: 15-20 days after receiving the deposit and all package information confirmed.
Model | B | L | Clamping Nut |
ER11-A | 17 | 110 | ER11-A |
ER16-A | 25 | 120 | ER16-A |
ER20-A | 30 | 130 | ER20-A |
ER8-M | 7.5 | 70 | ER8-M |
ER11-M | 11 | 90 | ER11-M |
ER16-M | 15 | 110 | ER16-M |
ER20-M | 19.5 | 120 | ER20-M |
ER25-M | 25 | 130 | ER25-M |
ER16-UM | 26 | 180 | ER16-UM |
ER20-UM | 30 | 190 | ER20-UM |
ER25-UM | 37 | 210 | ER25-UM |
ER32-UM | 45 | 250 | ER32-UM |
ER40-UM | 58 | 290 | ER40-UM |
ER50-UM | 74 | 350 | ER50-UM |
