| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 1-2/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Machine | Material: | 20CrMnTi; |
|---|---|---|---|
| Hardness: | 54-57HRC; | Pull Stud Type: | CNC Pull Stud |
| Surface Treatment: | Black Oxide | Thread Size: | M12 |
| Weight: | 0.1kg | ||
| High Light: | 45 Degree BT40 Pull Stud,BT40 CNC Pull Stud,CNC Pull Stud 20CrMnTi |
||

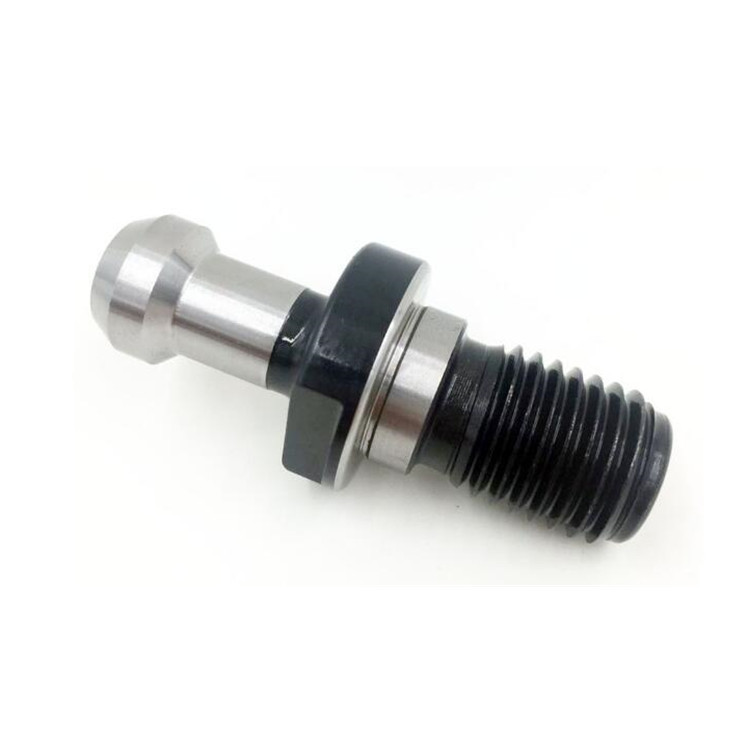

BT40 45 Degree High Hardness CNC Pull Studs 20CrMnTi retention knobs
| MODEL | D | D1 | D2 | M | L | L1 | L2 | H | H1 |
| BT30 | 12.50 | 7 | 11 | M12 | 43 | 23 | 18 | 5 | 2.5 |
| BT40 | 17.00 | 10 | 15 | M16 | 60 | 35 | 28 | 6 | 3 |
| BT50 | 25.00 | 17 | 23 | M24 | 85 | 45 | 35 | 10 | 5 |
BT40 pull stud 45 Degree pull studs,Pull stud of minor quality not only decrease the performance of the machine,they are even a safety risk.A breaking pull stud might cause severe damage on machine and workpiece and even injuries on persons.Milling tools BT40 pull stud,BT pull stud Aging treatment 20-40 h super-long heat aging removes residual internal stress during grinding. Deep cooling treatment and thermal aging treatment can reduce residual stress and improve durability and accuracy stability.Adopt surface coating technology to improve the anti-wear ability of the surface, better anti-rust and anti-corrosion effect, more stable accuracy, smoother surface and more beautiful appearance.
● BT Pull Stud Material: 20CrMnTi;
● BT Pull Stud Carburization depth:> 0.8;
● Cnc Pull Stud Hardness: 54-57HRC;
● Retention Knobs Pull Studs Surface "green" special coating treatment, improve the surface hardness, wear resistance, improve cleanliness, more stable accuracy, the surface is more smooth, rust, better corrosion resistance, feel more comfortable and more beautiful appearance.
● BT Pull Stud Thread and other parts of the lower hardness: 35 ± 5HRC,( 59168838, 57344657, 56948422,protection handle thread, the core hardness can withstand shock);
● Knob Stud Cryogenic treatment and heat aging treatment can reduce the residual stress, improve durability and accuracy of stability.
45 degree BT pull stud is a type of tool holder used in machining operations. It is designed to securely hold a tool in place while allowing for easy removal and replacement. The 45 degree angle refers to the angle at which the pull stud is inserted into the tool holder. This angle helps to ensure a tight and secure fit between the tool and the holder, reducing the risk of tool slippage or movement during operation. The BT designation refers to the type of tool holder taper, which is commonly used in milling machines. Overall, the 45 degree BT pull stud is an essential component in tool holding systems, providing stability and precision in machining processes.
BT pull studs are specialized fasteners used in CNC (Computer Numerical Control) machining centers. They are commonly used in combination with BT tool holders to secure cutting tools in place during machining operations.
The pull studs have a unique design that allows for quick and secure tool changes. They typically have a threaded end that screws into the tool holder, while the other end has a flange or knob that is used to pull the stud into place and lock it in position.
The BT pull studs are made from high-quality materials such as hardened steel to ensure durability and reliability. They are also designed to provide a precise fit with BT tool holders, minimizing any potential tool runout or movement during machining.
Overall, CNC BT pull studs play a critical role in ensuring the stability and accuracy of cutting tools in CNC machining centers, making them an essential component in the manufacturing industry.
