| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 1-2/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Milling Machines | Material: | 20CrMnTi; |
|---|---|---|---|
| Hardness: | 54-57HRC; | Pull Stud Type: | DIN69872 |
| Surface Treatment: | Black Oxide Coating | Thread Size: | M12 |
| Weight: | 0.1kg | Package: | Plastic Box Or Customized |
| Taper: | DIN6987240 | ||
| High Light: | sk cnc pull stud,cnc pull stud din 69872 |
||

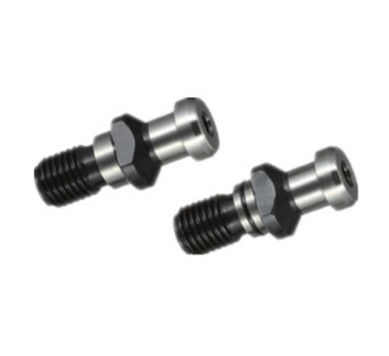

DIN69872 Pull Stud SK Pull Stud For Collet Chuck In Milling Drilling And Boring AppliCATEEions
SK DIN69872 Pull Stud,SK Pull Stud AppliCATEEion: Milling Machine, Drilling Machine, Boring Machine.Pull stud of minor quality not only decrease the performance of the machine,they are even a safety risk.A breaking pull stud might cause severe damage on machine and workpiece and even injuries on persons.
SK Pull Stud SpecifiCATEEions
1)SK Pull Stud material: alloy steel
2).SK Pull Stud Size:SK30,SK40,SK50
3)SK Pull Stud coolant or without coolant
4)Hardness:HRC44-48 or HRC48-52 as per material
5)model type:SK tool holder
6)SK Pull Stud AppliCATEEion: Milling Machine, Drilling Machine, Boring Machine
7)SK Pull Stud Usage: Collet Chuck
| MODEL | D | D1 | D2 | M | L | L1 | L2 |
| SK30A/B | 13 | 9 | 13 | M12 | 44 | 24 | 19 |
| SK40A/B | 17 | 14 | 19 | M16 | 54 | 26 | 20 |
| SK50A/B | 25 | 21 | 28 | M24 | 74 | 34 | 25 |
DIN69872 SK pull stud is a type of tool holder accessory used in machining operations. It is designed to securely attach a tool holder or collet chuck to a machine spindle. The pull stud is inserted into the spindle and tightened using a retention knob, which pulls the tool holder or chuck into place.
The DIN69872 SK pull stud is specifically designed for the SK tool holder system, which is a popular type of tool holder used in CNC milling machines. The pull stud is made from high-quality steel and is heat-treated for durability and strength.
The SK pull stud is available in various sizes and dimensions to fit different types of tool holders and machine spindles. It is important to select the correct pull stud for your specific appliCATEEion to ensure proper tool holder retention and prevent any potential accidents or tooling failures.
Overall, the DIN69872 SK pull stud is an essential component in the SK tool holder system, providing a secure and reliable connection between the tool holder and machine spindle for efficient and accurate machining operations.
1.What kind of characteristic of your company?
We are both manuafcturer and exporter.
2.Can you supply samples?
Yes,we can.
3.Can you produce products according to our requirement?
Yes,we can.
4. About Shipping
| Port: | Shanghai/Ningbo/Guangzhou/Shenzhen/Hongkong | |
| Shipping : | By Air, By Sea or By Express | |
| Shipping Time : | 4-10days By Express | Different Area will spend different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
5. product warranty
One year warranty
6.What's your payment terms?
FOB,T/T,CIF.
