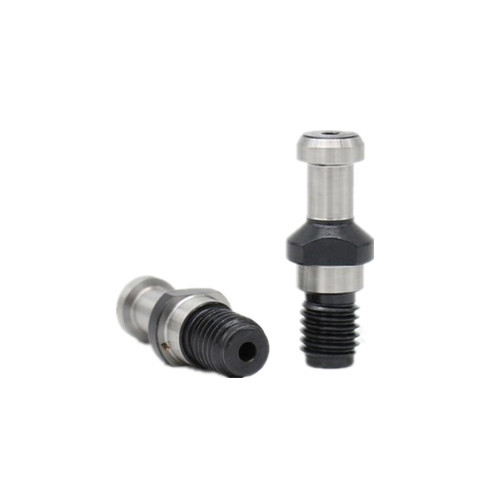

Cnc Tool Holder Pull Stud High Precision Din 69872 Sk Retention Knob

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: SK30,SK40,SK50
Minimum Order Quantity: 10PCS
Price: USD 1-2/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: CNC Milling Machines Material: 20CrMnTi;
Hardness: 54-57HRC; Pull Stud Type: DIN69872
Surface Treatment: Black Oxide Coating Thread Size: M12
Weight: 0.1kg Package: Plastic Box Or Customized
Taper: DIN6987240
High Light:

cnc tool holder pull stud

,

high precision cnc pull stud

,

precision pull studs for cnc machines

cnc tool holder Pull Stud High Precision DIN69872 SK retention knob



SK40A 45 Degree Tool Holder pull stud ,which belongs to American thread pull screw. Mainly used in CNC numerical control machine tool 50 taper handle. CNC tool holder pull stud is made of high quality steel 20CrMnTi. CNC pull stud According to different uses, the hardness HRC is between 48 degrees and 56 degrees. CNC pull stud The overall compact and stable, special rust-proof material, overall carburizing treatment, compared with the ordinary tool holder pull nail increased by 1 times the wear resistance and tensile resistance. CNC pull stud The overall performance is better. CNC pull stud Accuracy: less than 0.005mm.



MODEL D D1 D2 M L L1 L2
SK30A/B 13 9 13 M12 44 24 19
SK40A/B 17 14 19 M16 54 26 20
SK50A/B 25 21 28 M24 74 34 25



SK40 pull stud is a type of tool holder used in machine tool appliCATEEions. It is commonly used in milling machines and machining centers. The pull stud serves as a connection between the tool holder and the machine spindle, ensuring a secure and accurate grip on the cutting tool.

The SK40 pull stud is designed to fit into a corresponding spindle taper, typically a BT40 or CATEE40 spindle. It features a threaded end that connects to the tool holder, and a tapered end that fits into the spindle taper. The pull stud is tightened using a retention knob or drawbar, which pulls the tool holder into the spindle taper, creating a strong and rigid connection.

The SK40 pull stud is known for its high clamping force and precision, making it suitable for heavy-duty machining operations. It is also compatible with a wide range of tool holders and cutting tools, allowing for versatility in machining appliCATEEions.

Overall, the SK40 pull stud is a critical component in machine tool setups, providing a reliable and secure connection between the tool holder and the machine spindle.

SK PULL STUD1

SK PULL STUD

FAQ:

1.What kind of characteristic of your company?

We are both manuafcturer and exporter.



2.Can you supply samples?

Yes,we can.



3.Can you produce products according to our requirement?

Yes,we can.



4. About Shipping

Port: Shanghai/Ningbo/Guangzhou/Shenzhen/Hongkong
Shipping : By Air, By Sea or By Express
Shipping Time : 4-10days By Express
Different Area will spend different shipping days
7-15days By Air
25-55days By Sea
Trade Terms FOB, CIF, EXW, CFR, DDU...


5. product warranty

One year warranty



6.What's your payment terms?

FOB,T/T,CIF.



Workshop and Warehouse Corner

Cnc Tool Holder Pull Stud High Precision Din 69872 Sk Retention Knob 2Cnc Tool Holder Pull Stud High Precision Din 69872 Sk Retention Knob 3
