| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | HSK40,HSK50,HSK63,HSK100 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Machine | Material: | 20CrMnTi |
|---|---|---|---|
| Name: | HSK Tool Holder | Packaging: | Carton Box |
| Run-out: | 0.003mm | Size: | Customized |
| Surface Treatment: | Nitriding | Tolerance: | 0.005mm |
| Type: | HSK Tool Holder | ||
| High Light: | HSK50 Spindle Collet Chuck,Collet Chuck HSK Tool Holder,hsk 50 tool holder |
||

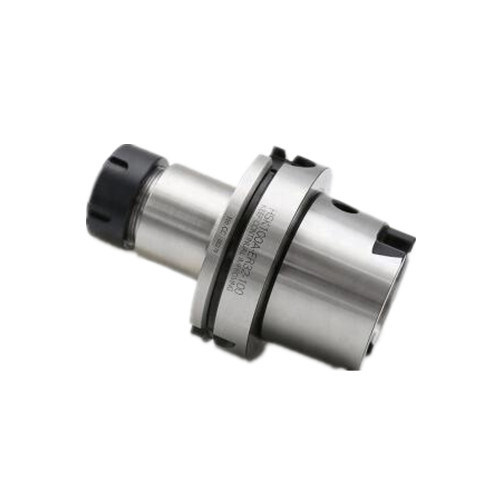

HSK ER Spindle Collet Chuck Tool Holders for Lathe Metal Lathe Milling Machine
HSK50 HSK63 ER Collet Chuck With DIN 69893 Standard ,HSK ER collet chuck Precision stability,good cleaning,mainly used for clamping drill bit, reamer and taps,end mills., high speed and high precision machining. HSK ER Spindle Collet Chuck Tool Holders for Lathe Metal Lathe Milling Machine are made of high quality steel material, with hardness of HRC56-60.Mechanical spindle and cutting tools and other accessories. High Precision HSK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
HSK ER collet chuck SpecifiCATEEions
1.Products name:HSK ER Collet Chuck Tool Holder
2.Model Number:HSK30,HSK40,HSK50
3.AppliCATEEion:milling Tool Holder for CNC Routers
4.Material:20CrMnTi
5.Standard:DIN69893
6.Hardness:HRC58±2mm
7.Rotating speed:G2.5 30000rpm
8.Runout:within 5 μm
9.Surface Roughness:Ra<0.25μm
10.Taper cone:<AT3
11.Carburizing:0.8mm
12.Payment:TT/paypal/western union/trade assurance/visa/e-check
13.Supply Ability:30000 Piece/Pieces per Month HSK50E ER16 Tool Holder
Packaging Details:
1.Film inside-plastic box-carton-pallet
2.According to your request
Port:Qingdao,Tianjin,Shanghai
Lead Time :Usually in stock, ship immediately after payment..
| Model No | L | L1 | L2 | D(h10) | d1 | d2 | d3(MAX) | T | KGS |
| HSK63A-ER16-80 | 112 | 80 | 54 | 63 | 28 | 16 | 53 | M10×1.5P | 1.50 |
| HSK63A-ER16-100 | 132 | 100 | 74 | 1.55 | |||||
| HSK63A-ER16-120 | 152 | 120 | 94 | 1.70 | |||||
| HSK63A-ER20-80 | 112 | 80 | 54 | 34 | 20 | M12×1.75P | 1.60 | ||
| HSK63A-ER20-100 | 132 | 100 | 74 | 1.70 | |||||
| HSK63A-ER20-120 | 152 | 120 | 94 | 1.60 | |||||
| HSK63A-ER25-80 | 112 | 80 | 54 | 42 | 25 | M16×2.0P | 1.70 | ||
| HSK63A-ER25-100 | 132 | 100 | 74 | 1.80 | |||||
| HSK63A-ER25-120 | 152 | 120 | 94 | 2.00 | |||||
| HSK63A-ER25-150 | 182 | 150 | 124 | 2.30 | |||||
| HSK63A-ER32-80 | 112 | 80 | 54 | 50 | 32 | 2.50 | |||
| HSK63A-ER32-100 | 132 | 100 | 74 | 63 | 50 | 32 | 53 | 2.55 | |
| HSK63A-ER32-150 | 177 | 145 | 119 | 2.70 | |||||
| HSK63A-ER40-80 | 112 | 80 | 54 | 63 | 40 | M20×2.0P | 2.65 | ||
| HSK63A-ER40-100 | 132 | 100 | 74 | 2.70 | |||||
| HSK63A-ER40-120 | 152 | 120 | 94 | 2.77 | |||||
| HSK63A-ER40-150 | 182 | 150 | 124 | 2.95 | |||||
| HSK63A-ER50-120 | 152 | 120 | 94 | 78 | 50 | M24×2.0P | 3.50 |
