CNC Woodworking HSK Tool Holder Hsk 63 Face Mill Arbor High Accuracy

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: HSK40,HSK50,HSK63,HSK100
Minimum Order Quantity: 10PCS
Price: USD10/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Accuracy: 0.005mm AppliCATEion: CNC Milling Machine
Clamping Range: 2-20mm Coating: TiN
Grip Range: 2-20mm Length: 63mm
Material: 20CrMnTi Product Name: HSK Tool Holder
Runout: 0.005mm Shank Diameter: 27mm
Size: HSK63 Surface Hardness: HRC60
Taper Angle: 90° Type: Collet Chuck
Weight: 1.1kg
High Light:

CNC Woodworking HSK Tool Holder


Face Mill Arbor High Accuracy


Tool Holder Hsk 63

CNC Woodworking HSK Face Mill Arbor for High Accuracy and Stability


CNC woodworking HSK face mill arbor is a tool used in CNC woodworking machines to hold and secure a face mill cutter. The HSK (Hohl Schaft Kegel) system is a type of tool holder system that provides high precision and rigidity, making it ideal for CNC appliCATEEions.

The face mill arbor is designed to securely hold the face mill cutter in place while it rotates and cuts through the wood. It typically has a tapered shank that fits into the spindle of the CNC machine, and a flange or collar that holds the face mill cutter in place.

The HSK face mill arbor is known for its excellent balance and stability, which helps to reduce vibrations and ensure smooth and accurate cutting. This is crucial in woodworking appliCATEEions where precision and quality are important.

Overall, the CNC woodworking HSK face mill arbor is a crucial tool in the CNC woodworking process, providing a secure and stable platform for the face mill cutter to perform its cutting operations.

Hsk 63 Tool Holder SpecifiCATEEions
1, Hsk Face Milling Cutter Material: 40Cr, 20CrMnTi
2. Type: FMA, FMB
3, Hsk Face Milling Holder Model: FMA25.4, FMA31.75, FMA38.1, FMA50.8
FMB22, FMB27, FMB32, FMB40,
4, Accuracy: 0.005mm
5, Hardness: 52-58HRC
6, Hsk Tool Holders Usage: For holding like shell mill cutters
7, Standard: MAS403BT, DIN69871, CATEE ANSI B5.50, DIN2080,
8, Surface; heat treament, sand blasting

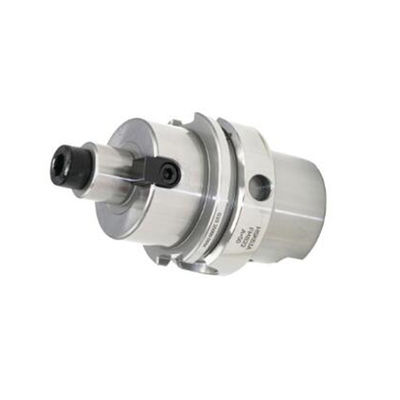

CNC Woodworking HSK Tool Holder Hsk 63 Face Mill Arbor High Accuracy 0
CNC Woodworking HSK Face Mill Arbor , Hsk Tool Holders Usage: For holding like shell mill cutters.used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining. Mechanical spindle and cutting tools and other accessories. High Precision HSK shank Tool Holder ,balanced G6.3 or G2.5 For choose.HSK Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly HSK30 HSK40 HSK50... Etc.. Mold industry, and high-speed engraving machine, used more.


Model d A L1 D
HSK50-FMB16-50 16 50 17 38
HSK50-FMB22-60 22 60 19 48
HSK50-FMB27-60 27 60 21 58
HSK50-FMB32-60 32 60 24 78
HSK63-FMB16-50 16 50 17 38
HSK63-FMB22-50 22 50 19 48
HSK63-FMB27-60 27 60 21 58
HSK63-FMB32-60 32 60 24 78
HSK63-FMB40-60 40 60 27 88
HSK63-FMB16-100 16 100 17 38
HSK63-FMB22-100 22 100 19 48
HSK63-FMB27-100 27 100 21 58
HSK63-FMB32-100 32 100 24 78
HSK63-FMB40-100 40 100 27 88
HSK80-FMB22-50 22 50 19 48
HSK80-FMB27-50 27 50 21 58
HSK80-FMB32-60 32 60 24 78
HSK80-FMB40-60 40 60 27 88
HSK100-FMB22-50 22 50 19 48
HSK100-FMB27-50 27 50 21 58
HSK100-FMB32-50 32 50 24 78
HSK100-FMB40-60 40 60 27 88
HSK100-FMB60-70 60 70 40 130
