ER Collet Chuck HSK Tool Holder For Drilling Milling Twisting And Tapping

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: HSK40,HSK50,HSK63,HSK100
Minimum Order Quantity: 10PCS
Price: USD10/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: CNC Machining Material: 20CrMnTi
Name: HSK Tool Holder Run-out: 0.003mm
Size: Standard Surface Treatment: Polishing
Tolerance: 0.005mm Type: HSK100 Tool Holder
Color: Silver Lead Time: 7-15 Days
MOQ: 1 Piece Packaging: Carton Box
Port: QINGDAO Taper: HSK
Weight: 1.2kg
High Light:

ER HSK Tool Holder


Collet Chuck HSK Tool Holder


ER Collet Chuck HSK

HSK ER Collet Chuck for Drilling, Milling, Twisting and Tapping cnc tool holder hsk tool holder


Tool holder specifiCATEEion

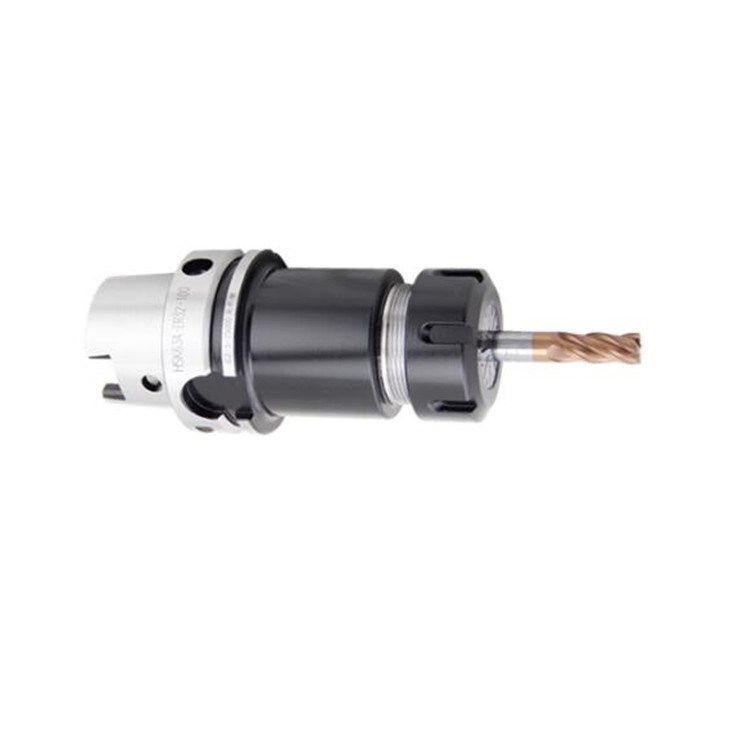

Precision HSK ER Collet CHUCK CNC tool holder, The unique double-layer positioning clamping mode is designed, the front and rear end stop of the thread is added, the rigidity of the handle is increased by 30%, the anti vibration knife has excellent dust-proof effect.It can be used for drilling, milling, twisting, tapping and other processing, with strong practicability and high cost performance.Please consult separately for customization of non-standard parts.


Hsk Collet Chuck Tool and handle matching
Attention should be paid to the matching of tool holder and tool, especially when selecting tapping tool holder, attention should be paid to the size of tap drive square head. In addition, choosing single-edge boring cutter on NC machine tool can avoid scratching workpiece during tool withdrawal, but attention should be paid to the position direction of tool tip relative to keyway on tool handle: some machine tools require the same orientation as keyway, while some machine tools require that the orientation of keyway be perpendicular to the orientation of keyway.

Hsk Er Collet Chuck Selection of High Efficiency and Compound Tool Holder
In order to improve the processing efficiency, high efficiency cutters and tool holders should be selected as far as possible. For example, the double-edged boring tool holder can be used for rough boring, which can not only improve the processing efficiency, but also help to reduce cutting vibration. The strong spring chuck can not only clamp the straight shank tool, but also clamp the Hole-Bearing tool through the connecting rod. For large batch and complex typical workpieces, composite cutting tools should be selected as far as possible. Although the price of composite cutting tools and tool holders is relatively expensive, the use of composite cutting tools in machining centers can combine multiple processes into one process and be completed by a single tool, which is conducive to reducing the processing time and the number of tool changes, and significantly improving production efficiency. For some special parts, special design of composite tool holder can also be considered.




Introduction to HSK tool holder:
1. The double-sided contact of the flange end face and the short cone part of the knife handle can contact and clamp the mechanical spindle at the same time, so as to ensure high rigidity.

2. The end face position in the spindle direction and the vertebral body in the aperture direction ensure the high repetition accuracy of the tool handle setting, which is suitable for high-precision machining.

3. The taper shank section is light and convenient for automatic tool change.

4. During high-speed rotation, the cone of the central control shape follows the expansion of the main shaft, which can maintain high precision.

5. Support high pressure coolant appliCATEEions.

6. After heat treatment of HSK taper handle, the hard cutting of the inner shoulder of the taper handle ensures: (1) pull down and lock the perfect concentricity of the shoulder (DIN standard 0.04); (2) Excellent runout accuracy; (3) Excellent spindle locking force; (4) Excellent radial rigidity.

7. After the heat treatment of HSK taper handle, the hard cutting of the contact surface between the taper handle and the main shaft ensures: (1) the safety of tool change; (2) Extend the life cycle of the claw.

8. All tool handles are precisely dynamically balanced to g2.5 25000rpm to ensure: (1) fast and stable operation of machine tool spindle; (2) Prolong the life cycle of spindle; (3) Improve tool life; (4) Higher surface processing quality.

Model No L L1 L2 D(h10) d1 d2 d3(MAX) T KGS
HSK63A-ER16-80 112 80 54 63 28 16 53 M10×1.5P 1.50
HSK63A-ER16-100 132 100 74           1.55
HSK63A-ER16-120 152 120 94           1.70
HSK63A-ER20-80 112 80 54   34 20   M12×1.75P 1.60
HSK63A-ER20-100 132 100 74           1.70
HSK63A-ER20-120 152 120 94           1.60
HSK63A-ER25-80 112 80 54   42 25   M16×2.0P 1.70
HSK63A-ER25-100 132 100 74           1.80
HSK63A-ER25-120 152 120 94           2.00
HSK63A-ER25-150 182 150 124           2.30
HSK63A-ER32-80 112 80 54   50 32     2.50
HSK63A-ER32-100 132 100 74 63 50 32 53   2.55
HSK63A-ER32-150 177 145 119           2.70
HSK63A-ER40-80 112 80 54   63 40   M20×2.0P 2.65
HSK63A-ER40-100 132 100 74           2.70
HSK63A-ER40-120 152 120 94           2.77
HSK63A-ER40-150 182 150 124           2.95
HSK63A-ER50-120 152 120 94   78 50   M24×2.0P 3.50
