| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | LATHE Machining | Brand: | SK SHANK |
|---|---|---|---|
| Coating: | TiN | Color: | Silver |
| Coolant Through: | Yes | Heat Treatment: | Yes |
| Material: | 20CrMnTi | Packaging Type: | Box |
| Product Name: | SK40 Tool Holder | Surface Finish: | Polished |
| Tolerance: | High Precision | Usage: | LATHE |
| Size: | SK40 B18 | Weight: | 1.2 |
| High Light: | SK40 Drill Chuck Arbors,SK Shank Clamping Tools,Drill Chuck Arbors SK40 |
||

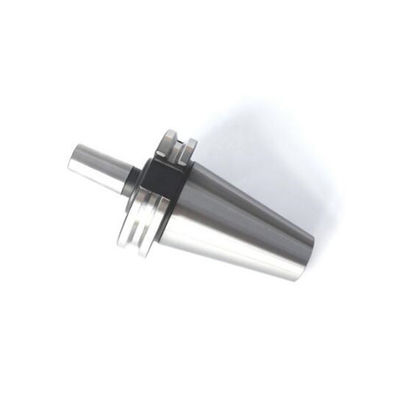

SK40 Drill Chuck Arbors for Drilling Machine SK tool shank clamping tools
drill chuck arbor is a device that is used to attach a drill chuck to the spindle of a drill press or milling machine. It is typically a cylindrical shaft with a tapered end that fits into the spindle of the machine, and a threaded end that allows the drill chuck to be screwed onto it. The arbor ensures a secure and stable connection between the drill chuck and the machine, allowing for accurate drilling or milling operations.
clamping tools SK Drill Chuck Arbor,For different parts and machine tools, different assembly schemes can be adopted to obtain a variety of tool shank series, thus improving the adaptability and utilization of tool shank. The working part of the clamping tool of the integral tool holder is integrated with the handle used for fixing and positioning on the machine tool. This kind of tool holder has poor adaptability to the transformation of machine tools and parts. In order to adapt to the transformation of parts and machine tools, users must store various specifiCATEEions of tool holders, so the utilization rate of tool holders is low. Modular cutting tool system is an advanced cutting tool system. Each tool handle can be assembled by a variety of serialized modules.
SK Drill Chuck Arbor SpecifiCATEEions
1.SK Drill Chuck Arbor Material:20CrMnTi
2.SK Drill Chuck Arbor Harded:HRC58-62
3.Run out is less than 0.005mm
4.SK Drill Chuck Arbor Tool holders arranges cover BT30/40/50,CATEE30/40/50,DIN69871A30,40,50
5.Three kinds of cooling A:without cooling supply AD:central cooling supply AD/B:central cooling supply and with inernal coolant through the collar
6.SK Drill Chuck Arbor Balanced tool holder available G6.3=12000rpm G2.5=20000rpm
7.SK Drill Chuck Arbor Usage:for clamping tools with Morse taper shank and thread according to DIN 228-1 form A.
| MODEL | L | D | d1 | d2 | T |
| SK30-B16-40 | 111.8 | 50 | 15.73 | 45 | M12*1.75P |
| SK30-JT6-40 | 111.8 | 17.17 | |||
| SK40-B12-40 | 126.9 | 63.55 | 12.07 | 50 | M16*2.0P |
| SK40-B16-40 | 132.4 | 15.73 | |||
| SK40-B18-40 | 140.4 | 17.78 | |||
| SK40-JT6-40 | 132.4 | 17.17 | |||
| SK50-B12-40 | 160.3 | 97.5 | 12.07 | 80 | M24*3.0P |
| SK50-B16-40 | 165.8 | 15.73 | |||
| SK50-B18-40 | 173.8 | 17.78 | |||
| SK50-JT6-40 | 165.8 | 17.17 |
SK drill chuck arbor is a tool used to connect a drill chuck to a milling machine or other machining equipment. It is designed to fit into the spindle of the machine and securely hold the drill chuck in place. The SK in the name refers to the type of taper used in the arbor, which is a popular standard in the machining industry. The drill chuck arbor allows for quick and easy tool changes, allowing operators to switch between different sizes of drill chucks as needed for their machining operations.
Material:20CrMnTi
Harded:HRC58-62
Run out is less than 0.005mm
Tool holders arranges cover BT30/40/50,CATEE30/40/50,DIN69871A30,40,50
Three kinds of cooling A:without cooling supply AD:central cooling supply AD/B:central cooling supply and with inernal coolant through the collar
Balanced tool holder available G6.3=12000rpm G2.5=20000rpm
