| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | ER8,ER11,ER16,ER20,ER25,ER32,ER40,ER50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 1/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/MONTH |
| Accuracy: | 0.008mm | Clamping Range: | 1-26mm |
|---|---|---|---|
| Color: | Silver | Grip Range: | 1-26mm |
| Hardness: | HRC50-52 | Material: | 65MN |
| Package: | Plastic Box | Runout Off: | 0.005mm |
| Size: | ER11, ER16, ER20, ER25, ER32, ER40 | Surface Roughness: | Ra0.8 |
| Surface Treatment: | Oxidation | Taper: | 0.005mm |
| Type: | ER Collet | Weight: | 0.04kg |
| High Light: | Oxidation Sealed ER Collet,HRC50 ER Spring Collet,Sealed ER Collet HRC50 |
||

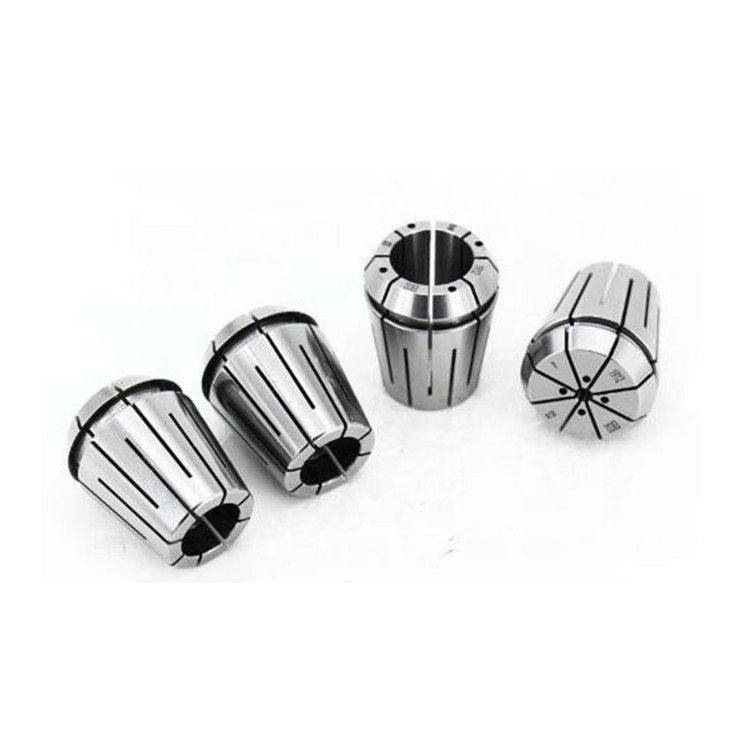

Precision Spring ER Collet ER Sealed Collet CNC ER sealed collet spring collet
Precision Spring ER Collet ER Sealed Collet ,ER Sealed Collet Hardness: 46-50HRC,Precision collet is the most widely used clamping tool in the world.ER Sealed Collet Made from Alloy spring steel and fully hardened,the ER Sealed Collet are ideal for many machining appliCATEEions including boring, milling tool holder, reaming, tapping and grinding.
1. ER Sealed Collet Material: 65MN
2. ER Sealed Collet Hardness: 46-50HRC;
3. Spring Collet The use of groove differences, to achieve the surrounding water, only the center of the water function;
4 can withstand water pressure 7Mpa;
5. Din6499 Collet Non-standard hole can be customized;
6.20 slot design to increase the number of elastic groove, shrinkage of 0.5mm, clamping force increases to increase the sealing;
7. Precision Collet Provide two kinds of appearance: light decoration or coating treatment;
CNC ER sealed collet spring collet ,ER Sealed Collet All products are precision grinding, in line with the German DIN 6499 specifiCATEEions precision manufacturing. We supply all kinds of ER collets and We also can design and manufacture non-standard size of products.With high quality and reasonable price ,we are confident to give you our best services.
ER COOLANT SEALING COLLET
1.ER Collet Material: 65Mn
2.ER Sealed Collet hardness: 46-50HRC
3.SPRING ER Collet Type: ER11, ER16, ER20, ER25, ER32, ER40, ER50
4.ER Sealed Collet precision: 0.008mm
ER COOLANT SEALING COLLET uses the difference of the groove to achieve the function of surrounding waterstop, only the central water outlet, and is suitable for clamping the tool of the water outlet hole. The ordinary ER collet groove is a through groove, which does not play the role of waterstop
| Model | D | L | Clamping Range | Wt(KG) |
| ERS16 | 17 | 27.5 | 3-10 | 0.03 |
| ERS20 | 21 | 31.5 | 3-13 | 0.04 |
| ERS25 | 26 | 34 | 3-16 | 0.06 |
| ERS32 | 33 | 40 | 3-20 | 0.1 |
| ERS40 | 41 | 46 | 3-26 | 0.25 |
CNC ER sealed collet spring collet is a type of collet used in CNC machining. It is designed to securely hold a tool or workpiece in place during machining operations. The "ER" in the name refers to the standard ER collet system, which is widely used in the industry.
The "sealed" aspect of the collet means that it is designed to prevent the entry of coolant or other fluids into the collet, which can cause corrosion or damage to the collet and affect its performance. This is particularly important in CNC machining where coolant is often used to cool and lubriCATEEe the cutting tool.
The spring collet refers to the mechanism inside the collet that provides the gripping force. The collet has multiple slits along its length, and when a tool or workpiece is inserted, the collet compresses slightly, gripping the tool or workpiece tightly. The spring collet allows for a quick and easy tool change, as the collet can be opened and closed by simply tightening or loosening a nut.
Overall, the CNC ER sealed collet spring collet is a reliable and efficient tool holding solution for CNC machining, providing a secure grip on the tool or workpiece while preventing fluid contamination.
