| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | C20,C25,C32 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 1/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/MONTH |
| Accuracy: | 0.01mm | AppliCATEion: | CNC Machine |
|---|---|---|---|
| Clamping Range: | 3-32mm | Color: | Silver |
| Hardness: | HRC44-48 | Material: | 65Mn |
| Package: | Plastic Box | Run-out: | 0.01mm |
| Size: | C20 | Surface Roughness: | Ra0.4 |
| Surface Treatment: | Oxide | Tolerance: | 0.005mm |
| Type: | Straight Collet | Weight: | 0.05kg |
| High Light: | Straight Shank ER Collet,HRC44 ER Collet |
||

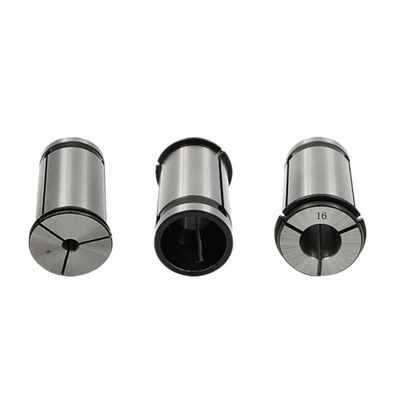

ER Straight Shank Collet 65Mn Alloy Spring Steel C20 C25 C32 HRC44-48
Straight Shank Collet for cnc lathe machine, Straight Shank Collet Material: 65Mn alloy spring steel ,Straight Collet also known as spring collet, is mounted on a drill milling machine, drilling and milling chuck, its function is to clamp drill cutter or knife. Er flexible collet is currently the most used. Its stable performance, high accuracy by the majority of manufacturers trust. All products are precision grinding.
Precision Collet SpecifiCATEEion
1 .Straight Shank Collet Material: 65Mn alloy spring steel
2. Straight Spring Collet modle No.:C20,C25,C32
3. Straight Collet Hardness: HRC44-48
4. Straight Milling Collets Progress steps 1mm or 1/64"
5. Are 6 ditch way in front and back
6. Sincerely service
Straight Collet Strong type CNC Milling chucks for super heavy cutting use,
High gripping force.
straight shank collet is a type of collet that is used to hold and secure tools in place during machining operations. It consists of a cylindrical body with a straight shank that fits into the spindle of a machine tool. The collet has a tapered inner surface that expands when a nut is tightened, gripping the tool tightly and preventing it from slipping or moving during operation. Straight shank collets are commonly used in milling machines, lathes, and other machining equipment. They are available in various sizes to accommodate different tool diameters.
| Model | D | d | L |
| SC16 | 16 | 3.4.5.6.8.10.12 | 45 |
| SC20 | 20 | 3.4.5.6.8.10.12.14.16 | 50 |
| SC22 | 22 | 3.4.5.6.8.10.12.14.16 | 50 |
| SC25 | 25 | 3.4.5.6.8.10.12.14.16.18.20 | 60 |
| SC32 | 32 | 3.4.5.6.8.10.12.14.16.18.20.25 | 65 |
| SC40 | 40 | 6.8.10.12.14.16.18.20.25.28.30.32 | 80 |
| SC42 | 42 | 3.4.5.6.8.10.12.14.16.18.20.22.24.25.28.30.32 | 80 |
CNC straight collet is a type of collet used in CNC machining. It is a cylindrical device that is used to hold and secure a workpiece or tool in place during machining operations. The collet is inserted into the spindle of the CNC machine and tightened to grip the workpiece or tool.
Straight collets are typically used for holding cylindrical workpieces or tools with a straight shank. They come in various sizes to accommodate different diameters of workpieces or tools. The collet is designed with a tapered shape that allows for a secure grip on the workpiece or tool.
CNC straight collets are commonly used in industries such as automotive, aerospace, and manufacturing, where precision and accuracy are crucial. They provide a reliable and efficient way to hold and position workpieces or tools during CNC machining operations.
C25 clamping Straight Collet can be divided into A, AA and AAA according to its accuracy. The accuracy of Class A is less than 0.015 mm.
The accuracy of AA is less than 0.008mm, and that of AAA is less than 0.005mm.
