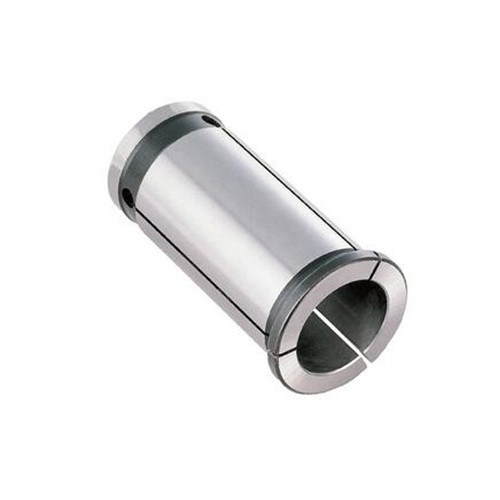

Precision Spring Lathe Milling Chuck Collet C25 Series Straight

Precision Spring Straight Collet Lathe Milling Chuck C25 Straight Milling Collets Series

CNC collet straight shank power collet chuck is widely used in various fields of mechanical processing clamping. It is a kind of clamp, which connects the tool handle with the NC tool. Straight Shank Collet can clamp cutters of 6mm-20mm diameter. It is used in combination with a powerful tool handle. It is required that the tool shank should be able to clamp the tool on the machine with high precision, and maintain high precision clamping state in the process of machining. Precision Collet can be divided into A, AA and AAA according to its accuracy. Straight Collet The accuracy of Class A is less than 0.015 mm.The accuracy of AA is less than 0.008mm, and that of AAA is less than 0.005mm.

C25 Straight Milling Collets series is made of 65CrMnTi, which has good elasticity, wear resistance and stable performance after heat treatment. The clamping force is large, the accuracy is high, and the clamping stability is good. Straight Collet Mainly used for drilling, milling, reaming, tapping and grinding tool holder use. The design of spring steel strip groove is adopted in the strong cylinder clamp, which allows a large clamping range and has a good radial runout error. Different types of cylinders clamp different types of cutters. Straight Collet is widely used in various fields of mechanical processing clamping. It is a kind of clamp, which connects the tool handle with the NC tool. Straight Spring Collet cylinder clamp can clamp cutters of 6mm-20mm diameter. It is used in combination with a powerful tool handle. It is required that the tool shank should be able to clamp the tool on the machine with high precision, and maintain high precision clamping state in the process of machining.

C25 clamping Straight Collet can be divided into A, AA and AAA according to its accuracy. The accuracy of Class A is less than 0.015 mm.

The accuracy of AA is less than 0.008mm, and that of AAA is less than 0.005mm.

C25 clamping Straight Collet series is made of 65CrMnTi, which has good elasticity, wear resistance and stable performance after heat treatment. The clamping force is large, the accuracy is high, and the clamping stability is good. Mainly used for drilling, milling, reaming, tapping and grinding tool holder use. The design of spring steel strip groove is adopted in the strong cylinder clamp, which allows a large clamping range and has a good radial runout error. Different types of cylinders clamp different types of cutters.
