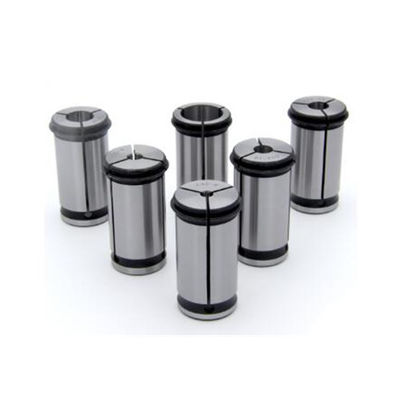

C25 Straight Shank Er Collet Holder 46-50HRC

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: C20,C25,C32
Minimum Order Quantity: 10PCS
Price: USD 1/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Accuracy: High Clamping Range: 3-32mm
Hardness: HRC44-48 Material: 65MN
Package: Plastic Box Runout Off: 0.005mm
Size: C20,C25,C32 Type: Cnc Collet
Weight: 0.04kg AppliCATEion: CNC Machine
Clamping Force: Strong Name: Straight Collet
High Light:

C25 Straight Shank Er Collet Holder

,

46HRC Straight Shank Er Collet Holder

High Quality Straight Collet C25 COLLET,Straight Collet 46-50HRC



High Quality Straight collet C25 COLLET,Straight Collet 46-50HRC, Straight Collet also known as spring collet, is mounted on a drill milling machine, drilling and milling chuck, its function is to clamp drill cutter or knife. Er flexible collet is currently the most used. Precision collet Its stable performance, high accuracy by the majority of manufacturers trust. All products are precision grinding.


High Speed, High Precision and Long Life Straight Collet Tool Series


1. Straight Collet Material: 65Mn


2.Spring Collet 46-50HRC;


3. Precision Collet Two kinds of appearance can be provided: polishing or coating treatment;


4. Straight Shank Collet,The inner hole, the outer circle and the end face are grinded many times, reaching Ra0.4, which has a mirror effect.


5. Surface "environmental protection" special coating treatment, improve surface hardness, wear resistance, improve cleanliness, more stable accuracy, smoother surface, better anti-rust, anti-corrosion effect, feel more comfortable, appearance more beautiful.


Cryogenic treatment


6. Straight Spring Collet Ultra-long cryogenic treatment at - 196 C transforms nearly all residual austenite into martensite.


7. Precipitated nano-carbide particles increase hardness and toughness.


8. Reduce residual stress;


9. The wear resistance is improved remarkably.


10. Straight Milling Collets Removal of residual internal stress during grinding by over 100 h super-long heat aging.





Model D d L
SC16 16 3.4.5.6.8.10.12 45
SC20 20 3.4.5.6.8.10.12.14.16 50
SC22 22 3.4.5.6.8.10.12.14.16 50
SC25 25 3.4.5.6.8.10.12.14.16.18.20 60
SC32 32 3.4.5.6.8.10.12.14.16.18.20.25 65
SC40 40 6.8.10.12.14.16.18.20.25.28.30.32 80
SC42 42 3.4.5.6.8.10.12.14.16.18.20.22.24.25.28.30.32 80



straight collet C25 collet is a type of collet used in machining operations. It is designed to hold and secure a cylindrical workpiece or tool in a machine spindle. The C25 designation refers to the size and type of collet, with C25 indiCATEEing a collet with a 25mm diameter capacity.

Straight collets are typically used in milling machines, lathes, and other machining equipment to securely hold round workpieces or tools. They are often used in conjunction with a collet chuck or spindle nose to provide a precise and rigid clamping mechanism.

C25 collets are commonly used in various industries, including automotive, aerospace, and general manufacturing. They are available in a range of sizes to accommodate different workpiece diameters.

When using a C25 collet, it is important to ensure that the collet is properly tightened to prevent slippage or movement during machining operations. It is also essential to select the correct collet size for the specific workpiece or tool being used to ensure a proper fit and secure hold.





C25 Straight Shank Er Collet Holder 46-50HRC 0
