| Place of Origin: | CHINA |
|---|---|
| Brand Name: | qfmh |
| Model Number: | 6mm,10mm,13mm,16mm |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 5/PCS |
| Packaging Details: | CARTON |
| Delivery Time: | 3DAYS |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 10000PCS/MONTH |
| Chuck Type: | Keyless | Color: | Black |
|---|---|---|---|
| Jaw Type: | 3-Jaw | Material: | Steel |
| Mount Type: | Threaded | Package: | Carton Box |
| Product Name: | Drill Chuck | Thread Size: | 1/2-20 |
| Milling Cutter Type: | Milling | ||
| High Light: | 16mm Keyless Drill Chuck,1mm Keyless Drill Chuck,Taper Mounted 10mm Drill Chuck |
||

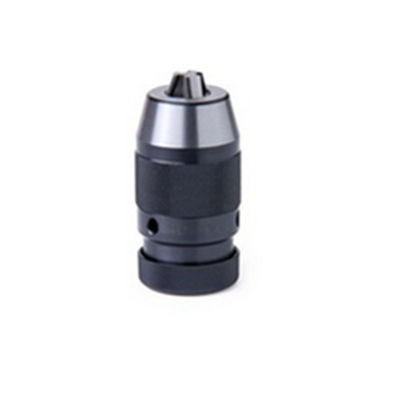

Keyless Drill Chuck, High Accuracy, Light/Heavy Duty, Thread/Taper Mounted, 1mm-16mm
Taper Mounted Keyless Drill Chuck,Chuck is connected with the tool, Keyless Drill Chuck is used to clamp the handle type tool accessories. The drill and connection with threaded connections and taper connection in two ways. According to the specifiCATEEions of the chuck now, Keyless Drill Chuck specifiCATEEions of the main thread of the 3/8-24UNF, 1/2-20UNF, 5/8-16UN, M12 * 1.25. Taper hole connection are mainly B10, B12, B16, B18, B22 and JT0, JT2, JT3, JT6, JT10, JT33 and other specifiCATEEions. Keyless Drill Chuck Threaded connection is mainly used for electric drill, drilling machine is mainly used for connecting taper hole.
Lathe Keyless Drill Chuck SpecifiCATEEions
1.Keyless Drill Chuck Material : 45 steel /Stainless steel
2. High accuracy Keyless Drill Chuck
3. Automatic Keyless Drill Chuck
4. light duty or heavy duty.
5. taper mounted or thread mounted.
6. Keyless Drill Chuck Rang offer from 1mm-16mm
7. Keyless Drill Chuck Max.10.000 RPM without further balance
8. Integrated Keyless Drill Chuck Precision reach 0.02mm to 0.03mm
9. separate drill chuck or integrated drill chuck
Straight shank drill chuck is one of the drill chuck for machine tool accessories. Integrated Keyless Drill Chuck ,It is widely used in machine manufacturing, high precision drilling machine and other processing technologies that require high drilling accuracy. Straight Shank Drill Chuck, It can be installed on lathes, milling machines and drilling machines.Keyless Drill Chuck Prices are higher than light spanner chucks, heavy spanner chucks and hand-tight drill chuck.
High Precision Keyless Drill Chucks,There are 7 types of straight shank drill chuck commonly used. Titanium alloy 20CrMnTi is used for wear resistance and durability. The hardness of the tool handle is 58-60 degrees and the accuracy is 0.005 mm.
Advantages of straight shank drill chuck: Wear-resistant chuck is adopted in structure, which solves the problem of high precision and high speed machining. It can clamp the bit with the clamping force needed while drilling, and produce obvious high strength clamping force, thus preventing the bit from slipping. Taper hole can be used with various specifiCATEEions of drill tool holder.
| Model | Clamping Capacity mm | Size D1 mm |
| 6mm | 0.5-6 | 3/8-24UNF |
| 10mm | 1-10 | 1/2-20UNF |
| 10mm | 1-10 | 3/8-24UNF |
| 13mm | 1-13 | 1/2-20UNF |
| 13mm | 1-13 | 3/8-24UNF |
| 16mm | 3-16 | 5/8-16UNF |
keyless drill chuck is a type of chuck that does not require a key to tighten or loosen the jaws. It is designed to be operated by hand, allowing for quick and easy bit changes without the need for additional tools. Keyless drill chucks typically have a collar or sleeve that can be rotated to tighten or loosen the jaws, providing a secure grip on the drill bit. They are commonly used in power drills and other handheld power tools.
13mm keyless drill chuck is a type of chuck that is used to hold drill bits in place on a drill. The keyless feature means that it does not require a key or wrench to tighten or loosen the chuck. The 13mm measurement refers to the maximum diameter of the drill bit that the chuck can accommodate. This type of chuck is commonly used in power drills and is popular for its convenience and ease of use.
