| Place of Origin: | CHINA |
|---|---|
| Brand Name: | qfmh |
| Model Number: | 6mm,10mm,13mm,16mm |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 5/PCS |
| Packaging Details: | CARTON |
| Delivery Time: | 3DAYS |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 10000PCS/MONTH |
| Chuck Type: | Keyless | Color: | Black |
|---|---|---|---|
| Jaw Type: | 3-Jaw | Material: | Steel |
| Mount Type: | Threaded | Package: | Carton Box |
| Product Name: | Drill Chuck | Thread Size: | 1/2-20 |
| Milling Cutter Type: | Milling | ||
| High Light: | Threaded Mount JT33 Chuck Key,JT33 Chuck Key 16mm,16mm Chuck Key |
||

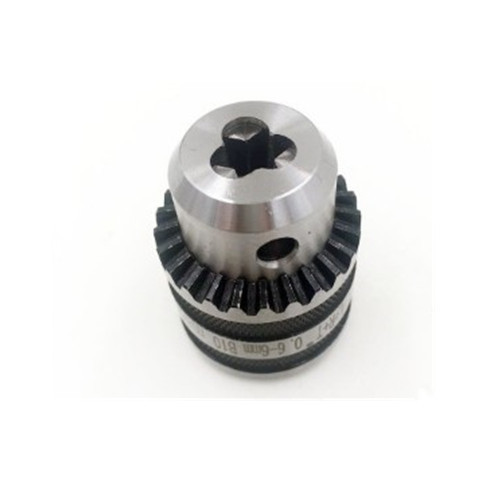

Key type drill chuck with heavy duty Taper Hole Connection B10-B22 & JT0-JT33 Key Type Drill Chuck
Key type drill chuck with heavy duty ,Drill chuck is connected with the tool, is used to clamp the handle type tool accessories. There are two connection ways: threaded connections and taper connection. According to the specifiCATEEions of the chuck now, specifiCATEEions of the main thread of the 3/8-24UNF, 1/2-20UNF, 5/8-16UN, M12 * 1.25. Taper hole connection are mainly B10, B12, B16, B18, B22 and JT0, JT2, JT3, JT6, JT10, JT33 and other specifiCATEEions. Threaded connection is mainly used for electric drill, drilling machine is mainly used for connecting taper hole.
Key Type Drill Chuck SpecifiCATEEions
1. light duty or heavy duty.
2. taper mounted or thread mounted.
3. Rang offer from 1mm-16mm
4. Max.10.000 RPM without further balance
5. Precision reach 0.02mm to 0.03mm
6. separate drill chuck or integrated drill chuck
Keytype Drill Chuck AppliCATEEion:
Recommended for light, medium and heavy-duty portable bench or floor mounted power tiils
Drill Chuck Features:
1. High precision threaded and tapered tightly mounts on the tools.
2. Sleeve, key hole and key are shaped by quenching.
3. Jaws are specifically engineered for tight tolerance production drilling.
4. Sleeve teeth and key holesare are shaped by cold pressing.
5. Super precision and durable.
| 1. Thread Mount: Unf. Metric | |||
| Model | Capacity | Mount | |
| mm | Inch | ||
| J3110M | 1.0-10 | 1/32-3/8 | 3/8-24UNF |
| J3110M | 1.0-10 | 1/32-3/8 | 1/2-20UNF |
| J3113M | 1.0-13 | 1/32-1/2 | 1/2-20UNF |
| 2. Moese Taper Mount | |||
| Model | Capacity | Mount | |
| mm | Inch | ||
| J2110H | 1.0-10 | 1/32-3/8 | B12 |
| J2113H | 1.0-13 | 1/32-1/2 | B16 |
| J2516M | 3.0-16 | 1/8-5/8 | B16 |
| J2516M | 3.0-16 | 1/8-5/8 | B18 |
| J2116H | 1.0-16 | 1/32-5/8 | B16 |
| J2116H | 1.0-16 | 1/32-5/8 | B18 |
| J2120H | 5.0-20 | 3/16-3/4 | B22 |
| 3. Jacquard Taper Mount | |||
| Model | Capacity | Mount | |
| mm | Inch | ||
| J2210H | 1.0-10 | 1/32-3/8 | JT2 |
| J2213H | 1.0-13 | 1/32-1/2 | JT33 |
| J2213H | 1.0-13 | 1/32-1/2 | JT6 |
| J2616M | 3.0-16 | 1/8-5/8 | JT3 |
| J2616M | 3.0-16 | 1/8-5/8 | JT33 |
| J2616M | 3.0-16 | 1/8-5/8 | JT6 |
| J2216AH | 1.0-16 | 1/32-5/8 | JT3 |
| J2220 | 5.0-20 | 3/16-3/4 | JT3 |
taper hole connection B10-B22 key type drill chuck is a type of chuck used in drilling machines. It has a taper hole connection with a size range from B10 to B22, which refers to the diameter of the taper hole. The chuck also has a key type design, meaning it requires a chuck key to tighten and loosen the jaws of the chuck. This type of drill chuck is commonly used in various drilling appliCATEEions where a secure and precise grip on the drill bit is required.
