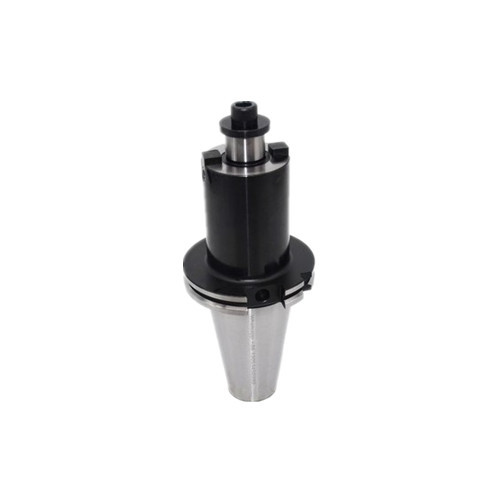

SK40 Face Mill Arbor Balanced G6.3 Or G2.5 Face Milling CNC Tool Holder

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: SK30,SK40,SK50
Minimum Order Quantity: 10PCS
Price: USD 10/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Product Name: SK ToolHolder Size: Milling
Type: SK AppliCATEion: Milling
Hardness: HRC56-58 Material: 20CrMnTi
Name: SK ToolHolder Processing Type: CNC Machining
Tolerance: 0.005mm
High Light:

SK40 Face Mill Arbor


Face Mill Arbor Balanced G6.3


G2.5 Face Milling CNC Tool Holder

SK40 Face Mill Tool Holder Arbors, Balanced G6.3 or G2.5 face milling cutter face mill tool cnc tool holder


DIN69871 SK30 SK40 SK50 Face Mill Tool Holder Arbors, SK Face Milling Holder such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.SK Face Milling Holder High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose. . SK Face milling holder face milling cutter with SK shank is used in the clamping of the cutter with the radial drive groove,


1. SK Face milling holder Material: 20CrMnTi
2. SK Face milling holder Hardness: HRC56-58
3. SK Face milling holder Type: SK40/50 ER Collet Chuck
4. SK Face milling holder Standard: DIN69871
5. SK Face milling holder Dynamic Balance: G6.3/2.5




SK Face Milling Holder


DIN69871 SK face mill tool holder arbors are a type of tool holder used in milling machines. They are designed to hold face mill cutters securely in place during machining operations. The DIN69871 standard ensures compatibility and interchangeability between different tool holders and milling machines.

The SK designation refers to the type of taper used in the tool holder. SK tapers are commonly used in Europe and have a steep taper angle of 1:10. This taper design provides a strong and rigid connection between the tool holder and the milling machine spindle, allowing for high precision and stability during milling operations.

The face mill tool holder arbors have a flange at one end that holds the face mill cutter in place. The opposite end of the arbor is tapered to fit into the milling machine spindle. The arbor also has a threaded hole for a drawbar or a retention knob to secure it tightly in the spindle.

DIN69871 SK face mill tool holder arbors are available in various sizes and lengths to accommodate different face mill cutters and milling machine spindles. They are commonly used in industries such as automotive, aerospace, and general machining for a wide range of milling appliCATEEions.


Model d1 d2 d3 L1 L2 L3 L Locking screw
for cutter
Washer Weight
SK30- FMB22-35 22 26 47 35 18 14 100.8 E100U300


FMB27-35 27 33 58 35 20 16 102.8 E120U300 FM-1 1.00
SK40- FMB22-35 22 26 47 35 18 14 121.4 E100U300


FMB27-60 27 33 58 60 20 16 148.4 E120U300 FM-1 1.86
FMB32-60 32 40 66 60 22 16 150.4 E160U350 FM-1 2.32
FMB40-60 40 50 82 60 25 20.5 153.4 E160U351 FM-1 2.47
SK50- FMB22-35 22 26 47 35 18 14 154.75 E100U300


FMB27-35 27 33 58 35 20 16 156.75 E120U300 FM-1 3.79
FMB32-35 32 40 66 35 22 16 158.75 E160Z350-4.0


FMB40-50 40 50 82 50 25 20.5 189.75 E160Z350-5.0


FMB60F-70 60


129 70 40


211.75 E160ZU500
