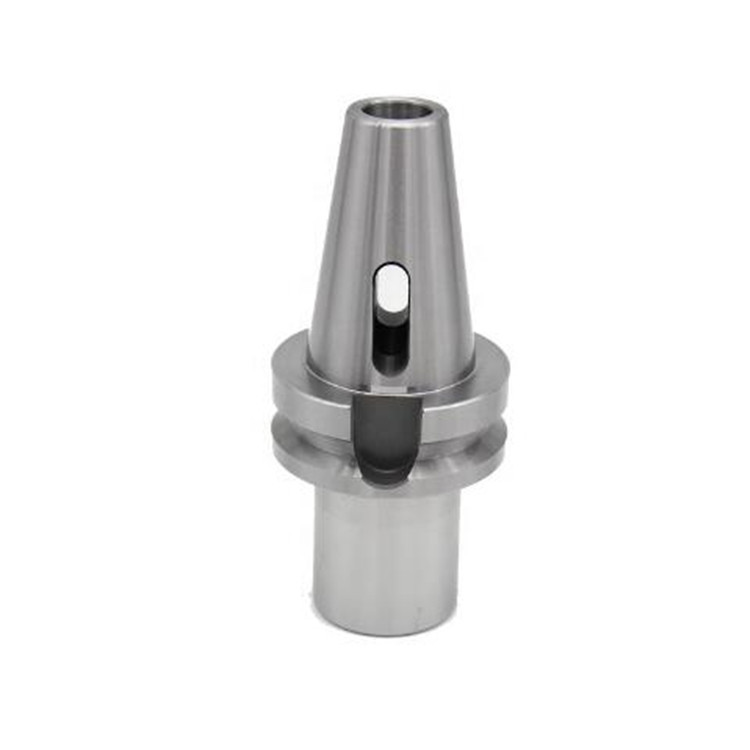

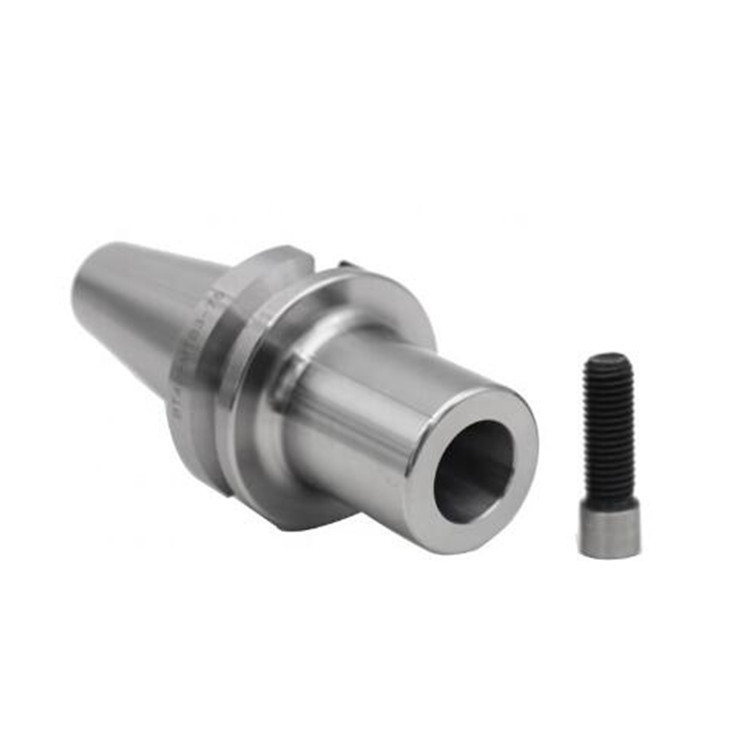

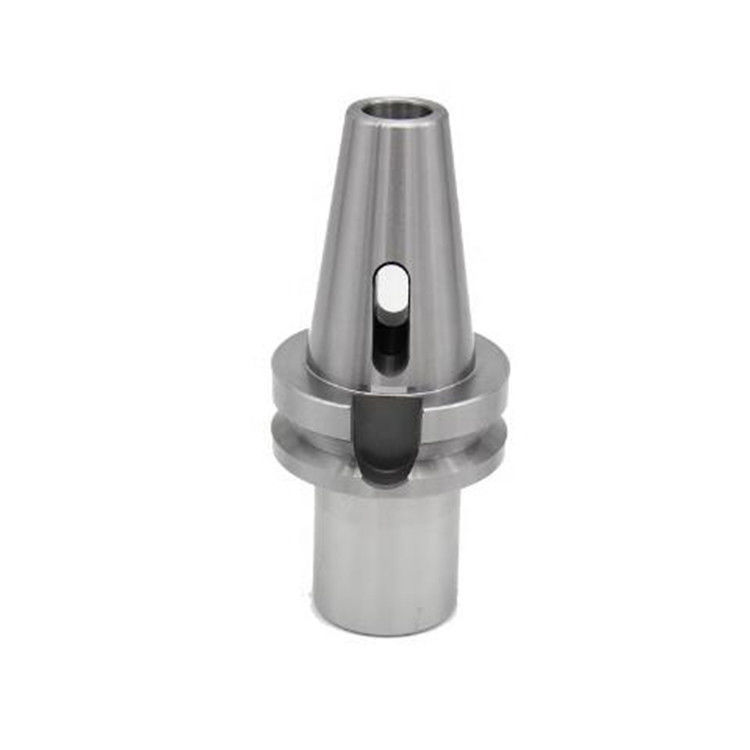

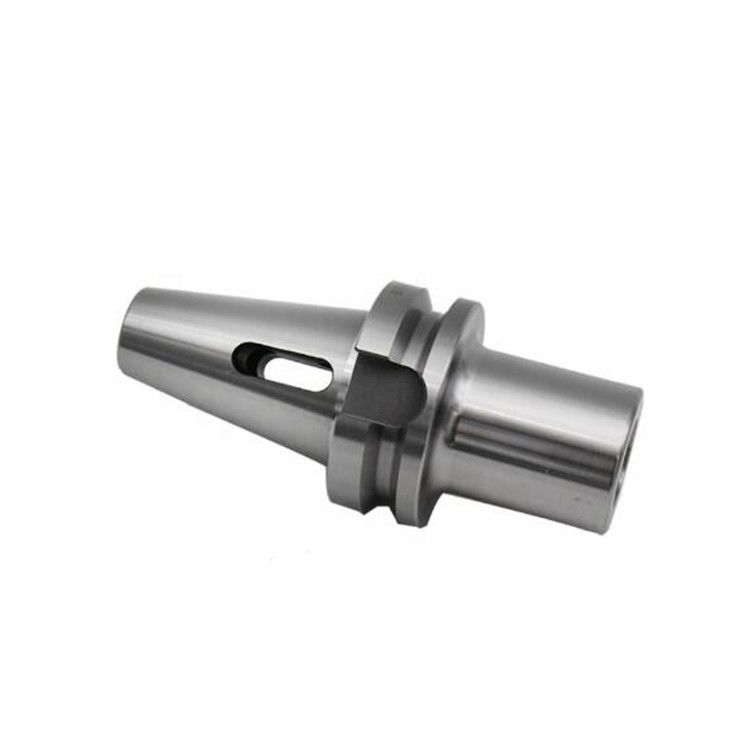

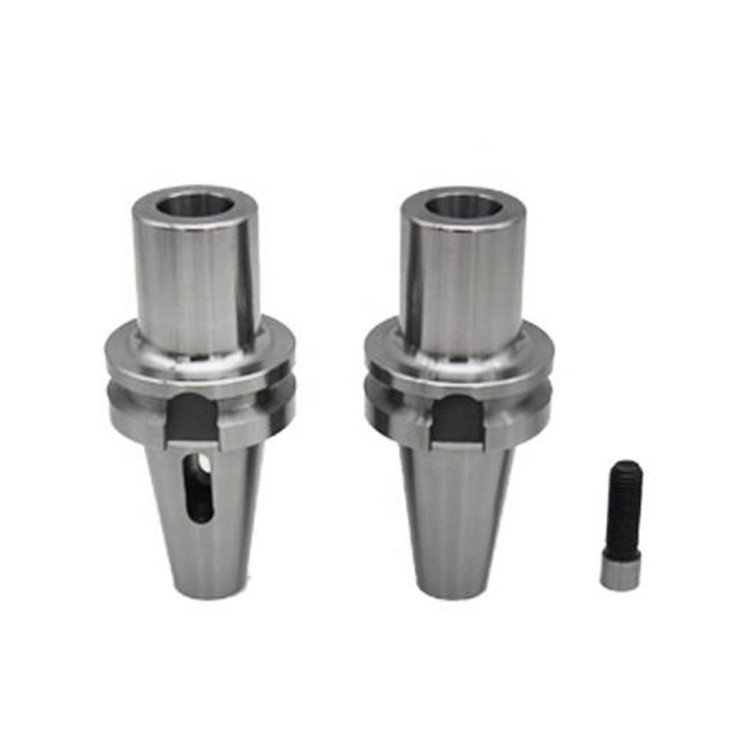

BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang

BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang
BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang
BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang
Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: BT30,BT40,BT50
Minimum Order Quantity: 10PCS
Price: USD 9/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Contact Now
AppliCATEion: CNC MILLING Machining Cutting Direction: Right Hand
Cutting Edge Angle: 90° Flute Length: 50mm
Material: 20CrMnTi Number Of Flutes: 2
Overall Length: 63mm Package: Plastic Box
Product Name: Morse Taper Adapter Shank Diameter: 15mm
Shank Type: Morse Taper Shank Size: BT30
Model: MTA4 Weight: 1.2
Highlight:

Precision BT Morse Taper Sleeve

,

Morse Taper Sleeve with Tang

,

BT30 Morse Taper Adapter Sleeve

Machine Tools Precision BT Morse Taper Sleeve with Tang BT Morse Taper Adapter Sleeve



BT MORSE TAPER ADAPTER Tool Holder ,BT Morse Taper Adapter ,BT tool holders use metric thread pull stud. We have G6.3 rpm 12000-16000 and G2.5 rpm 18000-25000.Tool pack , please lock the handle with sword and lock screw .BT Morse Taper Adapter ,Removing tool , first relax tensed screw 2-3laps , and then on his sword first part of the handle witha hammer to knock zhi, relax after contact, and loosening Screw m remove the tool, Can do dynamic balance test G6.3 G2.5.

BT Morse Taper Adapter Type: BT-MTA, MTB...
BT Morse Taper Adapter Material: Alloy steel
BT Morse Taper Adapter Use on milling and drilling
Hardness: HRC56-62°
BT Morse Taper Adapter Taper tolerance:<AT3
Carbon depth: 0.8mm±0.2mm
Surface Roughness: Ra<0.005mm
Max run out: <0.005mm
BT Morse Taper Adapter Shank body standard: MAS 403 and B6339
Pre-balanced by design (8000rpm/G6.3), Through tool holder coolant capability
Fine balancing can be customed on demand (12000rpm/G6.3, 25000rmp/G2.5)
With through hole for internal and flange coolant (AD/B) design can be customed on demand

Shank of the Morse Taper Collet chuck MTA1/MTA2/MTA3/MTA4/MTA5

MTB1/MTB2/MTB3/MTB4/MTB5

AppliCATEEion: Suitable for clamping DIN228-1A with flat tail Mo's tool

BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang 0

Machine Tools Precision BT Morse Taper Sleeve with Tang BT Morse Taper Adapter Sleeve , BT tooling comes in a range of sizes designated as BT30, BT40, BT50, etc, and uses the same NMTB body taper as CATEE, BT tooling is symmetrical about the spindle axis. This gives BT tooling greater stability and balance at high speeds.BT-MTA Morse taper milling tool holder, suitable for clamping type DIN228-1A with flat tail Morse tool holder.

Model MT.NO. L d Weight(kg)
BT40-MTA2-60 2 60 32 1.11
BT40-MTA3-75 3 75 40 1.15
BT40-MTA4-90 4 90 48 1.43
BT50-MTA1-45 1 45 25 3.6
BT50-MTA2-50 2 50 32 3.63
BT50-MTA2-60 2 60 32 3.64
BT50-MTA2-120 2 120 32 4.3
BT50-MTA3-65 3 65 40 4.2
BT50-MTA3-120 3 120 40 4.4
BT50-MTA3-135 3 135 40 4.46
BT50-MTA3-150 3 150 40 4.68
BT50-MTA4-85 4 85 48 3.75
BT50-MTA4-95 4 95 48 3.85
BT50-MTA4-105 4 105 63 5
BT50-MTA4-108 4 108 63 5.06
suitable for clamping type DIN228-1A with flat tail Morse tool holder



 BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang 1

Morse B taper adapter with BT Shank, suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining.BT-MTA Morse taper milling tool holder, suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining



Product name:CNC morse taper adapter BT collet chuck morse chuck tool holder
BT morse taper adapter Type:BT30/BT40/BT50 morse taper with tang
BT morse taper adapter Material:40Cr
BT morse taper adapter Hardness:HRC53-55,Color:Black and bright
BT morse taper adapter Accuracy:0.005mm Collet Holder
BT morse taper adapter Usage: Milling Drilling,Carbon depth:>0.8,Suitable Facing Cutter:13mm-50mm


 BT30 Morse Taper Adapter Sleeve Precision BT Morse Taper Sleeve With Tang 2
