| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 8/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Coolant Hole: | Yes | Cutting Direction: | Right Hand |
|---|---|---|---|
| Cutting Edge Angle: | 90° | Cutting Edge Length: | 50mm |
| Flute Length: | 50mm | Material: | 20CrMnTi |
| Name: | Drill Chuck Adapter | Number Of Flutes: | 2 |
| Overall Length: | 45mm | Shank Type: | Mas403 |
| Surface Finish: | Polished | Tolerance: | ±0.005mm |
| Usage: | CNC Machining | Accuracy: | High Precision |
| Weight: | 0.5kg-1.5kg | ||
| High Light: | BT Tool Holder BT50,Drill Chuck Adapter BT Tool Holder,BT50 Drill Chuck Arbor |
||

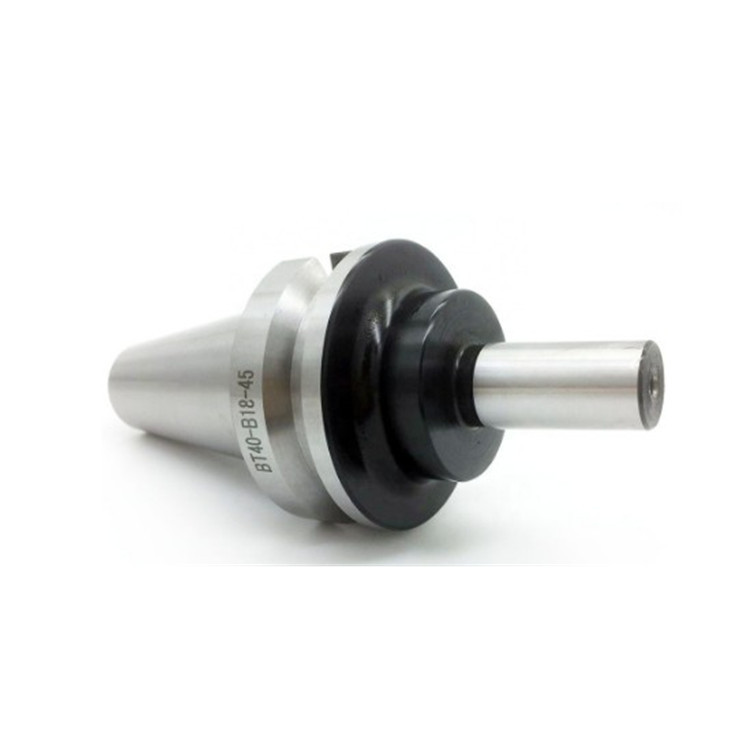

BT Drill Chuck Arbor Taper Accuracy to AT3 for High Speed Running drill chuck adapter bt tool holder
CNC tool system drill chuck adapter BT30/40/50 drill chuck arbor made from carburized alloy steel, work surface hardness to HRC58~62.
,The connecting rod is mainly used for drilling and milling machine used in drill chuck, BT Drill Chuck Arbor generally used for lathe, milling machine, machining center machine etc.. BT Drill Chuck Arbor Connecting rod using the alloy structure steel, the hardness reached 58-62 degrees, the speed of up to 12000 rpm
SpecifiCATEEions
1.BT Drill Chuck Arbor Model: BT30/40/501.Made from carburized alloy steel, work surface hardness to HRC58~62.
2.BT Drill Chuck Arbor Taper accurary≤ AT3, ensure well contact with spindle cone for high speed
running to protect the spindle.
3.BT Drill Chuck Arbor Concentrictity and runout ≤0.005mm in high rpm.
4.BT Drill Chuck Arbor According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm
FAQ
1.What kind of characteristic of your company?
We are both manuafcturer and exporter.
2.Can you supply samples?
Yes,we can.
3.Can you produce products according to our requirement?
Yes,we can.
4. About Shipping
| Port: | Shanghai/Ningbo/Guangzhou/Shenzhen/Hongkong | |
| Shipping : | By Air, By Sea or By Express | |
| Shipping Time : | 4-10days By Express | Different Area will spend different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
5. product warranty
One year warranty
6.What's your payment terms?
FOB,T/T,CIF.
| Model No. | L2 | L1 | D | D1 | Drawbar thread |
| BT30-J1-45 | 16.669 | 110 | 9.754 | 31.75 | M12 |
| BT30-J2-45 | 22.225 | 115.6 | 14.199 | 31.75 | M12 |
| BT30-J3-45 | 30.956 | 124.4 | 20.599 | 31.75 | M12 |
| BT30-J6-45 | 25.4 | 118.8 | 17.17 | 31.75 | M12 |
| BT30-J33-45 | 25.4 | 118.8 | 15.85 | 31.75 | M12 |
| BT30-B10-45 | 14.5 | 107.9 | 10.094 | 31.75 | M12 |
| BT30-B12-45 | 18.5 | 111.9 | 12.065 | 31.75 | M12 |
| BT30-B16-45 | 24 | 117.4 | 15.733 | 31.75 | M12 |
| BT30-B18-45 | 32 | 125.4 | 17.78 | 31.75 | M12 |
| BT40-J1-45 | 16.669 | 127.1 | 9.754 | 44.45 | M16 |
| BT40-J2-45 | 22.225 | 132.6 | 14.199 | 44.45 | M16 |
| BT40-J2S-45 | 19.05 | 129.4 | 13.94 | 44.45 | M16 |
| BT40-J3-45 | 30.956 | 141.4 | 20.599 | 44.45 | M16 |
| BT40-J4-45 | 42.069 | 152.5 | 28.55 | 44.45 | M16 |
| BT40-J5-45 | 47.625 | 158 | 35.89 | 44.45 | M16 |
| BT40-J6-45 | 25.4 | 135.8 | 17.17 | 44.45 | M16 |
| BT40-J33-45 | 25.4 | 135.8 | 15.85 | 44.45 | M16 |
| BT40-B10-45 | 14.5 | 124.9 | 10.094 | 44.45 | M16 |
| BT40-B10-120 | 14.5 | 199.9 | 10.094 | 44.45 | M16 |
| BT40-B12-45 | 18.5 | 128.9 | 12.065 | 44.45 | M16 |
| BT40-B16-32 | 24 | 121.4 | 15.733 | 44.45 | M16 |
| BT40-B16-45 | 24 | 134.4 | 15.733 | 44.45 | M16 |
| BT40-B16-75 | 24 | 164.4 | 15.733 | 44.45 | M16 |
| BT40-B16-90 | 24 | 179.4 | 15.733 | 44.45 | M16 |
| BT40-B18-45 | 32 | 142.4 | 17.78 | 44.45 | M16 |
| BT40-B18-75 | 32 | 172.4 | 17.78 | 44.45 | M16 |
| BT50-J1-45 | 16.669 | 163.5 | 9.754 | 69.85 | M24 |
| BT50-J2-45 | 22.225 | 169 | 14.199 | 69.85 | M24 |
| BT50-J2S-45 | 19.05 | 165.9 | 13.94 | 69.85 | M24 |
| BT50-J3-45 | 30.956 | 177.8 | 20.599 | 69.85 | M24 |
| BT50-J4-45 | 42.069 | 188.9 | 28.55 | 69.85 | M24 |
| BT50-J5-45 | 47.625 | 194.4 | 35.89 | 69.85 | M24 |
| BT50-J6-45 | 25.4 | 172.2 | 17.17 | 69.85 | M24 |
| BT50-J33-45 | 25.4 | 172.2 | 15.85 | 69.85 | M24 |
| BT50-B10-45 | 14.5 | 161.3 | 10.094 | 69.85 | M24 |
| BT50-B10-100 | 14.5 | 216.3 | 10.094 | 69.85 | M24 |
| BT50-B12-45 | 18.5 | 165.3 | 12.065 | 69.85 | M24 |
| BT50-B16-45 | 24 | 170.8 | 15.733 | 69.85 | M24 |
| BT50-B16-60 | 24 | 185.8 | 15.733 | 69.85 | M24 |
| BT50-B16-75 | 24 | 200.8 | 15.733 | 69.85 | M24 |
| BT50-B16-90 | 24 | 215.8 | 15.733 | 69.85 | M24 |
| BT50-B18-45 | 32 | 178.8 | 17.78 | 69.85 | M24 |
