| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 8/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Coolant Hole: | Yes | Cutting Direction: | Right Hand |
|---|---|---|---|
| Cutting Edge Angle: | 90° | Cutting Edge Length: | 50mm |
| Flute Length: | 50mm | Material: | 20CrMnTi |
| Name: | BT Drill Chuck Arbor | Number Of Flutes: | 2 |
| Overall Length: | 90mm | Shank Diameter: | 20mm |
| Shank Type: | Mas403 | Surface Finish: | Polished |
| Tolerance: | ±0.005mm | Usage: | CNC Lathe Machining |
| Package: | Plastic Box | Size: | BT40 B18 |
| High Light: | 0.01mm Precision BT Tool Holder,BT Tool Holder BT40,BT40 Face Mill Arbor 20CrMnTi |
||

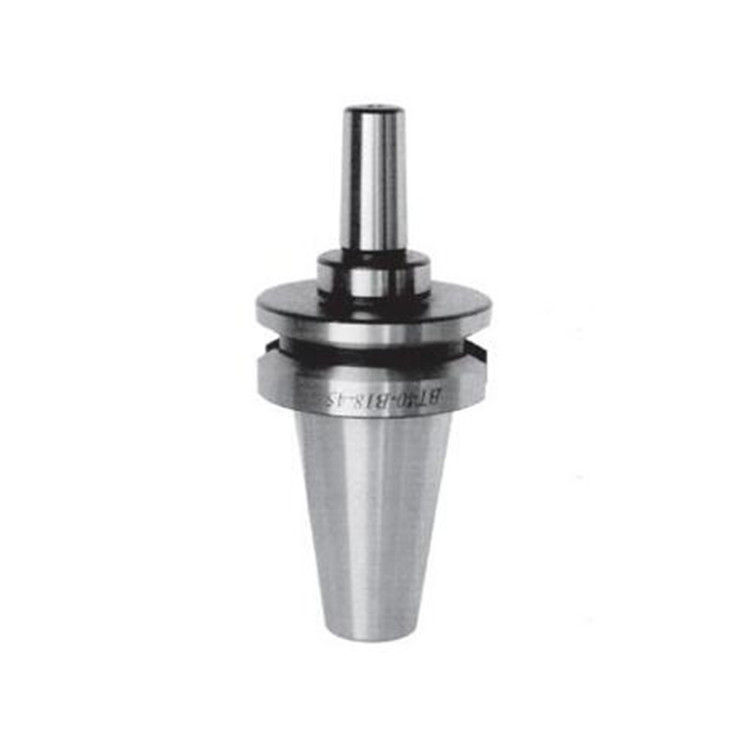

BT Drill Chuck Arbor, BT30/BT40/BT50, Up to 0.01mm Precision bt tool holder facing cutter
BT drill collet chuck arbors tool holder for cnc milling machine,Suitable Facing Cutter:16mm-40mm .The connecting rod is mainly used for drilling and milling machine used in drill chuck, BT Drill Chuck Arbor generally used for lathe, milling machine, machining center machine etc.. BT Drill Chuck Arbor Connecting rod using the alloy structure steel, the hardness reached 58-62 degrees, the speed of up to 12000 rpm
SpecifiCATEEions
1.High quality elastic steel material with long use time.
2.BT drill chuck arbor Type: A AD AD/B
3.BT drill chuck arbor Shank of the DIN Taper Shell Mill Arbors:BT30, BT40 BT50
4.BT drill chuck arbor Suitable Facing Cutter:16mm-40mm
5.The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
6.BT drill chuck arbor Holder hardness:48-55HRC
7.BT drill chuck arbor Suitable Pull Stub& Facing Cutter is also upon request
|
Model No. BT-NO.s-L1 |
L2 | L1 | D | Drawbar thread | Wt(kg) |
| BT30-J1-45 | 16.669 | 110 | 9.754 | M12 | 0.60 |
| BT30-J2-45 | 22.225 | 115.6 | 14.199 | M12 | 0.70 |
| BT30-J3-45 | 30.956 | 124.4 | 20.599 | M12 | 0.80 |
| BT30-J6-45 | 25.4 | 118.8 | 17.170 | M12 | 0.75 |
| BT30-J33-45 | 25.4 | 118.8 | 15.850 | M12 | 0.75 |
| BT30-B10-45 | 14.5 | 107.9 | 10.094 | M12 | 0.60 |
| BT30-B12-45 | 18.5 | 111.9 | 12.065 | M12 | 0.60 |
| BT30-B16-45 | 24 | 117.4 | 15.733 | M12 | 0.70 |
| BT30-B18-45 | 32 | 125.4 | 17.780 | M12 | 0.82 |
| BT40-J1-45 | 16.669 | 127.1 | 9.754 | M16 | 1.15 |
| BT40-J2-45 | 22.225 | 132.6 | 14.199 | M16 | 1.25 |
| BT40-J2S-45 | 19.05 | 129.4 | 13.940 | M16 | 1.20 |
| BT40-J3-45 | 30.956 | 141.4 | 20.599 | M16 | 1.45 |
| BT40-J4-45 | 42.069 | 152.5 | 28.550 | M16 | 1.55 |
| BT40-J5-45 | 47.625 | 158 | 35.890 | M16 | 1.60 |
| BT40-J6-45 | 25.4 | 135.8 | 17.170 | M16 | 1.30 |
| BT40-J33-45 | 25.4 | 135.8 | 15.850 | M16 | 1.30 |
| BT40-B10-45 | 14.5 | 124.9 | 10.094 | M16 | 1.40 |
| BT40-B10-120 | 14.5 | 199.9 | 10.094 | M16 | 1.76 |
| BT40-B12-45 | 18.5 | 128.9 | 12.065 | M16 | 1.34 |
| BT40-B16-32 | 24 | 121.4 | 15.733 | M16 | 1.40 |
| BT40-B16-45 | 24 | 134.4 | 15.733 | M16 | 1.45 |
| BT40-B16-75 | 24 | 164.4 | 15.733 | M16 | 1.55 |
| BT40-B16-90 | 24 | 179.4 | 15.733 | M16 | 1.40 |
| BT40-B18-45 | 32 | 142.4 | 17.780 | M16 | 1.70 |
| BT40-B18-75 | 32 | 172.4 | 17.780 | M16 | 1.76 |
| BT50-J1-45 | 16.669 | 163.5 | 9.754 | M24 | 3.60 |
| BT50-J2-45 | 22.225 | 169 | 14.199 | M24 | 3.95 |
| BT50-J2S-45 | 19.05 | 165.9 | 13.940 | M24 | 3.90 |
| BT50-J3-45 | 30.956 | 177.8 | 20.599 | M24 | 3.70 |
| BT50-J4-45 | 42.069 | 188.9 | 28.550 | M24 | 3.75 |
| BT50-J5-45 | 47.625 | 194.4 | 35.890 | M24 | 3.80 |
| BT50-J6-45 | 25.4 | 172.2 | 17.170 | M24 | 4.00 |
| BT50-J33-45 | 25.4 | 172.2 | 15.850 | M24 | 4.00 |
| BT50-B10-45 | 14.5 | 161.3 | 10.094 | M24 | 3.60 |
| BT50-B10-100 | 14.5 | 216.3 | 10.094 | M24 | 3.80 |
| BT50-B12-45 | 18.5 | 165.3 | 12.065 | M24 | 3.60 |
| BT50-B16-45 | 24 | 170.8 | 15.733 | M24 | 3.65 |
| BT50-B16-60 | 24 | 185.8 | 15.733 | M24 | 3.70 |
| BT50-B16-75 | 24 | 200.8 | 15.733 | M24 | 3.74 |
| BT50-B16-90 | 24 | 215.8 | 15.733 | M24 | 3.78 |
| BT50-B18-45 | 32 | 178.8 | 17.780 | M24 | 3.70 |
