| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PC |
| Packaging Details: | CARTON |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 10000PCS MONTH |
| AppliCATEion: | CNC Clamping Machining | Coating: | TiN |
|---|---|---|---|
| Flute Type: | Single Flute | Material: | 20CrMnTi |
| Product Name: | SK50 Tool Holder | Shank Type: | Sk |
| Tolerance: | H6 | Type: | DIN69872 Tool Holder |
| Size: | Sk50 Oz25 | Brand: | SK |

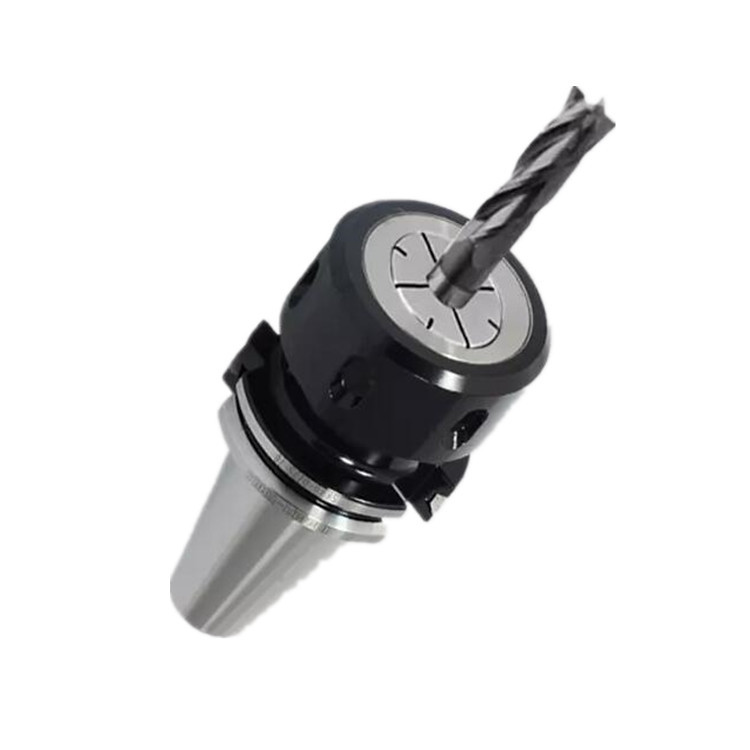

SK50 OZ Collet Chuck,applicable to the main shaft of the SK3O and is also suitable for similar woodworking machinery and equipment, such as industry, such as the long, peace, shoda brands such as CNC machine tool equipment, the handle the special configuration of a screwdriver handle, knife beam configuration model for 0Z25.SK OZ Collet chuck DIN6388 OZ collet clamping straight shank tools of various sizes ,straight shank collet clamping tool for various sizes of cylindrical shank, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
SK OZ Collet Chuck SpecifiCATEEions
1,SK OZ Collet Chuck Material: 40Cr, 20CrMnTi
2, SK OZ Collet Chuck Accuracy: 0.005mm
3, SK OZ Collet Chuck Taper tolerance: AT3
4, SK OZ Collet Chuck Hardness: 52-58HRC
5, Coolant: AD, B, AD/B can be made according to cutomer requirements
6, ball bearing Nut
7, Dynamic balancing: G6.3/12000rpm, G2.5/25000rpm
| MODEL | L | D | COLLET TYPE |
| SK40-OZ25-100 | 100 | 60 | OZ25 |
| SK40-OZ32-90 | 90 | 72 | OZ32 |
| SK50-OZ25-85 | 85 | 60 | OZ25 |
| SK50-OZ25-100 | 100 | 60 | OZ25 |
| SK50-OZ32-70 | 70 | 72 | OZ32 |
