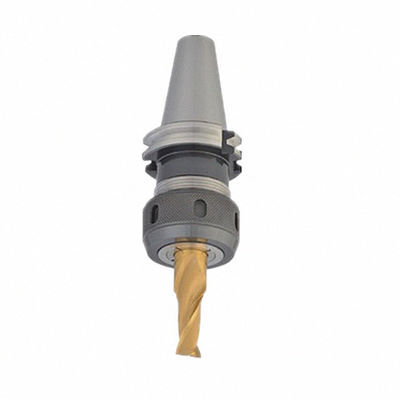

OZ Series Spring SK Tool Holder Shank Tool Holder SK30 SK40 SK50

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: SK30,SK40,SK50
Minimum Order Quantity: 10PCS
Price: USD 10/PC
Packaging Details: CARTON
Delivery Time: 5 DAYS
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10000PCS MONTH
AppliCATEion: CNC Clamping Machining Coating: TiN
Flute Type: Single Flute Material: 20CrMnTi
Product Name: SK OZ Tool Holder Shank Type: Sk
Tolerance: H6 Type: Sk Tool Holder
Size: Sk40 Oz32 Hardness: HRC55
Length: 100 Usage: For CNC Machine
High Light:

Spring SK Tool Holder

,

OZ Series SK Tool Holder

,

Shank Tool Holder SK30

High Precision SK Shank Tool Holder for SK30/SK40/SK50 OZ Series spring tool holder cnc machine tool



Collet chuck for SK30/SK40/SK50 OZ Series, DIN6388 OZ collet clamping straight shank tools of various sizes ,straight shank collet clamping tool for various sizes of cylindrical shank, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.



The hilt of the SK30-OZ25 speed for 24000R/MIN, applicable to the main shaft of the SK3O and is also suitable for similar woodworking machinery and equipment, such as industry, such as the long, peace, shoda brands such as CNC machine tool equipment, the handle the special configuration of a screwdriver handle, knife beam configuration model for 0Z25.SK OZ Collet chuck DIN6388 OZ collet clamping straight shank tools of various sizes ,straight shank collet clamping tool for various sizes of cylindrical shank, Spring Tool Holder high speed and high precision machining. Sk Tool Holder Mechanical spindle and cutting tools and other accessories.


Spring Tool Holder SpecifiCATEEions
1, Sk Collet Chuck Material: 40Cr, 20CrMnTi
2, Accuracy: 0.005mm
3, Taper tolerance: AT3
4, Hardness: 52-58HRC
5, Sk Tool Holder Coolant: AD, B, AD/B can be made according to cutomer requirements
6, ball bearing Nut
7, Dynamic balancing: G6.3/12000rpm, G2.5/25000rpm
The hilt of the SK30-OZ25 speed for 24000R/MIN, applicable to the main shaft of the SK3O and is also suitable for similar woodworking machinery and equipment, such as industry, such as the long, peace, shoda brands such as CNC machine tool equipment, the handle the special configuration of a screwdriver handle, knife beam configuration model for 0Z25.



SK OZ COLLET CHUCK

The SK OZ collet chuck is a type of collet chuck that is specifically designed for heavy cutting appliCATEEions. It is known for its high clamping force and rigidity, which allows for efficient and accurate machining even under heavy loads.

The SK OZ collet chuck features a unique design that combines the advantages of both the SK and OZ collet systems. The SK system provides excellent concentricity and stability, while the OZ system offers high clamping force and rigidity. This combination makes the SK OZ collet chuck ideal for heavy cutting operations where stability and precision are crucial.

One of the key features of the SK OZ collet chuck is its high clamping force. This is achieved through the use of multiple clamping segments that evenly distribute the clamping force around the workpiece. This ensures a secure grip and minimizes the risk of slippage or distortion during heavy cutting.

Additionally, the SK OZ collet chuck has a short projection length, which reduces tool overhang and improves machining stability. This is especially important when performing heavy cutting operations, as it helps to minimize vibrations and maximize cutting efficiency.

Overall, the SK OZ collet chuck is a reliable and efficient tool for heavy cutting appliCATEEions. Its high clamping force, rigidity, and stability make it an excellent choice for machining operations that require precision and accuracy even under heavy loads.



MODEL L D COLLET TYPE
SK40-OZ25-70 70 60 OZ25
SK40-OZ25-100 100 60 OZ25
SK40-OZ32-90 90 72 OZ32
SK50-OZ25-100 100 60 OZ25
SK50-OZ32-70 70 72 OZ32
