| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PC |
| Packaging Details: | CARTON |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 10000PCS MONTH |
| Coating: | TiN | Cutting Direction: | Right Hand |
|---|---|---|---|
| Flute Length: | 2-1/2 | Flute Type: | Straight |
| Helix Angle: | 30° | Material: | 20CrMnTi |
| Number Of Flutes: | 2 | Overall Length: | 70 |
| Product Name: | SK C Tool Holder | Shank Diameter: | 32 |
| Shank Type: | Straight Shank | ||
| High Light: | ER40 SK Power Collet Chuck,ER32 SK Power Collet Chuck,ER25 Milling Machine Tool Holder |
||

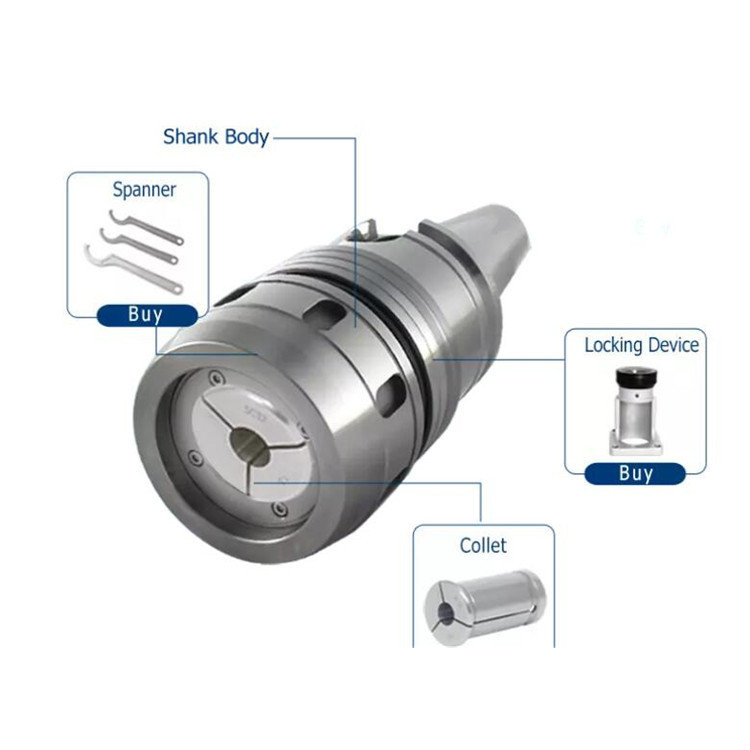

SK Powerful Collet Chuck Made in Hardness Steel cutting tool holder milling machine tool holder

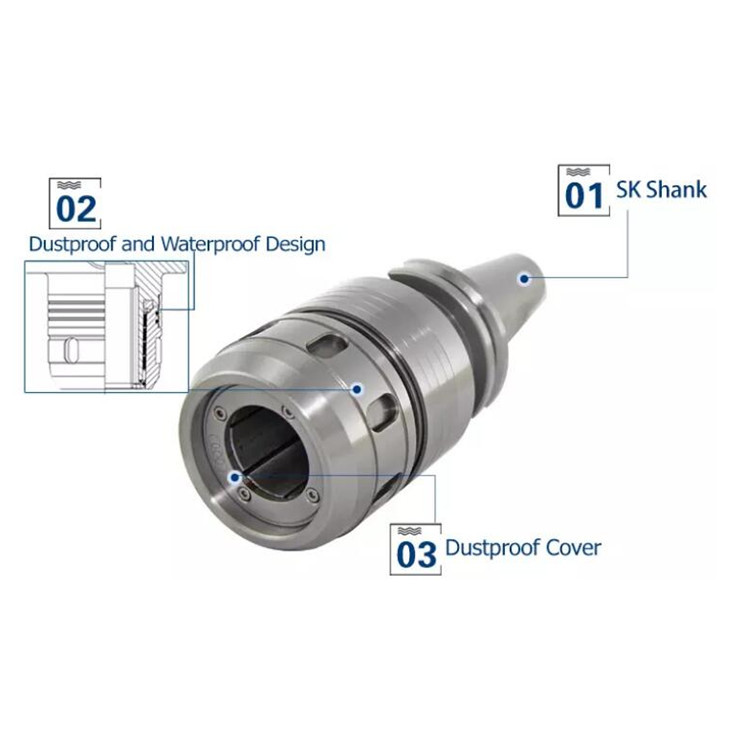

SK C Force Power Straight Needle Roller Milling machine tool holder , SK series powerful toolholder material: titanium alloy 20CrMnTi is used, which is wear-resistant and durable. The hardness of the toolholder is 58-60 degrees, and the accuracy is 0.005mm. The unique clamping structure can make the clamping part deform evenly, with unique and powerful clamping force and stable runout and accuracy.
SK Powerful Collet Chuck SpecifiCATEEions
1. ER spanner/wrench
2. SK Powerful Collet Chuck Suitable to ER25/32/40/50UM Nut
3. SK Powerful Collet Chuck Made in hardness steel
4. International quality standard
5. Suitable to all ER collet nut
6. International quality standard
SK Powerful Collet Chuck AppliCATEEions: Straight handle holder for clamping various sizes of cylindrical handle for high speed and high
The SK SC Chuck Straight Cutting Tool Holder is a tool holder designed for use with cutting tools in machining appliCATEEions. It is compatible with SK SC chucks and is used to securely hold and position cutting tools during machining operations.
The tool holder is made from high-quality materials to ensure durability and reliability. It features a straight design, which allows for precise cutting and machining. The tool holder is also designed to provide optimal stability and rigidity, minimizing vibration and improving cutting accuracy.
The SK SC Chuck Straight Cutting Tool Holder is easy to install and remove, making tool changes quick and efficient. It is suitable for use in various machining appliCATEEions, including milling, drilling, and turning.
Overall, the SK SC Chuck Straight Cutting Tool Holder is a reliable and versatile tool holder that provides precision and stability for cutting tools in machining operations.
| Model | L | L1 | L2 | D | d1 |
| SK30-C20-85 | 132.8 | 85 | 70 | 50 | 20 |
| SK30-C20-100 | 147.8 | 100 | 70 | 50 | 20 |
| SK40-C20-85 | 153.4 | 85 | 70 | 63.55 | 20 |
| SK40-C20-100 | 168.4 | 100 | 70 | 63.55 | 20 |
| SK40-C20-135 | 203.4 | 135 | 70 | 63.55 | 20 |
| SK40-C32-105 | 173.4 | 105 | 75 | 63.55 | 32 |
| SK40-C32-135 | 203.4 | 135 | 75 | 63.55 | 32 |
| SK50-C20-105 | 206.75 | 105 | 70 | 97.5 | 20 |
| SK50-C20-150 | 251.75 | 150 | 70 | 97.5 | 20 |
| SK50-C32-105 | 206.75 | 105 | 75 | 97.5 | 32 |
| SK50-C32-110 | 211.75 | 110 | 75 | 97.5 | 32 |
| SK50-C32-135 | 236.75 | 135 | 75 | 97.5 | 32 |
| SK50-C42-110 | 211.75 | 110 | 90 | 97.5 | 42 |
Powerful chuck tool holder is suitable for milling machine, heavy cutting and precision cutting.Cnc Sk Power Collet Chuck is a common tool holder in cutting process. It is used to clamp straight shank cutters such as milling cutters and reamers. The clamping deformation of clamping spring is small. The diameter tolerance of clamping tool holder is h6. The clamping force is larger and the clamping precision is better. Sk Powerful Collet Chuck Different cylinder clamps can be replaced to clamp milling cutters and reamers with different shank diameters.
