| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PC |
| Packaging Details: | CARTON |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 10000PCS MONTH |
| Coating: | TiN | Cutting Direction: | Right Hand |
|---|---|---|---|
| Flute Length: | 2-1/2 | Flute Type: | Straight |
| Material: | 20CrMnTi | Number Of Flutes: | 2 |
| Overall Length: | 105 | Product Name: | SK40 SC Tool Holder |
| Shank Diameter: | 20 | Shank Type: | Straight Shank |
| AppliCATEion: | Machining | ||
| High Light: | Milling Chucks SK Tool Holder,SK Power Collet Chuck,SK Tool Holder Straight Shank |
||

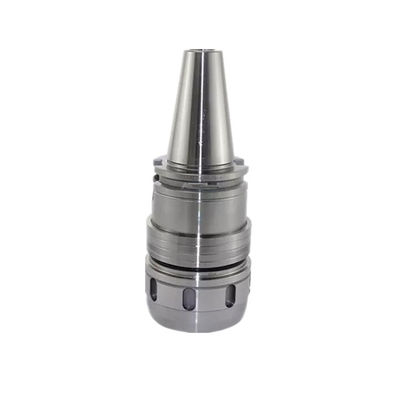

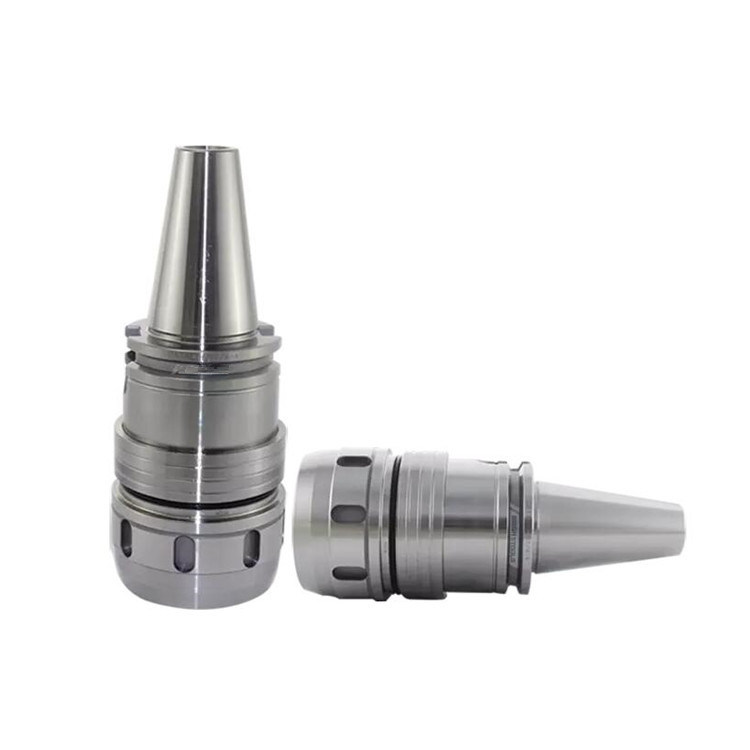

SK Tool Holder Power Milling Chucks Heavy Cutting SK powerful collet chuck
SK Power Milling Chuck for Heavy Cutting, straight shank collet clamping tool for various sizes of cylindrical shank, high speed and high precision machining .Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
SpecifiCATEEions
1. ER spanner/wrench
2. Suitable to ER25/32/40/50UM Nut
3. Sk Tool Holder Made in hardness steel
4. International quality standard
5. Suitable to all ER collet nut
6. International quality standard
Spring Tool Holder AppliCATEEions: Straight handle holder for clamping various sizes of cylindrical handle for high speed and high
| Model | L | L1 | L2 | D | d1 | d2 |
| SK30-C20-85 | 132.8 | 85 | 70 | 50 | 20 | 55 |
| SK30-C20-100 | 147.8 | 100 | 70 | 50 | 20 | 55 |
| SK40-C20-85 | 153.4 | 85 | 70 | 63.55 | 20 | 55 |
| SK40-C20-100 | 168.4 | 100 | 70 | 63.55 | 20 | 55 |
| SK40-C20-135 | 203.4 | 135 | 70 | 63.55 | 20 | 55 |
| SK40-C32-105 | 173.4 | 105 | 75 | 63.55 | 32 | 73 |
| SK40-C32-135 | 203.4 | 135 | 75 | 63.55 | 32 | 73 |
| SK50-C20-105 | 206.75 | 105 | 70 | 97.5 | 20 | 55 |
| SK50-C20-150 | 251.75 | 150 | 70 | 97.5 | 20 | 55 |
| SK50-C32-105 | 206.75 | 105 | 75 | 97.5 | 32 | 73 |
| SK50-C32-110 | 211.75 | 110 | 75 | 97.5 | 32 | 73 |
| SK50-C32-135 | 236.75 | 135 | 75 | 97.5 | 32 | 73 |
| SK50-C42-110 | 211.75 | 110 | 90 | 97.5 | 42 | 95 |
The SK Power Milling Chuck is a tool holder designed for heavy cutting appliCATEEions in milling machines. It is specifically designed to provide high rigidity and stability during heavy machining operations.
The SK Power Milling Chuck features a unique design that allows for easy and quick tool changes, minimizing downtime in production. It utilizes a high clamping force mechanism to securely hold the cutting tool in place, ensuring accuracy and precision during heavy cutting.
The chuck is made from high-quality materials that provide excellent durability and long-lasting performance. It is also designed to reduce vibration and chatter during heavy cutting, resulting in improved surface finishes and extended tool life.
The SK Power Milling Chuck is available in various sizes and configurations to accommodate different cutting tools and machine requirements. It is compatible with a wide range of milling machines and can be easily integrated into existing machining setups.
Overall, the SK Power Milling Chuck is a reliable and efficient tool holder for heavy cutting appliCATEEions. Its robust construction and advanced features make it an ideal choice for industries such as aerospace, automotive, and general machining, where high-performance tooling is required.
