| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Product Name: | SK ToolHolder | Size: | Milling |
|---|---|---|---|
| Type: | Cnc Tool Holder | AppliCATEion: | Lathe Milling |
| Hardness: | HRC56-58 | Material: | 20CrMnTi |
| Name: | SK Face Milling Tool Holder | Processing Type: | CNC Machining |
| Tolerance: | 0.005mm | Brand: | SK |
| Model: | Sk30 Fmb22 | Stability: | High |
| High Light: | Lathe SK40 Facemill Holder,Facemill Holder SK30,SK50 Face Milling Holder Arbor |
||

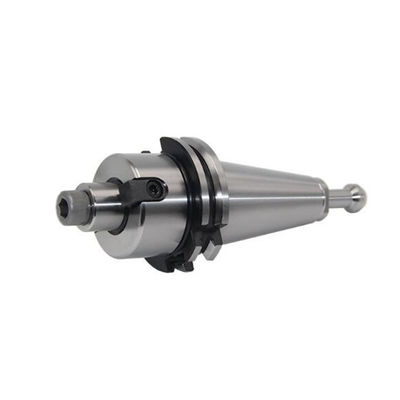

Lathe SK40 face milling holder SK30 SK40 SK50 Face Milling Holder Arbors
SK FMB32 Face Mill holder FMB Tool Holder ,SK Face milling holder Hardness: HRC56-58 ,is used in the clamping of the cutter with the radial drive groove, SK Face Milling Holder such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining. SK Face Milling Holder Mechanical spindle and cutting tools and other accessories.SK Face Milling Holder High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
1. SK Face milling holder Material: 20CrMnTi
2. SK Face milling holder Hardness: HRC56-58
3. SK Face milling holder Type: SK40/50 ER Collet Chuck
4. SK Face milling holder Standard: DIN69871
5. SK Face milling holder Dynamic Balance: G6.3/2.5
SK Standard Face Mill Chuck Holder Fmb Tool Holder ,SK Face Milling Holder such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining.SK face mill holder is used in the clamping of the cutter with the radial drive groove, SK Face Milling Holder Mechanical spindle and cutting tools and other accessories.SK Face Milling Holder High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
Face milling holders are tools used in milling machines to hold and secure face milling cutters. They are designed to provide stability and accuracy during the milling process.
Face milling holders typically consist of a cylindrical body with a flange at one end to hold the milling cutter. The body is mounted onto the milling machine spindle and tightened using a drawbar or other clamping mechanism.
The flange of the face milling holder has precision-machined slots or holes that match the mounting configuration of the milling cutter. This allows the cutter to be securely attached to the holder and ensures proper alignment for accurate milling.
Some face milling holders also have coolant channels or holes to facilitate the flow of coolant or cutting fluid during the milling process. This helps to remove chips and heat from the cutting zone, improving tool life and surface finish.
Face milling holders are available in various sizes and configurations to accommodate different types and sizes of face milling cutters. They are commonly used in industries such as automotive, aerospace, and manufacturing for appliCATEEions such as facing, contouring, and slotting.
| Model | d1 | d2 | d3 | L1 | L2 | L3 | L | Washer | Weight | |
| SK30- | FMB22-35 | 22 | 26 | 47 | 35 | 18 | 14 | 100.8 |
|
0.70 |
| FMB27-35 | 27 | 33 | 58 | 35 | 20 | 16 | 102.8 | FM-1 | 1.00 | |
| SK40- | FMB22-35 | 22 | 26 | 47 | 35 | 18 | 14 | 121.4 |
|
1.20 |
| FMB27-60 | 27 | 33 | 58 | 60 | 20 | 16 | 148.4 | FM-1 | 1.86 | |
| FMB32-60 | 32 | 40 | 66 | 60 | 22 | 16 | 150.4 | FM-1 | 2.32 | |
| FMB40-60 | 40 | 50 | 82 | 60 | 25 | 20.5 | 153.4 | FM-1 | 2.47 | |
| SK50- | FMB22-35 | 22 | 26 | 47 | 35 | 18 | 14 | 154.75 |
|
3.60 |
| FMB27-35 | 27 | 33 | 58 | 35 | 20 | 16 | 156.75 | FM-1 | 3.79 | |
| FMB32-35 | 32 | 40 | 66 | 35 | 22 | 16 | 158.75 |
|
4.10 | |
| FMB40-50 | 40 | 50 | 82 | 50 | 25 | 20.5 | 189.75 |
|
4.57 | |
| FMB60F-70 | 60 |
|
129 | 70 | 40 |
|
211.75 |
|
8.00 | |
