| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | SK30,SK40,SK50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Accuracy: | High Precision | AppliCATEion: | CNC Machine |
|---|---|---|---|
| Coolant Through: | Yes | Material: | 20CrMnTi |
| Product Name: | SK Tool Holder | Runout: | 0.005mm |
| Shank Type: | Mtb | Surface Treatment: | Polishing |
| Taper: | SK50 | Type: | Collet Chuck |
| Overall Length: | 120 | Size: | Sk50-mta3 |
| Weight: | 1.5 | ||
| High Light: | SK30 MTB Mill Arbor,Mill Arbor SK Tool Holder,SK Tool Holder HRC56 |
||

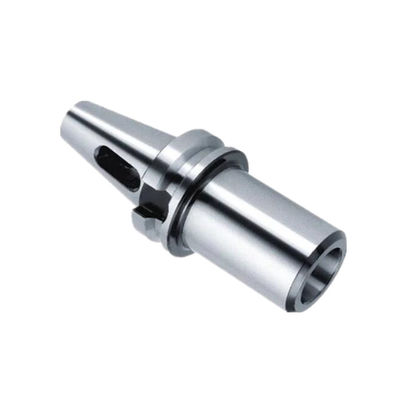

SK30/40/50 MTB Mill Arbors Tool Holder, HRC56-58, 0.8mm±0.2mm Carbon Depth
MTA Morse Taper Adapter SK30/40/50 DIN 69871 Tool Holder , Sk Tool Holder AppliCATEEion range: DIN69871 MORSE TAPER ADAPTER with DRAWBAR is for holding tools with morse tapers and tang according to DIN 228-1 form B. Tool holder suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choos
| Model No. | MT. NO. | L | D | KG |
| SK40-MTB1-50 | 1 | 50 | 25 | 1.3 |
| SK40-MTB2-50 | 2 | 50 | 32 | 1.5 |
| SK40-MTB3-65 | 3 | 65 | 40 | 1.8 |
| SK40-MTB4-95 | 4 | 95 | 50 | 2.4 |
| SK50-MTB1-60 | 1 | 60 | 25 | 4.1 |
| SK50-MTB2-60 | 2 | 60 | 32 | 4.4 |
| SK50-MTB3-65 | 3 | 65 | 40 | 4.5 |
| SK50-MTB4-85 | 4 | 85 | 50 | 4.9 |
| SK50-MTB5-120 | 5 | 120 | 65 | 5.2 |
| Model | MT NO | L | D | Weight(KGS) |
| SK30-MTA1-50 | 1 | 50 | 25 | 0.7 |
| SK30-MTA2-50 | 2 | 50 | 32 | 0.8 |
| SK30-MTA3-75 | 3 | 50 | 40 | 0.9 |
|
|
|
|
|
|
| SK40-MTA1-50 | 1 | 50 | 25 | 1.3 |
| SK40-MTA2-50 | 2 | 50 | 32 | 1.5 |
| SK40-MTA3-65 | 3 | 65 | 40 | 1.8 |
| SK40-MTA4-95 | 4 | 95 | 50 | 2.4 |
| SK40-MTA5-125 | 5 | 125 | 63 | 3.8 |
|
|
|
|
|
|
| SK50-MTA1-45 | 1 | 45 | 25 | 4.1 |
| SK50-MTA2-60 | 2 | 60 | 32 | 4.4 |
| SK50-MTA3-65 | 3 | 65 | 40 | 4.5 |
| SK50-MTA4-70 | 4 | 70 | 50 | 4.9 |
| SK50-MTA5-105 | 5 | 105 | 65 | 5.2 |
MTA Morse Taper Adapter is a tool used in machining and metalworking to connect two different types of tooling systems. The Morse Taper system is a common method of securing cutting tools to a machine spindle, while the MTA adapter allows for the attachment of tools with a different type of taper.
The MTA adapter typically has a Morse Taper on one end, which can be inserted into the machine spindle, and a different type of taper on the other end, such as a R8 or a straight shank. This allows for the use of a wider range of tooling options on a machine that may only have a Morse Taper spindle.
The MTA Morse Taper Adapter is often used in milling machines, lathes, and drill presses, where different types of tooling may be required for different operations. By using an adapter, machinists can easily switch between different tooling options without needing to change the entire spindle or machine setup.
Overall, the MTA Morse Taper Adapter is a versatile tool that helps expand the capabilities of a machine by allowing for the use of different types of tooling systems.
