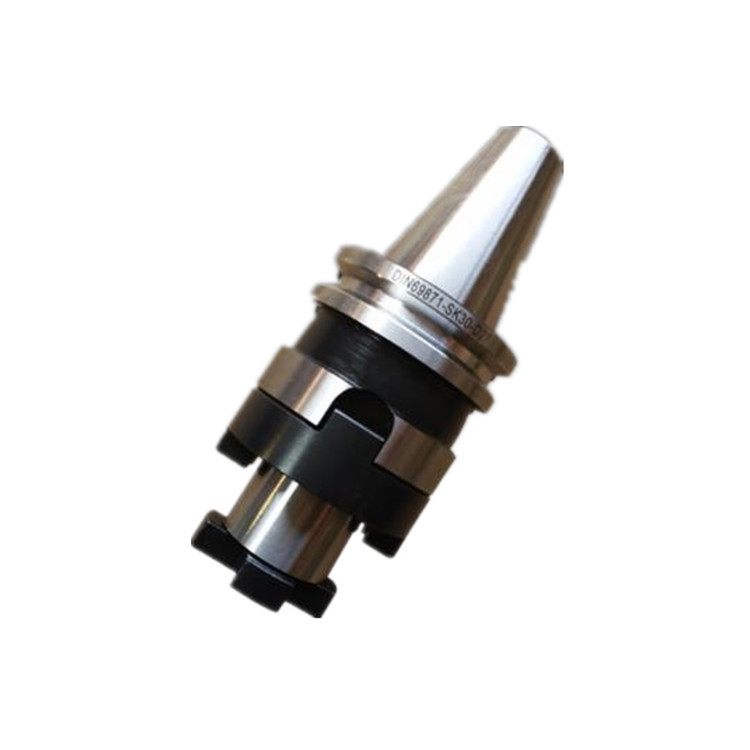

DIN69871 SK Tool Holder 20CrMnTi Milling Cutting Tool Holder

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: SK30,SK40,SK50
Minimum Order Quantity: 10PCS
Price: USD 10/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: CNC Machine Clamping Range: 40mm
Coating: TiN Material: 20CrMnTi
Number Of Pieces: 2 Package: Plastic Box
Product Name: SK Tool Holder Run-out Accuracy: 0.005mm
Surface Treatment: Polishing Tolerance: 0.005mm
Type: SK Collet Chuck Weight: 1kg
Size: Sk40 CM22
High Light:

DIN69871 SK Tool Holder


Milling Cutting Tool Holder


SK Tool Holder 20CrMnTi

SK Combine Shell End Mill Arbor, cutting tool holder type of milling cutter


DIN69871 sk combi shell end mill arbor ,Taper shank is case hardened to 58-62 HRC,High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.suitable for the use of the axial or radial drive groove of the milling cutter such as: vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter .Mechanical spindle and cutting tool holder and other accessories.

1.Product Name: SK Combine Shell End Mill Arbor
2.SK Combine Shell End Mill Arbor .Model: SK30/40-SEMC (specific model reference to the bottom of the table)
3.SK Combine Shell End Mill Arbor Material: high quality Carburizing Steel Blackening synthesis, and fine grinding
4.SK Combine Shell End Mill Arbor Taper shank: tolerance grade <AT3
5.SK Combine Shell End Mill Arbor Hardness: 56-58 HRC
6.Carburizing depth: 0.8mm + 0.2mm
7.Maximum beat: <0.005mm
8.Surface roughness: Ra<0.005mm
9.The handle body can also specify the cooling method of AD+B
(A: no internal cooling hole; type AD: type AD+B: Water Center; center of water and water flange)
10.The handle can be specified dynamic balance G6.3 or G2.5



Model d D L L1
SK30-SEMC22-50 22 63 19 50
SK30-SEMC27-55 27 48 21 55
SK30-SEMC32-60 32 58 24 60
SK40-SEMC16-55 16 32 17 55
SK40-SEMC16-100 16 32 17 100
SK40-SEMC22-55 22 40 19 55
SK40-SEMC22-100 22 40 19 100
SK40-SEMC27-55 27 48 21 55
SK40-SEMC27-100 27 48 21 100
SK40-SEMC32-60 32 58 24 60
SK40-SEMC32-100 32 58 24 100
SK40-SEMC40-60 40 70 27 60
SK40-SEMC40-100 40 70 27 100
SK50-SEMC16-55 16 32 17 55
SK50-SEMC16-100 16 32 17 100
SK50-SEMC22-55 22 40 19 55
SK50-SEMC22-100 22 40 19 100
SK50-SEMC27-55 27 48 21 55
SK50-SEMC27-100 27 48 21 100
SK50-SEMC32-60 32 58 24 60
SK50-SEMC32-100 32 58 24 100
SK50-SEMC40-60 40 70 27 60
SK40-SEMC40-100 40 70 27 100




shell end mill arbor is a tool holder used to secure a shell end mill (also known as a face mill) in a milling machine. It typically consists of a cylindrical shank with a flange at one end and a threaded hole at the other end. The shell end mill is inserted into the arbor's flange and secured using a drawbar or a locking mechanism. The arbor is then mounted onto the milling machine's spindle, allowing the shell end mill to rotate and cut material.


SK Combi Shell End Mill Arbor
