| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | NT30,NT40,NT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 20/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Milling Machine Heavy Duty | Coating: | TiAlN |
|---|---|---|---|
| Cutting Direction: | Right Hand | Material: | 20CrMnTi |
| Number Of Flutes: | 2 | Overall Length: | 90 |
| Point Angle: | 118 | Shank Type: | DIN2080 |
| Size: | OZ32 | Toolholder Type: | NT EOC Tool Holder |
| Name: | NT EOC COLLET CHYUCK | MODEI: | NT40 OZ25 |
| PACKAGE: | PLASTIC BOX | WEIGHT: | 1.5 |
| High Light: | EOC NT Tool Holder,NT40-OZ32-90,OZ Collet Chuck Cutting Tool |
||

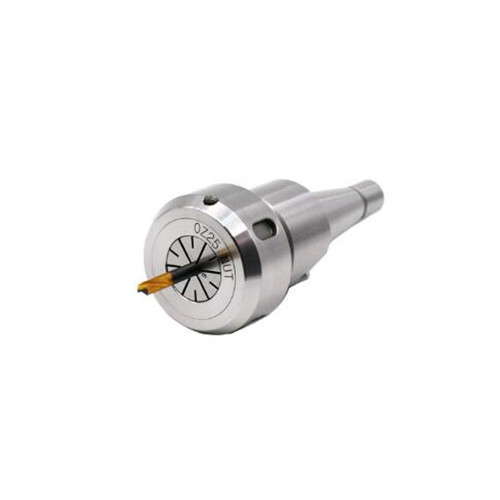

NT40-OZ32-90 High Precision OZ Collet Chuck cutting tool EOC collet nut
NT OZ collet chuck is a type of collet chuck that is commonly used in machining operations. It is designed to securely hold tools and workpieces in place during machining processes. The NT OZ collet chuck is known for its high gripping force and accuracy, making it ideal for precision machining appliCATEEions. It is typically used with CNC machines and is available in various sizes to accommodate different tool diameters. The NT OZ collet chuck is easy to install and remove, allowing for quick tool changes and increased productivity.
To use an OZ collet chuck, the collet is inserted into the chuck body and tightened using a collet nut. The cutting tool is then inserted into the collet, and the collet nut is tightened further to secure the tool in place. The collet chuck is then mounted onto the milling machine spindle, allowing the cutting tool to rotate and perform milling operations.
One advantage of using an OZ collet chuck is its high gripping force, which ensures a secure hold on the cutting tool. This helps to minimize tool runout and vibration during milling, resulting in improved machining accuracy and surface finish.
Overall, an OZ collet chuck is a versatile and reliable tool holder for milling machines, commonly used in various industries such as automotive, aerospace, and general machining.
| Model | Clamping Range | L | D | G |
| NT40-OZ25-100 | 3-25 | 100 | 60 | M16 |
| NT40-OZ32-90 | 6-32 | 90 | 72 | M16 |
| NT50-OZ25-63 | 3-25 | 63 | 60 | M24 |
| NT50-OZ25-100 | 3-25 | 100 | 60 | M24 |
| NT50-OZ32-70 | 6-32 | 70 | 72 | M24 |
High Precision OZ Collet Chuck for milling machine, DIN6388 OZ collet clamping straight shank tools of various sizes, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.
SpecifiCATEEions
NT OZ Collet chuck tool holder for milling/drilling lathe and machine
1.NT OZ Collet chuck Material:ALLOY STEEL
2.NT OZ Collet chuck Hardness:HRC56-60 ,carbon depth >0.8mm
3.NT OZ Collet chuck Taper tolerance:less than AT3
4.NT OZ Collet chuck Surface roughness:less than0.15
5.NT OZ Collet chuck Morse type.Full size as your needs.
7.Contact Surface: ≥85%
8.NT OZ Collet chuck Standard:NT
9.High quality and competitive price,
10.Delivery in time can be guranteed since we have our own factory
NT Shank OZ Collet Chuck Holder is a tool holder used in machining operations. It is designed to securely hold collets, which are used to grip and secure cutting tools such as drills, end mills, and reamers. The NT Shank refers to the type of shank that the holder has, which is commonly used in milling machines. The OZ collet chuck holder is specifically designed to hold OZ collets, which are a type of collet commonly used in high-speed machining appliCATEEions. The combination of the NT Shank and OZ collet chuck holder provides a reliable and precise tool holding solution for various machining operations.
