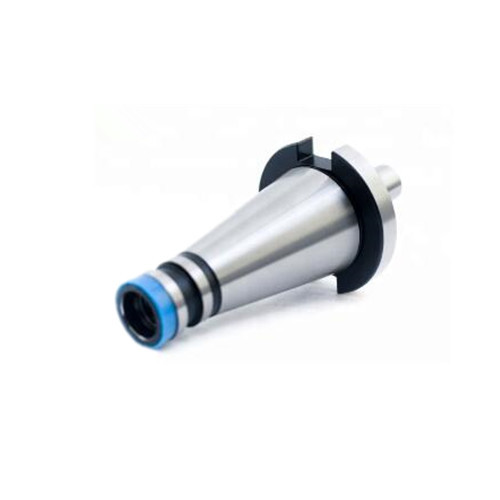

ISO40 J3 NT Tool Holder 20CrMnTi Shank Type Drill Chuck Arbor

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: NT30,NT40,NT50
Minimum Order Quantity: 10PCS
Price: USD 20/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: Milling Brand: NT
Coating: TiAlN Cutting Edge Angle: 90°
Flute Length: 2.5 Flute Number: 2
Material: 20CrMnTi Name: NT Tool Holder
Overall Length: 150 Shank Diameter: 1/2
Shank Type: ISO Size: ISO40 J3
Type: ToolHolder Weight: 1.1kg
High Light:

Shank Type Drill Chuck Arbor


ISO40 J3 NT Tool Holder


NT Tool Holder 20CrMnTi

Tool Accessory NT Drill Chuck Arbors, ISO30/40/50 Shank Type drill chuck arbor


NT30 JT3 Drill Chuck Arbor ,NT Drill Chuck Arbor ,The connecting rod is mainly used for drilling and milling machine used in drill chuck, generally used for lathe, milling machine, machining center machine etc.. Drilling clamp for taper hole drill chuck, taper hole self-tightening chuck and tool.


1.NT Drill Chuck Arbor Shank type:ISO30 ISO40 ISO50
2.NT Drill Chuck Arbor Material: High quality alloy steel 20CrMnTi
3.NT Drill Chuck Arbor Taper: 7:24
4.NT Drill Chuck Arbor The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
5.NT Drill Chuck Arbor Specify the drawbar thread for the taper.Otherwise with metric thread.




NT Shank Drill Chuck Arbors are a type of tool accessory used to connect drill chucks to power drills or other rotary tools. They are designed to securely hold the drill chuck in place while allowing for easy installation and removal.

The NT Shank Drill Chuck Arbors have a tapered shank that fits into the spindle of the drill, while the other end has a threaded section that the drill chuck screws onto. This design ensures a tight and secure connection between the drill chuck and the drill, preventing any slippage during use.

These arbors are typically made of high-quality steel or other durable materials to ensure long-lasting performance and reliability. They are available in various sizes to accommodate different drill chucks and drills.

Using an NT Shank Drill Chuck Arbor is simple. First, insert the tapered shank into the drill spindle and tighten it securely. Then, screw the drill chuck onto the threaded end of the arbor until it is firmly in place. To remove the drill chuck, simply reverse the process.

Overall, NT Shank Drill Chuck Arbors are essential tools for professionals and DIY enthusiasts who frequently use power drills or rotary tools. They provide a secure and reliable connection between the drill chuck and the drill, allowing for precise and efficient drilling operations.


Model 7;24.NO.S D d L M WT
ISO30-J0 31.75 6.35 99 M12 0.313
ISO30-J1 31.75 9.754 106 M12 0.326
ISO30-J2S 31.75 13.94 109 M12 0.341
ISO30-J2 31.75 14.199 113 M12 0.349
ISO30-J33 31.75 15.85 122 M12 0.377
ISO30-J6 31.75 17.17 122 M12 0.388
ISO30-J3 31.75 20.599 123 M12 0.426
ISO30-J4 31.75 28.55 136 M12 0.602
ISO30-J5 31.75 35.89 145 M12 0.827
ISO40-J0 44.45 6.35 126 M16 0.789
ISO40-J1 44.45 9.754 133 M16 0.797
ISO40-J2S 44.45 13.94 136 M16 0.817
ISO40-J2 44.45 14.199 141 M16 0.829
ISO40-J33 44.45 15.85 145 M16 0.853
ISO40-J6 44.45 17.17 145 M16 0.864
ISO40-J3 44.45 20.599 150 M16 0.902
ISO40-J4 44.45 35.89 165 M16 1.028
ISO40-J5 44.45 25.89 170 M16 1.303
ISO50-J1 69.85 9.754 175 M24 2.672
ISO50-J2 69.85 14.199 180 M24 2.704
ISO50-J33 69.85 15.85 184 M24 2.728
ISO50-J6 69.85 17.17 184 M24 2.739
