| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | NT30,NT40,NT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 20/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Coating: | TiN | Connection: | Weldon |
|---|---|---|---|
| Cutting Direction: | Right Hand | Cutting Edge Angle: | 90° |
| Flutes: | 2 | Helix Angle: | 30° |
| Material: | Carbide | Insert Size: | 8 |
| Name: | NT APU Tool Holder | Overall Length: | 90 |
| Shank Diameter: | 8 | MODEL: | DRILL CHUCK |
| Weight: | 1 | AppliCATEion: | Cutting Tools |
| Cutting Process: | Milling Cutter | SIZE: | NT40-APU08 |
| Package: | Plastic Box | ||
| High Light: | Integrated Lathe Drill Chuck Holder,APU13 Lathe Drill Chuck Holder,APU16 Drill Chuck Holder |
||

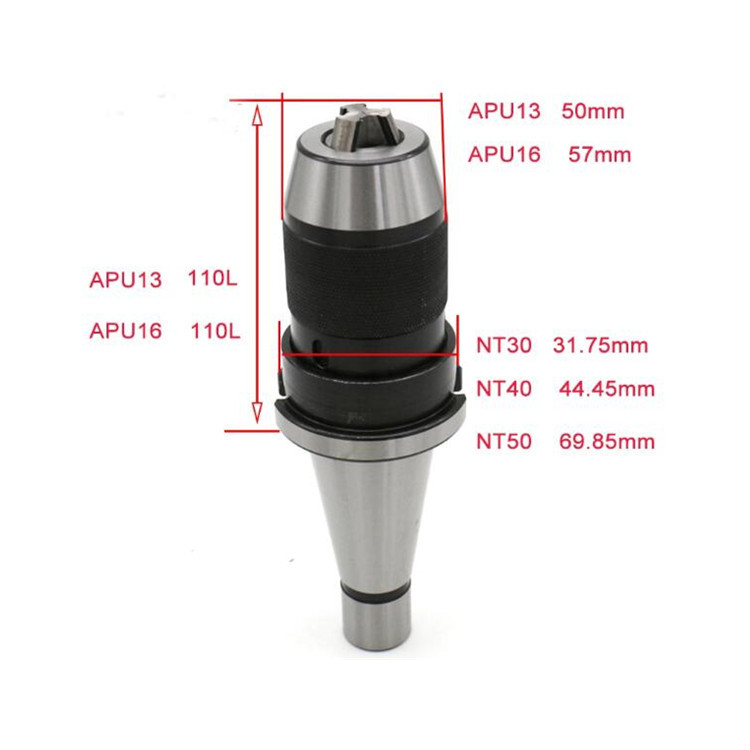

NT30 NT40 APU13 APU16 Integrated Drill Chuck NT Drill Chuck Holder
NT30 NT40 NT50 APU8 APU13 APU16 Drill Chuck Holder , Drill chuck toolholder is a kind of machine tool accessory toolholder, which is widely used in machine manufacturing, machining center, high-precision drilling machine and other processing technology with high drilling accuracy requirements. It can be installed on lathe, milling machine and drilling machine. The price is higher than light spanner drill chuck, heavy spanner drill chuck and hand tight drill chuck.
SpecifiCATEEion:
1.NT APU drill chuck Product Type: NT30 / 40/50-APU (see model below)
2.NT APU drill chuck Material: high quality carburizing alloy steel, black treatment and fine grinding
3.NT APU drill chuck Taper Shank: Tolerance Level <AT3
4.NT APU drill chuck Hardness: HRC 56-58
5.Carburizing depth: 0.8mm ± 0.2mm
6.Maximum beating: <0.005mm = 5um
7.Surface roughness: Ra <0.005 mm
8.NT APU drill chuck AppliCATEEion: clamping the diameter of 0.5-16mm drill
| Model | Clamping Range | D | L | |
| Min | Max | |||
| NT30-APU13-100 | 1-13 | 51.5 | 97 | 104.5 |
| NT40-APU08-85 | 1-8 | 36.3 | 79 | 86.5 |
| NT40-APU13-110 | 1-13 | 51.5 | 98 | 109 |
| NT40-APU16-130 | 3-16 | 58 | 116 | 130 |
| NT50-APU08-95 | 1-8 | 36.3 | 90 | 97.5 |
| NT50-APU13-120 | 1-13 | 51.5 | 109 | 120 |
| NT50-APU13-180 | 1-13 | 51.5 | 169 | 180 |
| NT50-APU16-130 | 3-16 | 58 | 116 | 130 |
| NT50-APU16-190 | 3-16 | 58 | 176 | 190 |
NT APU8, APU13, and APU16 are all different sizes of drill chuck holders. These holders are used to securely hold drill chucks in place during drilling operations. They are typically made of high-quality materials such as hardened steel to ensure durability and stability.
The APU8, APU13, and APU16 refer to the size of the drill chuck that the holder can accommodate. The APU8 is designed for drill chucks with a maximum capacity of 8mm, the APU13 for 13mm, and the APU16 for 16mm.
These drill chuck holders are commonly used in various industries such as woodworking, metalworking, and construction. They are compatible with a wide range of drilling machines and can be easily attached and detached for quick tool changes.
Overall, the NT APU8, APU13, and APU16 drill chuck holders are essential tools for professionals who require precise and secure drilling operations.
drill chuck holder is a device used to securely hold a drill chuck in place while drilling or performing other tasks. It is typically made of metal and consists of a shaft and a collar. The shaft is inserted into the drill chuck, and the collar is tightened to secure the chuck in place. This allows for easy and precise drilling, as the drill bit remains stable and centered while in use. Drill chuck holders are commonly used in woodworking, metalworking, and other industries where drilling is a common task.
