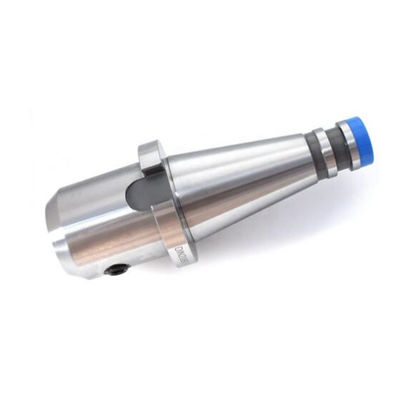

CNC NT30 Tool Holder DIN2080 NT30-SLA12-55 Weldon End Mill Holder

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: NT30,NT40,NT50
Minimum Order Quantity: 10PCS
Price: USD 20/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: CNC Machine Hardness: HRC48-52
Length: 50-400mm Material: 20CrMnTi
Package: Carton Product Name: DIN2080 NT Tool Holder
Size: Customized Standard: DIN2080
Surface Treatment: Sandblasting Tolerance: 0.005mm
Type: Tool Holder MOQ: 10 Pieces
Name: NT Tool Holder Packaging: Carton Box
Warranty: 1 Year Weight: 1.6kg
SIZE: NT30 SLA16
High Light:

Cnc NT30 Tool Holder

,

NT30 Tool Holder DIN2080

,

SLA12 Weldon End Mill Holder

NT30-SLA12-55 Weldon End Mill Tool Holder cnc tool holders DIN2080 end mill holder



NT Weldon SLN End Mill Tool Holder is a precision tool holder designed for securely holding end mills in milling machines. It features a Weldon shank, which is a type of flat-bottomed shank that provides increased stability and rigidity during machining operations.

The SLN End Mill Tool Holder is made from high-quality steel and has a hardened and ground surface for enhanced durability and precision. It is available in various sizes to accommodate different end mill diameters.NT Weldon SLN End Mill Tool Holder is commonly used in industries such as aerospace, automotive, and general machining. It is known for its excellent gripping strength, which ensures minimal runout and improved cutting performance.

Overall, the NT Weldon SLN End Mill Tool Holder is a reliable and efficient tool holder that is suitable for a wide range of milling appliCATEEion
s.

Model D D L G
NT30-SLA12-55 12 40 55 M12
NT30-SLA16-60 16 45 60 M12
NT30-SLA20-65 20 50 65 M12
NT30-SLA25-75 25 50 75 M12
NT40-SLA12-55 12 40 55 M12
NT40-SLA16-60 16 45 60 M16
NT40-SLA20-65 20 50 65 M16
NT40-SLA25-75 25 50 75 M16
NT40-SLA32-90 32 60 90 M16
NT40-SLA42-70 42 80 70 M16
NT50-SLA12-63 12 40 63 M24
NT50-SLA16-63 16 45 63 M24
NT50-SLA20-63 20 50 63 M24
NT50-SLA25-75 25 50 75 M24
NT50-SLA32-80 32 60 80 M24
NT50-SLA40-100 40 80 100 M24





CNC NT Side End Mill Holder DIN6359/1835B, apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining .Mechanical spindle and cutting tools and other accessories. High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.



NT End Mill Holder SpecifiCATEEions

1. Nt Tool Holder Material: Bearing steel, 20CrMnTi

2. NT End Mill Holder Hardness: 56-60HRC

3. Cnc Lathe Nt Tool Holder Taper: 7:24 taper level ≤ AT3

4. Cnc Tool Holder Carburization depth:> 0.8

5. Surface roughness: Ra <0.4

6. All CNC tool holders are cryogenic treatment (-196 ℃, more than 20 hours) so that the residual austenite precipitation of martensite and nano-carbide particles to improve the handle hardness, toughness and durability, reduce residual Internal stress

7. A long time heat treatment effectively remove residual stress during grinding

8. A variety of appearance: sandblasting, coating, flange appearance



CNC Machine Tools Side Lock End Mill Holder NT40-SLA10-50 DIN6359/1835B(Weldon)



NT END MILL HOLDER
