| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | NT30,NT40,NT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 20/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Material: | 20CrMnTi | Packaging: | Carton Box |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 1kg |
| SIZE: | NT40 MTA3 | Cutting Direction: | Right Hand |
| Number Of Inserts: | 2 | Overall Length: | 113 |
| Product Name: | NT Tool Holder | Size: | MTA3 |
| Style: | Morse Taper Adapter | Type: | Turning Tool Holder |
| High Light: | MTA Morse Taper Adapter,NT Tool Holder MT1,NT Tool Holder MT6 |
||

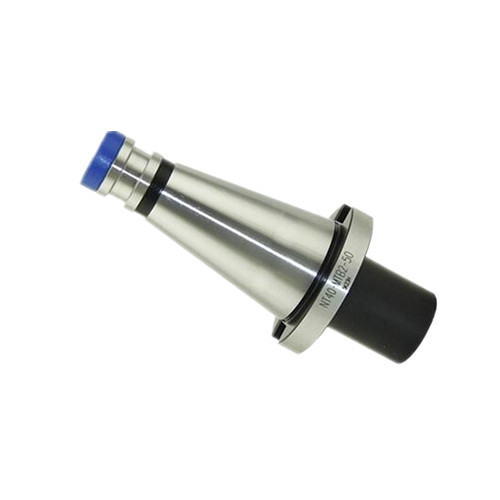

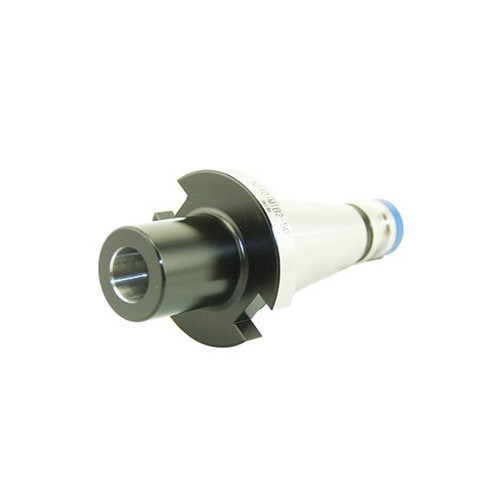

High Precision NT MTA Morse Taper Adapter, MT1-MT6,DIN228-1A TOOL HOLDER
High Precision NT MTA Morse Taper Adapter ,NT Morse Taper Adapter Size:MT1,MT2,MT3,MT4,MT5,MT6,suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.
NT Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly NT30 NT40 NT50... Etc.. Mold industry, and high-speed engraving machine, used more.
NT Mose Taper Adapter SpecifiCATEEions
1. NT Morse Taper Adapter Material:C45
2. NT Morse Taper Adapter Size:MT1,MT2,MT3,MT4,MT5,MT6
3. Morse type.Full size as your needs.
4. NT Morse Taper Adapter Contact Surface: ≥85%
5. NT Morse Taper Adapter Standard:DIN2080
6. High quality and competitive price,
7. Delivery in time can be guranteed since we have our own factory.
8. Strict inspection during the process of manufacturing.
| Model | 7;24.NO.S | MS.NO.T | D(mm) | d(mm) | D1(mm) | L(mm) |
| NT30-MS1 | ISO30 | MS1 | 25 | 12.065 | 31.75 | 113 |
| NT30-MS2 | MS2 | 32 | 17.78 | 118 | ||
| NT30-MS3 | MS3 | 40 | 23.825 | 138 | ||
| NT30-MS4 | MS4 | 48 | 31.267 | 212 | ||
| NT40-MS1 | ISO40 | MS1 | 25 | 12.065 | 44.45 | 138 |
| NT40-MS2 | MS2 | 32 | 17.78 | 143 | ||
| NT40-MS3 | MS3 | 40 | 23.825 | 158 | ||
| NT40-MS4 | MS4 | 48 | 31.267 | 186 | ||
| NT40-MS5 | MS5 | 61 | 44.399 | 273 | ||
| NT50-MS1 | ISO50 | MS1 | 25 | 12.065 | 69.85 | 172 |
| NT50-MS2 | MS2 | 32 | 17.78 | 182 | ||
| NT50-MS3 | MS3 | 40 | 23.825 | 192 | ||
| NT50-MS4 | MS4 | 48 | 31.267 | 197 | ||
| NT50-MS5 | MS5 | 61 | 44.399 | 232 |
High Precision NT MTA Morse Taper Adapter, MT1-MT6,DIN228-1A TOOL HOLDER,Morse Taper Adapter is a tool used to convert one size of Morse Taper to another size. It is commonly used in machine tool appliCATEEions, such as milling machines or lathes, where different size tooling may need to be used. The adapter typically consists of a male and female taper that can be inserted into each other, allowing for the connection of different size Morse Taper tooling. This allows for greater flexibility and versatility in tooling options for the machine.
Morse Taper Adapter (MTA) is a tool used to convert the Morse taper on a machine tool spindle to a different size or type of taper. This allows for the use of different tools or accessories that may not have a compatible taper with the machine tool.
MTA typically consists of two parts: the male adapter and the female adapter. The male adapter is inserted into the machine tool spindle and has a Morse taper on one end and a different taper on the other end. The female adapter is inserted into the male adapter and has the opposite taper, allowing for the attachment of tools or accessories with the desired taper.
MTA adapters are commonly used in industries such as metalworking, woodworking, and machining, where different types of tools and accessories may need to be used with a machine tool. They provide flexibility and versatility in tooling options, allowing for increased efficiency and productivity.
