| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | NT30,NT40,NT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 20/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Material: | 20CrMnTi | Packaging: | Carton Box |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 2.3kg |
| SIZE: | NT50 MS3 | Cutting Direction: | Right Hand |
| Number Of Inserts: | 2 | Overall Length: | 113 |
| Product Name: | NT Tool Holder | Size: | MTA3 |
| Style: | Morse Taper Adapter | Type: | Turning Tool Holder |
| High Light: | NT Morse Taper Adapter,20CrMnTi Morse Taper Adapter,DIN2080 Morse Taper Sleeve |
||

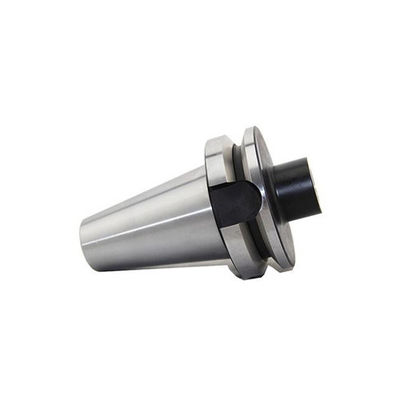

20CrMnTi Material NT Morse Taper Adapter, DIN2080 Standard morse taper sleeve
NT Shank Morse Taper Adapter is a tool used in machining and metalworking appliCATEEions. It is designed to convert the NT (Nose Taper) shank of a tool into a Morse Taper shank, allowing it to be used with machines or equipment that require Morse Taper tooling.
The Morse Taper system is a standardized taper used in various machine tools, such as lathes, milling machines, and drill presses. It allows for quick and secure tool changes, ensuring accurate and efficient machining operations. NT Shank Morse Taper Adapter typically consists of a cylindrical body with an NT taper on one end and a Morse Taper on the other end. The adapter is inserted into the machine spindle or tailstock, and the tool with an NT shank is inserted into the Morse Taper end of the adapter. The adapter provides a secure connection between the tool and the machine, allowing for precise machining operations.These adapters are available in different sizes and tapers to accommodate various tooling requirements. It is essential to select the correct adapter size and taper to ensure compatibility between the tool and the machine.
Overall, the NT Shank Morse Taper Adapter is a versatile tool that enables the use of NT shank tools with Morse Taper machines, expanding the range of tooling options and enhancing productivity in machining operations.
| Model | 7；24.NO.S | MS.NO.T | D(mm) | d(mm) | D1(mm) | L(mm) |
| NT30-MS1 | ISO30 | MS1 | 25 | 12.065 | 31.75 | 113 |
| NT30-MS2 | ISO30 | MS2 | 32 | 17.78 | 31.75 | 118 |
| NT30-MS3 | ISO30 | MS3 | 40 | 23.825 | 31.75 | 138 |
| NT30-MS4 | ISO30 | MS4 | 48 | 31.267 | 31.75 | 212 |
| NT40-MS1 | ISO40 | MS1 | 25 | 12.065 | 44.45 | 138 |
| NT40-MS2 | ISO40 | MS2 | 32 | 17.78 | 44.45 | 143 |
| NT40-MS3 | ISO40 | MS3 | 40 | 23.825 | 44.45 | 158 |
| NT40-MS4 | ISO40 | MS4 | 48 | 31.267 | 44.45 | 186 |
| NT40-MS5 | ISO40 | MS5 | 61 | 44.399 | 44.45 | 273 |
| NT50-MS1 | ISO50 | MS1 | 25 | 12.065 | 69.85 | 172 |
| NT50-MS2 | ISO50 | MS2 | 32 | 17.78 | 69.85 | 182 |
| NT50-MS3 | ISO50 | MS3 | 40 | 23.825 | 69.85 | 192 |
| NT50-MS4 | ISO50 | MS4 | 48 | 31.267 | 69.85 | 197 |
| NT50-MS5 | ISO50 | MS5 | 61 | 44.399 | 69.85 | 232 |
NT Shank MTA MTB CNC Mill Arbor Morse Taper Adapter ,Morse Taper Sleeve with Drawbar is to mount tools with mose tapers and drawbar thread.,suitable for clamping type DIN228-1B with flat tail Morse tool holder. high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.NT Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly NT30 NT40 NT50... Etc.. Mold industry, and high-speed engraving machine, used more.
1.NT Morse Taper Adapter Model NO.: NT MTB Morse Taper Tool holder
2.NT Morse Taper Adapter AppliCATEEion: Milling Cutter
3.NT Morse Taper Adapter Precision: <0.005mm
4.Color: Shiny Firish
5.NT Morse Taper Adapter Hardness: HRC58-62
6.NT Morse Taper Adapter Taper Tolerance: At3
7.Standard: DIN2080
8.Heat Treatment: Sand Blast or Black
NT Morse Taper Adapter Usage
Morse Taper Sleeve with Drawbar is to mount tools with mose tapers and drawbar thread.
