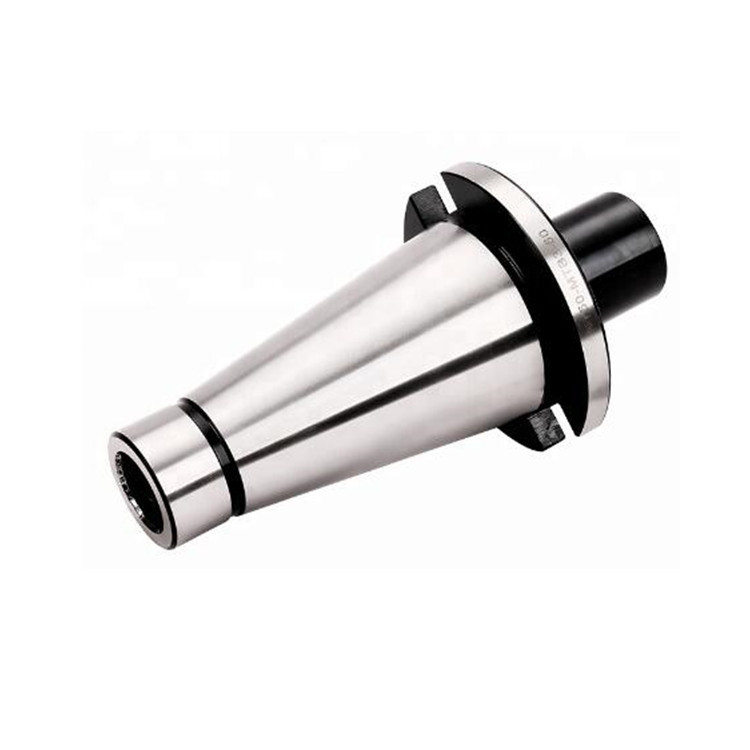

MTA MS2 NT Tool Holder NT30 Morse Taper Adapter Right Hand

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: NT30,NT40,NT50
Minimum Order Quantity: 10PCS
Price: USD 20/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Material: 20CrMnTi Packaging: Carton Box
Warranty: 1 Year Weight: 0.6kg
SIZE: NT30 MS2 Cutting Direction: Right Hand
Number Of Inserts: 2 Overall Length: 80
Product Name: NT Tool Holder Size: MS2
Style: Morse Taper Adapter Type: Turning Tool Holder
High Light:

MTA MS2 NT Tool Holder


NT30 Morse Taper Adapter


MS2 NT30 Tool Holder


NT Spindle for MTA Morse Taper Adapter Lathe Tool Holder MTA NT Morse Taper Adapter


NT Standard Morse Taper Adapter With Drawbar ,The tool holder is used for Morse's flat tailless backward pulling tools, milling cutters and reamers,Nt30-mtb2, nt30-mtb3 and nt40-mtb4 can only be locked with an extended pull rod, and other specifiCATEEions can be tightened with a built-in pull pin to tighten the Morse shank and tool diameter of the milling cutter.NT Morse Taper Adapter MTB Collet Chuck with Drawbar,The internal thread hole and the rear end face of the toolholder are formed by one-time processing with the NC lathe, and the tolerance grade of the external cone is at3 (use the air momentum meter to detect the cone shank).


1.NT Morse Taper Adapter Model NO.: NT MTB Morse Taper Tool holder

2.NT Morse Taper Adapter AppliCATEEion: Milling Cutter

3.NT Morse Taper Adapter Precision: <0.005mm

4.Color: Shiny Firish

5.NT Morse Taper Adapter Hardness: HRC58-62

6.NT Morse Taper Adapter Taper Tolerance: At3

7.Standard: DIN2080

8.Heat Treatment: Sand Blast or Black
NT Morse Taper Adapter Usage

Morse Taper Sleeve with Drawbar is to mount tools with mose tapers and drawbar thread.



NT spindle for an MTA (Morse Taper Adapter) is a tool used in machining operations to convert a machine's spindle from the NT (Nose Taper) standard to the MTA standard. This allows for the use of MTA tooling on a machine that is originally designed for NT tooling.

The MTA Morse Taper Adapter is a type of tool holder that features a Morse Taper shank on one end and a different tool holding mechanism on the other end. This allows for the use of various types of tooling, such as collets, end mill holders, or drill chucks, with machines that have a Morse Taper spindle.

The NT spindle for MTA Morse Taper Adapter is specifically designed to be compatible with the NT spindle standard and allows for the secure attachment of the MTA adapter. It typically features a precision ground interface to ensure accurate tool positioning and a strong clamping mechanism to hold the adapter in place during machining operations.

Model 7;24.NO.S MS.NO.T D(mm) d(mm) D1(mm) L(mm)
NT30-MS2 ISO30 MS2 32 17.78 31.75 118
NT30-MS3 ISO30 MS3 40 23.825 31.75 138
NT30-MS4 ISO30 MS4 48 31.267 31.75 212
NT40-MS1 ISO40 MS1 25 12.065 44.45 138
NT40-MS2 ISO40 MS2 32 17.78 44.45 143
NT40-MS3 ISO40 MS3 40 23.825 44.45 158
NT40-MS4 ISO40 MS4 48 31.267 44.45 186
NT40-MS5 ISO40 MS5 61 44.399 44.45 273
NT50-MS1 ISO50 MS1 25 12.065 69.85 172
NT50-MS2 ISO50 MS2 32 17.78 69.85 182
NT50-MS3 ISO50 MS3 40 23.825 69.85 192
NT50-MS4 ISO50 MS4 48 31.267 69.85 197
NT50-MS5 ISO50 MS5 61 44.399 69.85 232
