| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | NT30,NT40,NT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 20/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Material: | 20CrMnTi | Packaging: | Carton Box |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 3kg |
| SIZE: | NT50 MS5 | Cutting Direction: | Right Hand |
| Number Of Inserts: | 2 | Overall Length: | 105 |
| Product Name: | NT Tool Holder | Size: | MS5 |
| Style: | Morse Taper Adapter | Type: | Turning Tool Holder |
| High Light: | NT Standard Morse Taper Adapter,Morse Taper Adapter NT50,MS5 NT50 Tool Holder |
||

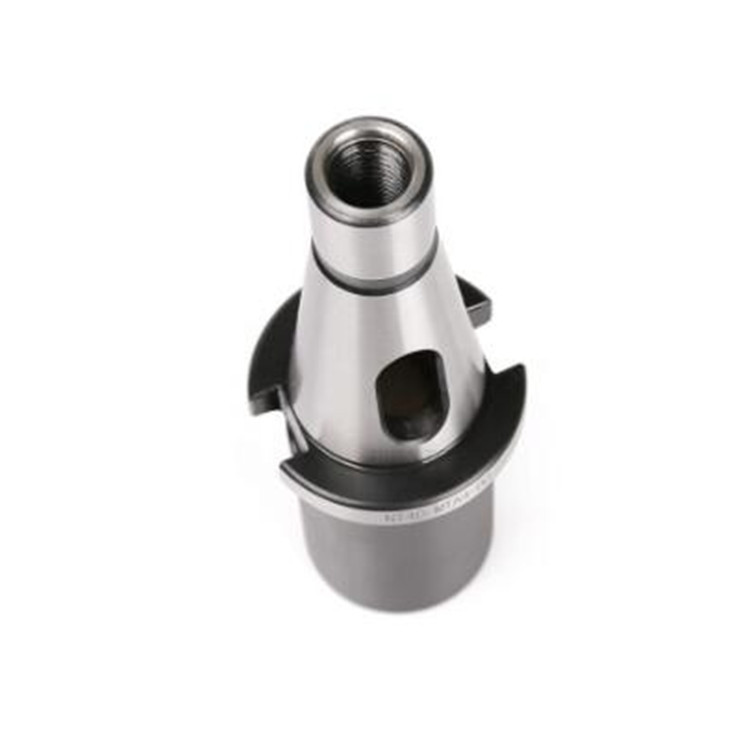

NT Standard Morse Taper Adapter With Drawbar CNC Turning Holder NT Morse Taper Adapter
CNC turning holder is a tool used in CNC turning machines to hold and secure the workpiece during the machining process. It is designed to provide stability and precision while rotating the workpiece for cutting, drilling, or shaping operations.
The NT Morse Taper adapter is a specific type of holder that is used to connect the turning holder to the machine spindle. The Morse Taper is a standardized taper used in machine tool spindles for secure and accurate tool holding. The NT (Nose Taper) designation refers to the specific type of Morse Taper adapter used in CNC turning machines.
The CNC turning holder with NT Morse Taper adapter allows for quick and easy tool changes, as well as precise and reliable machining operations. It is commonly used in industries such as automotive, aerospace, and manufacturing, where high precision and efficiency are required.
Overall, the CNC turning holder with NT Morse Taper adapter is a crucial tool in the CNC turning process, ensuring accurate and efficient machining operations.
High quality adapter sleeves NT MTA morse taper holder with tang ,NT Morse Taper Adapter Hardness: HRC58-62,suitable for clamping type DIN228-1B with flat tail Morse tool holder. high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.NT Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly NT30 NT40 NT50... Etc..Lathe Accessories Morse Taper Adapter NT Tool Holder,The raw material is 40Cr high carbon steel, and the blackened part is finely ground. The tool shank has stable performance and long service life. It improves the hardness of the tool shank, and the service life of the tool shank is long, reducing your cost.
1.NT Morse Taper Adapter Model NO.: NT MTB Morse Taper Tool holder
2.NT Morse Taper Adapter AppliCATEEion: Milling Cutter
3.NT Morse Taper Adapter Precision: <0.005mm
4.Color: Shiny Firish
5.NT Morse Taper Adapter Hardness: HRC58-62
6.NT Morse Taper Adapter Taper Tolerance: At3
7.Standard: DIN2080
8.Heat Treatment: Sand Blast or Black
NT Morse Taper Adapter Usage
Morse Taper Sleeve with Drawbar is to mount tools with mose tapers and drawbar thread.
| Model | 7；24.NO.S | MS.NO.T | D(mm) | d(mm) | D1(mm) | L(mm) |
| NT30-MS1 | ISO30 | MS1 | 25 | 12.065 | 31.75 | 113 |
| NT30-MS2 | ISO30 | MS2 | 32 | 17.78 | 31.75 | 118 |
| NT30-MS3 | ISO30 | MS3 | 40 | 23.825 | 31.75 | 138 |
| NT30-MS4 | ISO30 | MS4 | 48 | 31.267 | 31.75 | 212 |
| NT40-MS1 | ISO40 | MS1 | 25 | 12.065 | 44.45 | 138 |
| NT40-MS2 | ISO40 | MS2 | 32 | 17.78 | 44.45 | 143 |
| NT40-MS3 | ISO40 | MS3 | 40 | 23.825 | 44.45 | 158 |
| NT40-MS4 | ISO40 | MS4 | 48 | 31.267 | 44.45 | 186 |
| NT40-MS5 | ISO40 | MS5 | 61 | 44.399 | 44.45 | 273 |
| NT50-MS2 | ISO50 | MS2 | 32 | 17.78 | 69.85 | 182 |
| NT50-MS3 | ISO50 | MS3 | 40 | 23.825 | 69.85 | 192 |
| NT50-MS4 | ISO50 | MS4 | 48 | 31.267 | 69.85 | 197 |
| NT50-MS5 | ISO50 | MS5 | 61 | 44.399 | 69.85 | 232 |
