G6.3 G2.5 NT Tool Holder Carbide Drill Chuck Taper Tool Holder

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: NT30,NT40,NT50
Minimum Order Quantity: 10PCS
Price: USD 20/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Coating: TiN Connection: Weldon
Cutting Direction: Right Hand Cutting Edge Angle: 90°
Flutes: 2 Helix Angle: 30°
Material: Carbide Insert Size: 16
Name: NT APU Tool Holder Overall Length: 120
Shank Diameter: 16 MODEL: DRILL CHUCK
Weight: 2.5 AppliCATEion: Cutting Tools
High Light:

G2.5 NT Tool Holder

,

G6.3 NT Tool Holder

,

Drill Chuck Taper Tool Holder

NT APU Drill Chuck for 0.5-16mm Bits, G6.3/G2.5 Balance drill chuck taper tool holder



NT50 APU Integrated Keyless Drill Chuck ,NT APU drill chuck Material: high quality carburizing alloy steel, black treatment and fine grinding .AppliCATEEion range: clip diameter: 0.5-16mm bit .Mechanical spindle and cutting tools and other accessories.High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.
SpecifiCATEEion:
1.NT APU drill chuck Product Type: NT30 / 40/50-APU (see model below)
2.NT APU drill chuck Material: high quality carburizing alloy steel, black treatment and fine grinding
3.NT APU drill chuck Taper Shank: Tolerance Level <AT3
4.NT APU drill chuck Hardness: HRC 56-58
5.Carburizing depth: 0.8mm ± 0.2mm
6.Maximum beating: <0.005mm = 5um
7.Surface roughness: Ra <0.005 mm
8.NT APU drill chuck AppliCATEEion: clamping the diameter of 0.5-16mm drill



Model Clamping Range D L
Min Max
NT30-APU08-80 1-8 36.3 75 82
NT30-APU13-100 1-13 51.5 97 104.5

NT40-APU08-85 1-8 36.3 79 86.5
NT40-APU13-110 1-13 51.5 98 109
NT40-APU16-130 3-16 58 116 130

NT50-APU08-95 1-8 36.3 90 97.5
NT50-APU13-120 1-13 51.5 109 120
NT50-APU13-180 1-13 51.5 169 180
NT50-APU16-130 3-16 58 116 130
NT50-APU16-190 3-16 58 176 190


-- Integrated design of the rob and collet, can avoid the collet and rob separate
-- High Accurancy, strong grasp force , and high stability
-- Esay Broken parts are dealt by quenching
-- Self-tightening , grasp the collet the collet slightly, when drilling , grasp force is enhencing with the torque in creasing and develop the drill remove
-- Can do dynamic balance est G6.3 G2.5

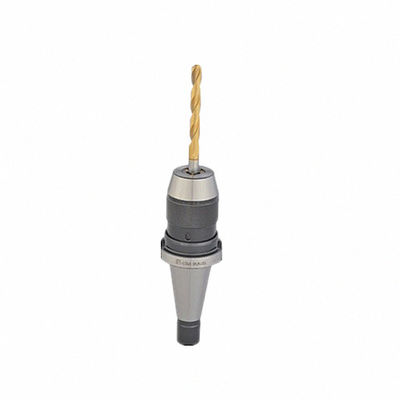

NT APU DRILL CHUCK



NT APU Integrated Keyless Drill Chuck is a versatile and convenient tool used for securely holding drill bits in place during drilling operations. It features an integrated keyless design, eliminating the need for a separate chuck key.

The APU (Automatic Precision Universal) system ensures quick and easy bit changes with a simple twist of the chuck sleeve. This allows for efficient and time-saving tool changes, increasing productivity in various drilling appliCATEEions.

The keyless design of the chuck eliminates the risk of losing or misplacing the chuck key, making it a more user-friendly option. It also provides a secure grip on the drill bit, reducing the chances of slippage during drilling, ensuring accurate and precise results.

The NT APU Integrated Keyless Drill Chuck is compatible with a wide range of drill machines and can accommodate different sizes of drill bits. It is made from high-quality materials, ensuring durability and long-lasting performance even in demanding work environments.

Overall, the NT APU Integrated Keyless Drill Chuck is a reliable and efficient tool for professionals and DIY enthusiasts alike, providing convenience, accuracy, and ease of use in various drilling appliCATEEions.
