| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | NT30,NT40,NT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 20/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| Coating: | TiN | Connection: | Weldon |
|---|---|---|---|
| Cutting Direction: | Right Hand | Cutting Edge Angle: | 90° |
| Flutes: | 2 | Helix Angle: | 30° |
| Material: | Carbide | Insert Size: | 13 |
| Name: | NT APU Tool Holder | Overall Length: | 110 |
| Shank Diameter: | 13 | MODEL: | DRILL CHUCK |
| Weight: | 1.6 | AppliCATEion: | Cutting Tools |
| Cutting Process: | Milling Cutter | SIZE: | NT40-APU16 |
| High Light: | CNC Lathe NT40 Tool Holder,NT40 Tool Holder APU13,100 Self Tightening Drill Chuck |
||

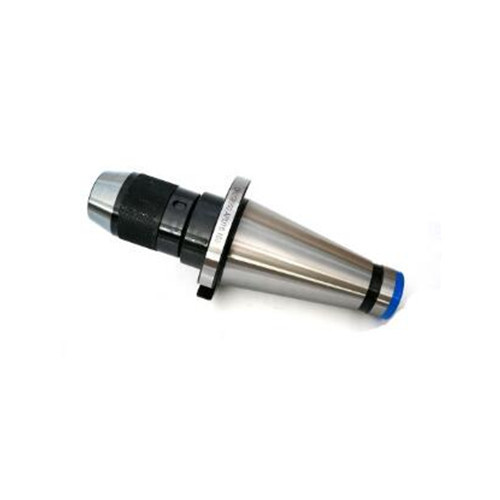

NT40 APU13 100 Self-Tightening Drill Chuck for CNC Lathe Machine
NT30 NT40 APU13 APU16 Integrated Drill Chuck For CNC Lathe Machine ,NT APU Drill Chuck Self-tightening , grasp the collet the collet slightly, when drilling , grasp force is enhencing with the torque in creasing and develop the drill remove.AppliCATEEion range: clip diameter: 0.5-16mm bit .Mechanical spindle and cutting tools and other accessories.High Precision NT shank Tool Holder ,balanced G6.3 or G2.5 For choose.
-- NT APU Drill Chuck Integrated design of the rob and collet, can avoid the collet and rob separate
-- NT APU Drill Chuck High Accurancy, strong grasp force , and high stability
-- NT APU Drill Chuck Esay Broken parts are dealt by quenching
-- NT APU Drill Chuck Self-tightening , grasp the collet the collet slightly, when drilling , grasp force is enhencing with the torque in creasing and develop the drill remove
-- NT APU Drill Chuck Can do dynamic balance est G6.3 G2.5
| Model | Clamping Range | D | L | |
| Min | Max | |||
| NT30-APU08-80 | 1-8 | 36.3 | 75 | 82 |
| NT30-APU13-100 | 1-13 | 51.5 | 97 | 104.5 |
| NT40-APU08-85 | 1-8 | 36.3 | 79 | 86.5 |
| NT40-APU13-110 | 1-13 | 51.5 | 98 | 109 |
| NT40-APU16-130 | 3-16 | 58 | 116 | 130 |
| NT50-APU08-95 | 1-8 | 36.3 | 90 | 97.5 |
| NT50-APU13-120 | 1-13 | 51.5 | 109 | 120 |
| NT50-APU13-180 | 1-13 | 51.5 | 169 | 180 |
| NT50-APU16-130 | 3-16 | 58 | 116 | 130 |
| NT50-APU16-190 | 3-16 | 58 | 176 | 190 |
integrated drill chuck is a type of chuck that is built directly into a drill. It is a mechanism that holds the drill bit in place and allows it to rotate while drilling.
The integrated drill chuck typically consists of three jaws that can be adjusted to grip the drill bit securely. These jaws are controlled by a key or a keyless system, allowing the user to tighten or loosen the chuck as needed.
One of the main advantages of an integrated drill chuck is its convenience. Since it is built into the drill, there is no need for a separate chuck attachment or additional tools to change drill bits. This makes it easier and quicker to switch between different sizes or types of drill bits during a project.
Integrated drill chucks also provide better stability and accuracy compared to removable chucks. The chuck is directly connected to the drill, which reduces the chances of wobbling or slipping during drilling. This ensures more precise and consistent drilling results.
Furthermore, integrated drill chucks are often designed to be more durable and long-lasting. They are built to withstand the rigors of regular drilling and can handle higher torque and pressure without becoming loose or damaged.
Overall, an integrated drill chuck is a convenient and reliable feature that enhances the functionality and performance of a drill. It simplifies the process of changing drill bits and provides better stability and accuracy during drilling operations.
