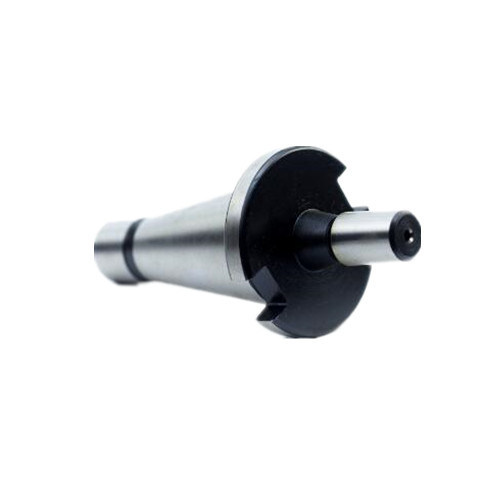

NT40-SEMC27-35 Combi Shell End Mill Arbor For CNC Machine

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: NT30,NT40,NT50
Minimum Order Quantity: 10PCS
Price: USD 20/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Features: High Precision, High Rigidity, Long Service Life Package: Plastic Box
Brand: QFMH Coolant Through: Yes
Material: 20CrMnTi Product Name: NT Tool Holder
Length: 100mm-200mm Shank Type: DIN2080
Size: NT30 SEMC27 Taper Angle:
Type: NT30 Tool Holder Weight: 1.1
Accuracy: 0.005mm AppliCATEion: CNC Machine
Hardness: HRC50-56 Roughness: Ra0.4
Shank Diameter: 20-50mm
High Light:

Combi Shell End Mill Arbor

,

NT40 Shell End Mill Arbor

,

SEMC27 end mill arbor

NT30/40-SEMC27-35 High-Precision Combi Shell End Mill Arbor for CNC Machine



NT Combi Shell End Mill Arbor The tool holder body can also specify the cooling method of AD+B(A: no internal cooling hole; type AD: type AD+B: Water Center; center of water and water flange)The handle can be specified dynamic balance G6.3 or G2.5

NT Combi Shell End Mill Arbor SpecifiCATEEions
1.Nt Tool Holder Model: NT30/40-SEMC (specific model reference to the bottom of the table)
2.NT Combi Shell End Mill Arbor Material: high quality Carburizing Steel Blackening synthesis, and fine grinding

3.NT Combi Shell End Mill Arbor Taper shank: tolerance level <AT3
4.Cnc Nt End Mill Arbor Hardness: 56-58 HRC
5.Nt Shank End Mill Arbor Carburizing depth: 0.8mm + 0.2mm
6.Maximum beat: <0.005mm
7.Surface roughness: Ra<0.005mm





Model No. d D L L1
NT30-SEMC16-35 16 32 17 35
NT30-SEMC22-35 22 40 19 35
NT30-SEMC27-35 27 48 21 35
NT30-SEMC32-50 32 58 24 50
NT40-SEMC16-52 16 32 17 52
NT40-SEMC22-52 22 40 19 52
NT40-SEMC27-52 27 48 21 52
NT40-SEMC32-52 32 58 24 52
NT40-SEMC40-52 40 70 27 52
NT50-SEMC16-55 16 32 17 55
NT50-SEMC22-55 22 40 19 55
NT50-SEMC27-55 27 48 21 55
NT50-SEMC32-55 32 58 24 55
NT50-SEMC40-55 40 70 27 55



Combi Shell End Mill Arbor is a tool used in CNC machines for holding shell end mills. It is designed to securely hold the end mill in place during milling operations. The arbor is typically made of high-quality steel and has a precision ground taper or cylindrical shank that fits into the spindle of the CNC machine.

The Combi Shell End Mill Arbor has a combination of features that make it versatile and efficient. It usually has a threaded hole or a drawbar thread on the end to allow for easy mounting and removal of the shell end mill. Some arbors also have a coolant through feature, which allows for coolant to be directed through the arbor and onto the cutting tool for better chip evacuation and cooling.

The shell end mill is held in place on the arbor using a set of clamping screws or a clamping nut. These clamping mechanisms ensure that the end mill is securely held in place during machining operations, preventing any movement or vibration that could affect the accuracy and quality of the machined part.

Overall, the Combi Shell End Mill Arbor is a crucial tool for CNC machining operations that involve shell end mills. It provides a reliable and secure way to hold the end mill in place, allowing for precise and efficient milling operations.



NT Combi Shell End Mill Arbor



tool holder is a device used to organize and store tools in a convenient and accessible manner. It is designed to securely hold various types of tools, such as wrenches, screwdrivers, pliers, hammers, and more. Tool holders come in different forms, including tool belts, tool bags, toolboxes, tool racks, and tool cabinets. They are commonly used in workshops, garages, construction sites, and other work environments where tools are frequently used. Tool holders help keep tools organized, prevent loss or damage, and make it easier to find and retrieve the required tools when needed.
