| Place of Origin: | CHINA |
|---|---|
| Brand Name: | qfmh |
| Model Number: | 6mm,10mm,13mm,16mm |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 5/PCS |
| Packaging Details: | CARTON |
| Delivery Time: | 3DAYS |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 10000PCS/MONTH |
| Chuck Type: | Keyless | Color: | Black |
|---|---|---|---|
| Jaw Type: | 3-Jaw | Material: | Steel |
| Mount Type: | Threaded | Package: | Carton Box |
| Product Name: | Drill Chuck | Thread Size: | 1/2-20 |
| Milling Cutter Type: | Milling | ||
| High Light: | 3 Jaw Keyless Drill Chuck,Keyless Drill Chuck 13mm,13mm keyless chuck |
||

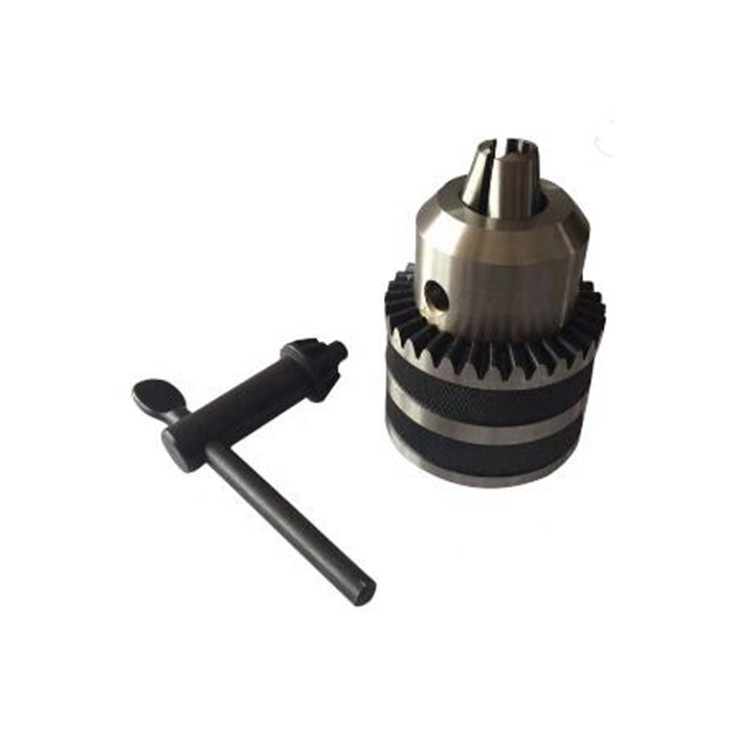

13mm Key Type Drill Chuck for milling machine Threaded & Taper Mounted Key Type Drill Chuck
13mm Key Type Drill Chuck for milling machine ,Keytype Drill Chuck AppliCATEEion:Recommended for light, medium and heavy-duty portable bench or floor mounted power tiils. Taper hole connection are mainly B10, B12, B16, B18, B22 and JT0, JT2, JT3, JT6, JT10, JT33 and other specifiCATEEions. Threaded connection is mainly used for electric drill, drilling machine is mainly used for connecting taper hole.Drill chuck is connected with the tool, is used to clamp the handle type tool accessories. There are two connection ways: threaded connections and taper connection. According to the specifiCATEEions of the chuck now, specifiCATEEions of the main thread of the 3/8-24UNF, 1/2-20UNF, 5/8-16UN, M12 * 1.25
Key Type Drill Chuck SpecifiCATEEions
1. light duty or heavy duty.
2. taper mounted or thread mounted.
3. Rang offer from 1mm-16mm
4. Max.10.000 RPM without further balance
5. Precision reach 0.02mm to 0.03mm
6. separate drill chuck or integrated drill chuck
Drill Chuck Features:
1. High precision threaded and tapered tightly mounts on the tools.
2. Sleeve, key hole and key are shaped by quenching.
3. Jaws are specifically engineered for tight tolerance production drilling.
4. Sleeve teeth and key holesare are shaped by cold pressing.
5. Drill Press Chuck Super precision and durable.
| 1. Thread Mount: Unf. Metric | |||
| Model | Capacity | Mount | |
| mm | Inch | ||
| J3110M | 1.0-10 | 1/32-3/8 | 3/8-24UNF |
| J3110M | 1.0-10 | 1/32-3/8 | 1/2-20UNF |
| J3113M | 1.0-13 | 1/32-1/2 | 1/2-20UNF |
| 2. Moese Taper Mount | |||
| Model | Capacity | Mount | |
| mm | Inch | ||
| J2110H | 1.0-10 | 1/32-3/8 | B12 |
| J2113H | 1.0-13 | 1/32-1/2 | B16 |
| J2516M | 3.0-16 | 1/8-5/8 | B16 |
| J2516M | 3.0-16 | 1/8-5/8 | B18 |
| J2116H | 1.0-16 | 1/32-5/8 | B16 |
| J2116H | 1.0-16 | 1/32-5/8 | B18 |
| J2120H | 5.0-20 | 3/16-3/4 | B22 |
| 3. Jacquard Taper Mount | |||
| Model | Capacity | Mount | |
| mm | Inch | ||
| J2210H | 1.0-10 | 1/32-3/8 | JT2 |
| J2213H | 1.0-13 | 1/32-1/2 | JT33 |
| J2213H | 1.0-13 | 1/32-1/2 | JT6 |
| J2616M | 3.0-16 | 1/8-5/8 | JT3 |
| J2616M | 3.0-16 | 1/8-5/8 | JT33 |
| J2616M | 3.0-16 | 1/8-5/8 | JT6 |
| J2216AH | 1.0-16 | 1/32-5/8 | JT3 |
| J2220 | 5.0-20 | 3/16-3/4 | JT3 |
threaded and taper mounted key type drill chuck is a type of chuck that is used to hold drill bits securely in place during drilling operations.
The chuck has a threaded shank that allows it to be screwed onto the spindle of a drilling machine. This threaded connection ensures that the chuck remains securely attached to the machine during operation.
The chuck also features a taper mount, which is a conical-shaped connection that provides additional stability and accuracy. The taper mount allows the chuck to be tightly fitted onto the spindle, ensuring that there is no movement or wobbling during drilling.
To secure the drill bit in the chuck, a key is used. The key is inserted into the keyway of the chuck and turned, causing the jaws of the chuck to tighten around the drill bit. This key type mechanism allows for quick and easy bit changes, as the chuck can be loosened and tightened with a simple turn of the key.
Overall, threaded and taper mounted key type drill chucks are a popular choice for drilling operations due to their secure and stable holding capabilities, as well as their ease of use for bit changes.
