| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Machine | Color: | Silver |
|---|---|---|---|
| Installation Method: | Screw | Length: | 100mm |
| Material: | 20CrMnTi | Packaging: | Carton Box |
| Product Name: | BT Tool Holder | Tolerance: | 0.005mm |
| Weight: | 1.2kg | Brand: | BT |
| Type: | Cutter | Warranty: | 1 Year |
| Standards: | MAS403 | Cutting Process: | Milling Cutter |
CNC milling machine collet chuck BT ER TYPE tool holder,ER collet chucks handle a wide range of machining jobs,Simply choose the right size collet for the job, set tool depth, and tighten the collet nut and pull stud to the proper torque using a torque wrench.The pre-balance can reach G6.3 8,000 rpm, Dynamic balanced by Haimer machine G2.5 RPM25,000 is available.Our surface of roughness are maintained to Mirror Finish.ER16 and ER20 are Hex Nut, ER25-ER40 are UM nut.

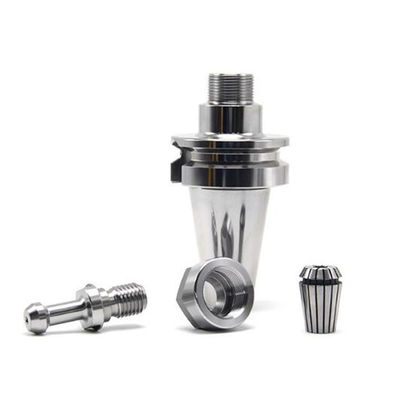

BT - ER TOOL HOLDER
1.Material: 20CrMnTi(After heat treatment, it has rigid hardness and toughness, better grinding quality, good flexibility and longer using life span)
2.Dynamic Balance: G2.5 20000rpm
3.HRC: 55-60°;Accuracy of deviation:below 5μ (4D length)
4.Please put the collet into the nut and then put them into the body together during using.
5.The tool holder is through-hole, which is better for water to get through and anti-vibrant.
6.The nut has preinstalled Dynamic balancing design, so it can be used for RPM10,000.
| Model No. | L | L1 | D | d1 | d2 | d3 | T | KGS | ||
| BT30-ER11-40 | 88.4 | 40 | 46 | 19 | 11 | 19 | M6*1.0P | 0.4 | ||
| BT30-ER11-60 | 108.4 | 60 | 0.45 | |||||||
| BT30-ER16-70 | 118.4 | 70 | 28 | 16 | 28 | M10*1.5P | 0.55 | |||
| BT30-ER16-100 | 148.4 | 100 | 0.8 | |||||||
| BT30-ER16-120 | 168.4 | 120 | 0.95 | |||||||
| BT30-ER20-70 | 118.4 | 70 | 34 | 20 | 34 | M12*1.75P | 0.75 | |||
| BT30-ER20-100 | 148.4 | 100 | 0.9 | |||||||
| BT30-ER20-135 | 183.4 | 135 | 1.15 | |||||||
| BT30-ER25-70 | 118.4 | 70 | 42 | 25 | 42 | M16*2P | 0.7 | |||
| BT30-ER25-100 | 148.4 | 100 | 1.45 | |||||||
| BT30-ER32-70 | 118.4 | 70 | 50 | 32 | 45 | 0.85 | ||||
| BT30-ER32-100 | 148.4 | 100 | 1 | |||||||
| BT30-ER40-80 | 128.4 | 80 | 63 | 40 | 53 | 1.1 | ||||
| BT40-ER11-60 | 125.4 | 60 | 63 | 19 | 11 | 19 | M6*1P | 1.2 | ||
| BT40-ER11-100 | 165.4 | 100 | 1.3 | |||||||
| BT40-ER16-70 | 135.4 | 70 | 28 | 16 | 28 | M10*1.5P | 0.36 | |||
| BT40-ER16-100 | 165.4 | 100 | 1.54 | |||||||
| BT40-ER16-125 | 190.4 | 125 | 1.7 | |||||||
| BT40-ER16-150 | 215.4 | 150 | 1.86 | |||||||
| BT40-ER20-70 | 135.4 | 70 | 34 | 20 | 34 | M12*1.75P | 1.7 | |||
| BT40-ER20-100 | 165.4 | 100 | 1.8 | |||||||
| BT40-ER20-135 | 200.4 | 135 | 2 | |||||||
| BT40-ER20-150 | 215.4 | 150 | 2.1 | |||||||
| BT40-ER25-70 | 135.4 | 70 | 42 | 25 | 42 | M16*2P | 1.9 | |||
| BT40-ER25-100 | 165.4 | 100 | 2.25 | |||||||
| BT40-ER25-125 | 190.4 | 125 | 2.5 | |||||||
| BT40-ER25-150 | 215.4 | 150 | 2.75 | |||||||
| BT40-ER32-70 | 135.4 | 70 | 50 | 32 | 50 | M16*2P | 2.5 | |||
| BT40-ER32-100 | 165.4 | 100 | 2.8 | |||||||
| BT40-ER32-150 | 215.4 | 150 | 3.05 | |||||||
| BT40-ER40-80 | 145.4 | 80 | 63 | 40 | 63 | 2.5 | ||||
| BT40-ER40-100 | 165.4 | 100 | 3.1 | |||||||
| BT40-ER40-120 | 185.4 | 120 | 3.7 | |||||||
| BT40-ER40-150 | 215.4 | 150 | 4.1 | |||||||
| BT40-ER50-85 | 150.4 | 85 | 78 | 50 | 59 | M24*3P | 3.1 | |||
| BT40-ER50-100 | 165.4 | 100 | 3.2 | |||||||
| SpecifiCATEEion | Chucking dia d | d1 | d2 | L | L1 | M | Nut | Collet | Spanner | Weight(KG) |
| BT50-ER16-100 | 3-10 | 28 | 28 | 100 | 62 | M22*1.5 | ER16A | ER16 | ER16A | 4.3 |
| BT50-ER16-150 | 150 | 112 | 4.5 | |||||||
| BT50-ER20-100 | 3-13 | 34 | 34 | 100 | 62 | M25*1.5 | ER20A | ER20 | ER20A | 4.3 |
| BT50-ER20-150 | 150 | 112 | 4.7 | |||||||
| BT50-ER25-100 | 3-16 | 42 | 40 | 100 | 62 | M32*1.5 | ER25UM | ER25 | ER25UM | 4.4 |
| BT50-ER25-150 | 150 | 112 | 5.5 | |||||||
| BT50-ER32-100 | 3-20 | 50 | 50 | 100 | 62 | M40*1.5 | ER32UM | ER32 | ER32UM | 4.8 |
| BT50-ER32-150 | 150 | 112 | 5.3 | |||||||
| BT50-ER40-100 | 6-26 | 63 | 60 | 100 | 62 | M50*1.5 | ER40UM | ER40 | ER40UM | 4.4 |
| BT50-ER40-150 | 150 | 112 | 5.5 |
