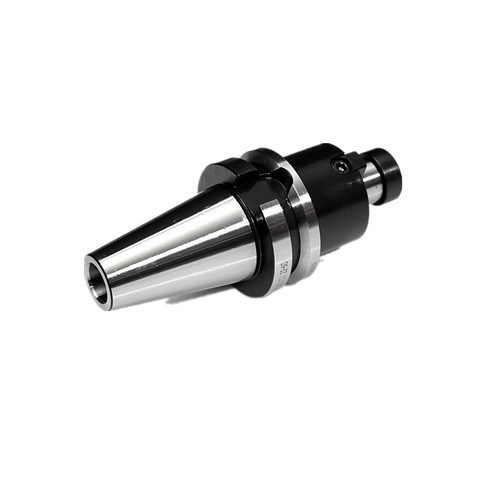

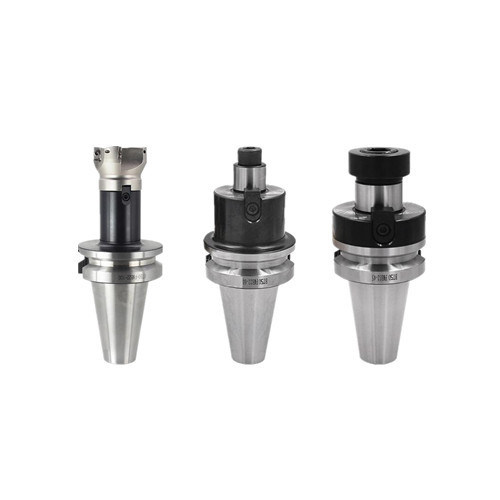

32mm Dia Facemill Lathe BT Tool Holder For Face Milling Cutter

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: BT30,BT40,BT50
Minimum Order Quantity: 10PCS
Price: USD 10/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
AppliCATEion: CNC Machine Color: Black
Installation Method: Screw Length: 100
Material: 20CrMnTi Packaging: Carton
Product Name: BT Tool Holder Tolerance: 0.005mm
Weight: 1.2kg Brand: BT
Package: Carton Box Type: Tool Holder
Diameter: 32MM Balancing: G6.3
High Light:

Facemill Lathe BT Tool Holder

,

32mm Dia BT Tool Holder

,

Face Milling Cutter BT Tool Holder

BT Face Milling Holder lathe tool holder bt tool holder face milling cutter



BT Face Milling Holder lathe tool holder,BT face milling holder The main types of BT50 plane milling tool shank series are . Material: Titanium alloy 20CrMnTi, wear-resistant and durable. Tool holder hardness 58-60 degrees, low noise, low wind resistance, high repetitive clamping accuracy. BT face milling machine arbor extensions tool holder , Its precision is 0.05mm. The diameter clamping range is 0.5-16mm bit. Mechanical spindle and cutting tools and other accessories.High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.BT Face Milling Holder used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill.



BT tool Holder SpecifiCATEEions

1.BT Face Milling Holder Materail: 20CrMnTi OR 40Cr
2.BT Face Milling Holder Max run out: <0.005mm
3.Taper tolerance:<AT3

4.Hardness:HRC48-52
5.Surface Roughness: Ra<0.005mm
6.BT Face Milling Holder Cooling AD+B type can be made by request
7.When Order, please specify balancing G6.3 or G2.5
8. BT Face Milling Holder Shank of the BT Taper Shell Mill Arbors:BT30, BT40,BT50





. BT Cutting Tool Holder

BT FACE MILLING HOLDER Products advantages

1. clip in the design of the site, to prevent vibration, clamping force, high accuracy.
2. by cryogenic treatment, to ensure the quality stability, durability and no deformation, excellent wear resistance.
3. rigidity to improve, more durable, more productive.
4. suitable for milling machine, can do heavy cutting, precision cutting use.
5. this special steel material is stable, not easy to deformation, has the advantages of not easy to crack, quenching hardening, electroplating coating.



Milling tool holder BT FMB face milling holder Sub-zero treatment : All of the CNC chucks are processed long time Sub-zero treament (-180oC , more than 20 hours ) , Mke the residual austenite into martensite and precipitate os nona-sized carbide particles , enhance chucks hardness, toughness durability, and reduce the residual internal stress,

Model D L C1 H1 G
BT30- FMB22-45 22 45 56 18 M10
FMB27-45 27 45 64 20 M12
BT40- FMB22-45 22 45 48 18 M10
FMB22-90 22 90 48 18 M10
FMB27-45 27 45 60 20 M12
FMB27-60 27 60 60 20 M12
FMB27-90 27 90 60 20 M12
FMB32-45 32 45 63 21 M16
FMB32-60 32 60 63 21 M16
FMB40-45 40 45 68 23 M16
FMB40-60 40 60 68 23 M16
BT50- FMB22-45 22 45 48 18 M10
FMB22-75 22 75 48 18 M10
FMB27-45 27 45 65 20 M12
FMB27-75 27 75 65 20 M12
FMB27-90 27 90 65 20 M12
FMB32-45 32 45 73 21 M16
FMB32-75 32 75 73 21 M16
FMB40-45 40 45 85 23 M16
FMB40-75 40 75 85 23 M16
FMB40-105 40 15 85 23 M16
