| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | CNC Machine | Color: | Black |
|---|---|---|---|
| Installation Method: | Screw | Material: | 20CrMnTi |
| Packaging: | Carton | Tolerance: | 0.005mm |
| Weight: | 1.2kg | Brand: | BT |
| Package: | Carton Box | Type: | Tool Holder |
| Cooling: | AD/B | ||
| High Light: | FMB22-75 BT50 Face Mill Arbor,BT50 Milling Tool Holder,FMB22-75 Face Mill Arbor |
||

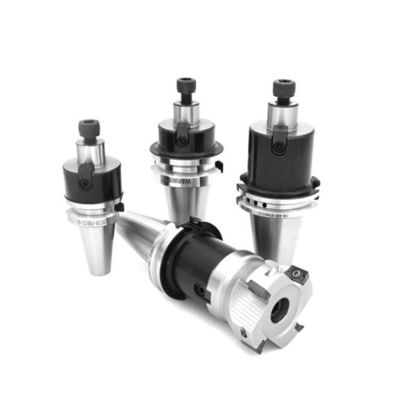

BT50 FMB22-75 Face Mill Arbor Milling Tool Holder for CNC Machine face mill cutter
Face Mill Cutter BT50 CNC Tool Holder is an indispensable tool for clamping the shank in the machining industry. BT FACE MILLING HOLDER Its precision is 0.05mm. The diameter clamping range is 0.5-16mm bit. Mechanical spindle and cutting tools and other accessories.High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.BT FMB face mill arbor milling tool holder for cnc machine, BT Face Milling Holder used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill.
BT FACE MILLING HOLDER The main types of BT50 plane milling tool shank series are . Material: Titanium alloy 20CrMnTi, wear-resistant and durable. Tool handle hardness 58-60 degrees, low noise, low wind resistance, high repetitive clamping accuracy. It is a tool handle for special face milling cutter disc. The whole through hole is conducive to water discharge and has good seismic resistance.
SpecifiCATEEions
1.BT Face Milling Holder Materail: Alloyed Steel
2.BT Face Milling Holder Max run out: <0.005mm
3.BT Face Milling Holder Taper tolerance:<AT3
4.BT Face Milling Holder Hardness:HRC48-52
5.Surface Roughness: Ra<0.005mm
6.BT Face Milling Holder Cooling AD+B type can be made by request
7.When Order, please specify balancing G6.3 or G2.5
8. BT Face Milling Holder Shank of the BT Taper Shell Mill Arbors:BT30, BT40,BT50
BT face milling holder Featuer
1.High Precision BT40 milling arbor , Run out precision
0.003mm,greatly improve your workpiece accuracy.
2.Maximum Speed: 30,000RPM.
3.Dust-proof design could extend toolholder lifetime.
4.C-type wrench attached for each collet chuck.
BT face milling holder AppliCATEEion:The BT40 FMA milling arbor are mainly used for clamping face milling
cutter. for JIS B4113 face milling working
| Model | D | L | C1 | H1 | G | |
| BT30- | FMB22-45 | 22 | 45 | 56 | 18 | M10 |
| FMB27-45 | 27 | 45 | 64 | 20 | M12 | |
| BT40- | FMB22-45 | 22 | 45 | 48 | 18 | M10 |
| FMB22-90 | 22 | 90 | 48 | 18 | M10 | |
| FMB27-45 | 27 | 45 | 60 | 20 | M12 | |
| FMB27-60 | 27 | 60 | 60 | 20 | M12 | |
| FMB27-90 | 27 | 90 | 60 | 20 | M12 | |
| FMB32-45 | 32 | 45 | 63 | 21 | M16 | |
| FMB32-60 | 32 | 60 | 63 | 21 | M16 | |
| FMB40-45 | 40 | 45 | 68 | 23 | M16 | |
| FMB40-60 | 40 | 60 | 68 | 23 | M16 | |
| BT50- | FMB22-45 | 22 | 45 | 48 | 18 | M10 |
| FMB22-75 | 22 | 75 | 48 | 18 | M10 | |
| FMB27-45 | 27 | 45 | 65 | 20 | M12 | |
| FMB27-75 | 27 | 75 | 65 | 20 | M12 | |
| FMB27-90 | 27 | 90 | 65 | 20 | M12 | |
BT Arbor For Face Milling Cutter, used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill.Cooling AD+B type can be made by request,When Order, please specify balancing G6.3 or G2.5.Shank of the BT Taper Shell Mill Arbors:BT30, BT40,BT50.suitable for milling machine, can do heavy cutting, precision cutting use.
