BT50-C32-105 Straight Collet Chuck Tool Holder For Wood Machines

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: BT30,BT40,BT50
Minimum Order Quantity: 10PCS
Price: USD 13/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Material: 20CrMnTi Packaging: Carton
AppliCATEion: CNC Machine Color: Black
Coolant Hole: Yes Coolant Type: Through Coolant
Diameter: 20-50mm Length: 50-150mm
Name: BT Tool Holder Package: Carton Box
Taper Accuracy: 0.005mm Weight: 2kgS
Accuracy: High Precision Size: Standard
Taper: BT
High Light:

BT50-C32-105

,

Straight Collet Chuck Tool Holder

,

BT50 C32 Collet Chuck Tool Holder

BT50-C32-105 Tool Holder, High Accuracy straight collet chuck wood machines

BT Tool Holder C Power Milling Collet Chuck ,The standard milling chuck has the spacing between chuck body and transfer screw cap. It easily makes water with dust and cutting scrap into the spacing, and it also will be move to take the dust and cutting scrap together running, it not only fret the surface of chuck body and transfer screw cap, but also break the needle roller bearing. The holding precision will be falling, at last it lose holding capacity.

Bt Tool Holder SpecifiCATEEions
1. Material:20CrMnTi
2. Max Rotation speed>12000rpm
3. Bt C Milling Collet Chuck Collet:C type
4. Tool Holder Accuracy :below 0.005mm
5. Bt C Straight Milling Collet Chuck High Speed
6. Be used for clamping tools with cylindrical shank;
a. Good equipments, 90% of the equipment were imported from oversea.
b. Non-standard/standard/OEM/ODM/customized service provided
c. Tool Holders For Cnc Machines High precision, tolerance can be ±0.002mm
d. Fast lead time
e. Can meet DIN,JIS,ASTM,AISI,BS,GB standard

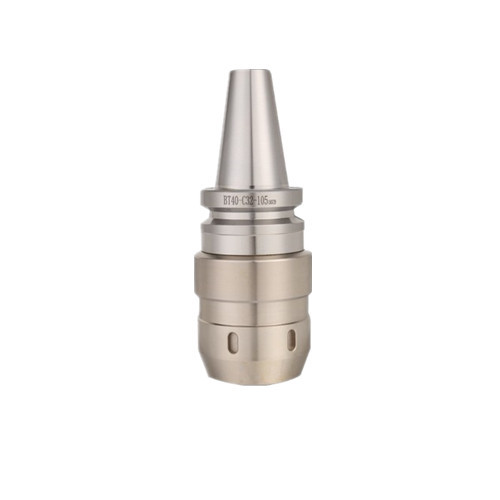

BT50-C32-105 Straight Collet Chuck Tool Holder For Wood Machines 0



Precision BT Powerful Milling Straight Collet Chuck Tool Holders BT Tool Holders
1.BT C Milling Collet Chuck Material:20CrMnTi
2.Milling Collet Chuck Max Rotation speed>12000rpm
3.Collet:C type(Straight Collet)

Size of shank & ColletsBack Bar ThreadWt.
MT4SC32-75LM16×2.0P2.5KGS
MT5SC32-75LM24×3.0P3.5
 SC42-110L 5.0
R8SC20-85L7/16″-202.5
NT30SC20-65LM12×1.75P3.0
NT40SC20-70LM16×2.0P3.5
 SC32-95L 4.0
NT50SC32-100LM24×3.0P4.5
 SC42-110L 6.0
BT30SC20-85LM12×1.75P2.5
 SC25-85L 3.0
BT40SC20-80L/120LM16×2.0P3.0/4.0
 SC25-90L/135L 4.5/5.0
 SC32-105L/150L 3.0/3.5
BT50SC20-105L/150LM24×3.0P3.0/4.5
 SC32-110L/150L 5.2/7.0
 SC42-115L/150L 7.0/8.5


Our mainly manufactures Tooling System,Tool Holder,Bt Tool Holder,Wood Machines Parts and machine accessories belong to the line of machine & Tools. main products are necessary Tool Holders in lathing,milling,drilling,grinding,boring,planning,CNC machines or machine centers,including variety of spring collets,collets chuck sets,mill holders,tapping collets,rough or precision boring heads,drill chucks,live centers and so on.other products have lathe chucks,steel clamping kits,machine vises,bench vises,dividing heads,rotary table and magnetic chucks and so on.All products are available in a full range of regular models, and can also be customized for drawings and samples.
