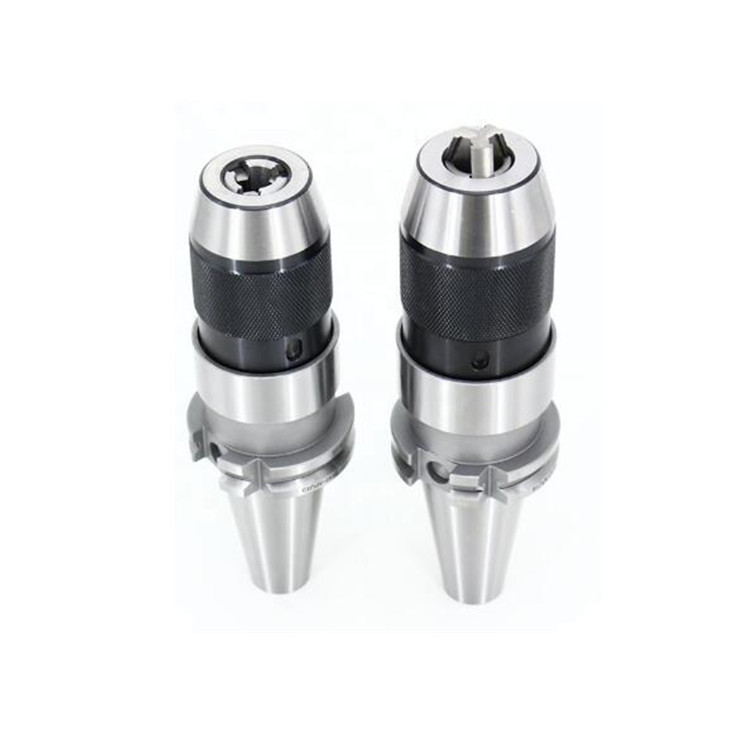

BT40-APU16-110 CNC Drill Collet Chuck Tool Holder BT Integrated Drill Chucks

Basic Information
Place of Origin: CHINA
Brand Name: QFMH
Model Number: BT30,BT40,BT50
Minimum Order Quantity: 10PCS
Price: USD 14/PCS
Packaging Details: PLASTIC BOX
Delivery Time: 5DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PCS/MONTH
Features: High Precision AppliCATEion: Cnc Drilling Machine
Connection: BT Coolant: Through Coolant
Length: Standard Length Material: 20CrMnTi
Model: BT40 Name: BT APU Tool Holder
Shank: BT Size: 16MM
Taper: BT40 APU16 Type: Tool Holder
Weight: 2KGS Clamping Range: 0.5-16mm
High Light:



CNC Drill Collet Chuck Tool Holder


BT40 Integrated Drill Chucks

BT40-APU16-110 CNC Drill Milling Chuck Tool Holder Collet Chuck BT Integrated Drill Chucks


CNC Drill Milling Chuck Tool Holder Collet Chuck BT Integrated Drill Chucks ,Cnc tool Holder is widely used in high speed cutting machine tool rotary tool clamping equipment, plays the role of connecting CNC machine tool spindle and cutting tool and transmitting torque.Tool Holders For Cnc Machines.



1.Tool Holder Material: JIS-SCM415 (After heat treatment, it has rigid hardness and toughness, better grinding quality, good flexibility and longer using life span)

2.Bt Tool Holder HRC: 56° - 58°; Carbon depth: 0.8mm ± 0.2mm; Accuracy of deviation:below 5μ (4D length)
3.The BT APU tool holder is added with mullti safety design and suitable for machine center. In totally automatic operation controlled by computer and unmanned management process. It can be processed safety and smoothly.
4.The integrated design of the rob and collet, can avoid the collet and rob separate.
5.High accuracy; strong grap force; and high stability.
6.Self - tightening, grasp the collet slightly when drilling, grasp force is enhancing with the torque increasing and develop obvious strong grasp force to prevent the drill remove.



CNC milling machine tool BT type lathe drill chuck,APU Integrated Self Fasten Drill Chuck with 8mm 13mm 16mm size are made of high quality steel material, with hardness of HRC56-60. We produce all size of BT ER tool holders including BT30/40/50 APU tool holder series. We have exported to humorous countries, and establish good cooperate relationship. We also manufactures kinds of CNC machine tool accessories including collet chucks, pull studs, retention knob, spanner and wrench and other related products.

D1 D2 L1 L
BT30 APU8-80 36.5 46 80 137.4 0.3-8
APU13-110 48 110 158.4 1-13
APU16-110 55.5 110 158.4 3-16
BT40 APU8-85 36.5 63 85 150.4 0.3-8
APU13-105 48 105 170.4 1-13
APU13-130 130 195.4
APU16-105 55.5 105 170.4 3-16
APU16-130 130 195.4
BT50 APU8-90 36.5 100 90 191.8 0.3-8
APU13-110 48 110 211.8 1-13
APU13-180 180 281.8
APU16-115 55.5 115 216.8 3-16
APU16-130 130 236.8
APU16-190 190 296.8


Model Range L Drawbar T
BT30-APU13-110 1-13mm 110 M12
BT40-APU13-110 1-13mm 110 M16
BT40-APU16-110 1-16mm 110 M16
BT50-APU13-110 1-13mm 110 7/16″
BT50-APU16-130 1-16mm 130 7/16″
R8 APU13 M12 1-13mm 90 M12
MT2 APU13 M10 1-13mm 90 M10
MT2 APU13 M12 1-13mm 130 M12
MT4 APU16 M16 1-16mm 130 M16
