| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | Cnc Milling | Brand: | BT |
|---|---|---|---|
| Cutting Edge Diameter: | 15mm | Material: | 20CrMnTi |
| Model: | BT50 Oz32 | Overall Length: | 100mm |
| Quantity: | 2pc | Shank Type: | BT Oz |
| Type: | Tool Holder | Weight: | 0.2kg |
| High Light: | BT40-OZ25-80 BT Tool Holder,BT40-OZ25-80,Milling Machine Chuck DIN6391 |
||

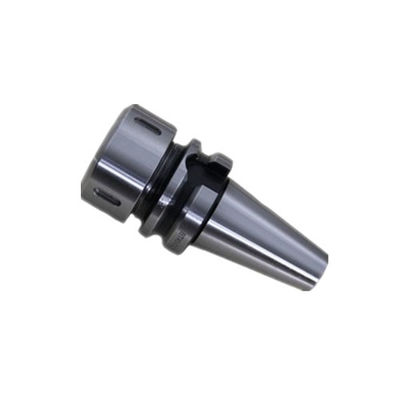

BT40-OZ25-80 Heavy Cutting bt Tool Holder for Milling Machine milling cutters mill chuck
The BT-OZ milling cutter chuck tool holder is suitable for heavy-duty cutting milling machines. The handle is designed with steel ball nuts to increase clamping force, and the entire handle has through-holes, which is beneficial for water and earthquake. The BT-OZ chuck can be used for clamping various sizes of straight shank tools, such as milling cutters, drill bits, and tapping cutters, in various drilling machines, milling machines, lathes, etc. Mechanical spindles, cutting tools, and other accessories. High precision BT tool handle, balance G6.3 or G2.5 available for selection.
High precision OZ chuck DIN6391 has four commonly used models of BT50 heavy-duty cutting CNC tool holders, which are made of titanium alloy 20CrMnTi. The hardness of the BT OZ chuck tool holder is 58-60 degrees, and the accuracy of the BT OZ chuck is 0.005mm. The BT50 heavy-duty cutting CNC tool holder is treated with carbon and nitrogen, making it wear-resistant and durable. The BT OZ chuck has good dynamic balance performance, strong stability, and high precision in repeated clamping. The BT OZ chuck can be used to clamp drill bits, milling cutters, and tapping cutters. Counterweight cutting cylinder clamp and heavy cutting nut. The BT OZ chuck is suitable for heavy-duty cutting, and the handle is designed with steel ball nuts to increase clamping force. The entire handle has through-holes, which is beneficial for waterproofing and seismic resistance.
BT OZ CNC tool holder chuck
Cooling: AD/AD+B
Taper tolerance:<AT3
Carbon depth: 0.8mm ± 0.2mm
Surface roughness: Ra<0.005mm
CNC tool holder accuracy: ＜ 0.005mm
The CNC tool holder is made of alloy steel, which has good core strength and long wear life.
Tapered shank Case-hardening to 58-62 HRC
Taper grinding to AT3 or higher precision standards to achieve maximum contact with the spindle
All key surfaces of the collets have undergone precision grinding
Dynamic equilibrium to 15000 RPM at all positions of G6.3 can be achieved through Haimer balancing machine to achieve consistent balance, and G2.5/25000 RPM can also be provided.
| Model | D2 | L | D | L1 | Collets |
| BT40-OZ25-80 | 3-25 | 80 | 60 | 30 | OZ25 |
| BT40-OZ25-120 | 3-25 | 120 | 60 | 30 | OZ25 |
| BT40-OZ32-80 | 6-32 | 80 | 72 | 33 | OZ32 |
| BT40-OZ32-150 | 6-32 | 150 | 72 | 33 | OZ32 |
| BT50-OZ25-90 | 3-25 | 90 | 60 | 30 | OZ25 |
| BT50-OZ25-130 | 3-25 | 130 | 60 | 30 | OZ25 |
| BT50-OZ32-105 | 6-32 | 105 | 72 | 33 | OZ32 |
Appearance precision machining, chemical nickel plating, improved corrosion resistance, wear resistance, and corrosion resistance, better achieving rust prevention effect. BT NO cone handle adopts MTA3 standard inner and outer cone coaxiality of 0.005mm. The existing lengths of 60L, 100L, 120L, 150L, and 200L can also be customized according to customer requirements. The dynamic balance design is simple and easy to operate, with simple clamping and high cost-effectiveness. Novel appearance, convenient and fast use, Dynamic equilibrium, high-speed handle design structure, can improve your work efficiency and greatly save your production costs
