| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 10/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | Milling | Brand: | BT |
|---|---|---|---|
| Coating: | TiAIN | Cutting Edge Angle: | 90° |
| Cutting Edge Diameter: | 10mm | Material: | 20CrMnTi |
| Model: | BT50 | Overall Length: | 120mm |
| Quantity: | 1pc | Shank Type: | BT |
| Type: | Tool Holder | Weight: | 0.5kg |
| Hardness: | HRC58-62 | ||
| High Light: | BT50-OZ25-90,OZ25 CNC Tool Holder,BT50 CNC Tool Holder |
||

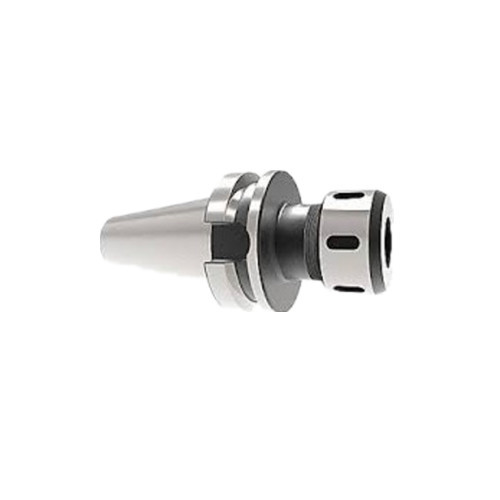

BT50-OZ25-90 CNC Tool Holder for Heavy Cutting collet tool cnc milling machine
BT-OZ mill chuck tool holder for milling machine for heavy cutting, handle with steel ball nut design, increase the clamping force, the whole handle through hole, conducive to water and earthquake.BT OZ Collet Chuck can be used for the clamping of straight shank tools of various sizes such as milling cutters, drill bits, and wire tapping knives, in various drilling machines, milling machines, lathes, etc.. Mechanical spindle and cutting tools and other accessories. High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.
| Model | D2 | L | D | Collets |
| BT40-OZ25-80 | 3-25 | 80 | 60 | OZ25 |
| BT40-OZ25-120 | 3-25 | 120 | 60 | OZ25 |
| BT40-OZ32-80 | 6-32 | 80 | 72 | OZ32 |
| BT40-OZ32-150 | 6-32 | 150 | 72 | OZ32 |
| BT50-OZ25-90 | 3-25 | 90 | 60 | OZ25 |
| BT50-OZ25-130 | 3-25 | 130 | 60 | OZ25 |
| BT50-OZ32-105 | 6-32 | 105 | 72 | OZ32 |
| BT50-OZ25-150 | 6-32 | 150 | 72 | OZ32 |
High Precision OZ Collet Chuck DIN6391 ,There are four kinds of commonly used models of BT50 heavy cutting CNC tool holder, which are made of titanium alloy 20CrMnTi, BT OZ Collet Chuck tool holder hardness 58-60 degrees, BT OZ Collet Chuck accuracy 0.005mm, carbonitriding treatment, wear-resistant and durable. BT OZ Collet Chuck It has good dynamic balance performance, strong stability and high repetitive clamping accuracy. BT OZ Collet Chuck It can be used to clamp drills, milling cutters and tapping cutters. Counterweight cutting cylinder clamp and heavy cutting nut.BT OZ Collet Chuck for heavy cutting, handle with steel ball nut design, increase the clamping force, the whole handle through hole, conducive to water and earthquake.
BT OZ Collet chuck for CNC tool holder
Cooling: AD/ AD+B
Taper tolerance: <AT3
Carbon depth: 0.8mm±0.2mm
Surface Roughness: Ra<0.005mm
CNC Tool Holder Precision: <0.005mm
CNC Tool Holder manufactured from alloy steel with good core strength and long wear life.
Taper shank is case hardened to 58-62 HRC
Taper ground to AT3 or better accuracy standard for maximum contact with spindle
All collet chuck critical surface are precision ground
Dynamically balanced to 15,000RPM at G6.3 by Haimer balancing machine at all loCATEEion for consistent balance, G2.5/25000 RPM can be provided as well.
Appearance finishing, electroless nickel plating, improved corrosion resistance, wear resistance and corrosion resistance, Better achieve anti-rust effect BT NO taper shank implements MTA3 standard internal and external taper coaxiality 0.005mm. Existing 60L 100L 120L 150L 200L and other lengths can also be customized according to customer requirements. Dynamic balance design is simple and easy to operate, clamping is simple and cost-effective. New appearance, convenient and fast use, dynamic balance, high speed tool shank design structure, more improve your Work efficiency greatly saves your production costs
