| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 11/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | Milling Machine | Coating: | TiAIN |
|---|---|---|---|
| Cutting Edge Diameter: | 20mm | Material: | 20CrMnTi |
| Model: | BT40 OZ32 | Overall Length: | 105mm |
| Shank Type: | BT Oz32 | Type: | BT Tool Holder |
| Weight: | 0.7kg | Hardness: | HRC58-62 |
| Runout Accuracy: | 0.005mm | Size: | Oz32 |
| High Light: | BT40-OZ32-80,OZ32 Milling Tool Holder,BT40 milling machine holder |
||

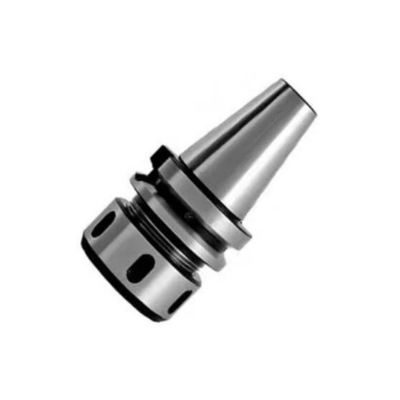

BT40-OZ32-80 High-Precision Steel Ball Nut Milling Tool Holder
BT OZ Collet Chuck DIN6391 Tool Holder,Balancing: G6.3/15000 RPM, usually OZ Tool Holders are used for heavy duty metal cutting, so no ned for G2.5/25000 RPM. But if there is such requirement, we can also provide.OZ collet chuck Runout: 0.005mm. Most collet chucks are within 0.003mm, but 0.005mm is avaialble for most manufacturing process.BT OZ Tool Holder Set is also available, it includes one OZ Collet Chuck, the whole set OZ collets and a hook spanner.
BT OZ Collet chuck for CNC metal working holderThe heavy cutting CNC toolholder adopts carbonitriding treatment, which is wear-resistant and durable. Good dynamic balance performance, strong stability and high repeated clamping accuracy. It can be used to hold drill bits, milling cutters, and tapping tools.
1.Name: OZ Collet Chuck
2.Material : Allyed case hardened steel, black-finished and precisely grinded
3.Taper Tolerance : <AT3
4.Run out :0.005MM
5.Type: BT30, BT40, BT50
6.Cooling : central collant AD and AD/B can be made by request
7.Balancing :At the G6.3 dynamic balance, the RPM is about 15000 RPM. Balancing G2.5/25000RPM can be made by request.
8.AppliCATEEion : For clamping toois with staight shank in collets DIN6388
| Model | D2 | L | D | L1 | Collets |
| BT40-OZ25-80 | 3-25 | 80 | 60 | 30 | OZ25 |
| BT40-OZ25-120 | 3-25 | 120 | 60 | 30 | OZ25 |
| BT40-OZ32-80 | 6-32 | 80 | 72 | 33 | OZ32 |
| BT40-OZ32-150 | 6-32 | 150 | 72 | 33 | OZ32 |
| BT50-OZ25-90 | 3-25 | 90 | 60 | 30 | OZ25 |
| BT50-OZ25-130 | 3-25 | 130 | 60 | 30 | OZ25 |
| BT50-OZ32-105 | 6-32 | 105 | 72 | 33 | OZ32 |
| BT50-OZ25-150 | 6-32 | 150 | 72 | 33 | OZ32 |
Spring Collet CNC Machine High Precision BT OZ Collet Holder Chuck Tools ,BT tool holders perform work with high strains and pressures, so be sure to store them safely without any chance for the tool being damaged – as this may cause some misbalance that can be critical at high speeds and precise CNC machinery.
DIN6391 OZ EOC Collet Chuck CNC Tool Holder, BT Tool Holders will accept both Imperial and metric sized tools.BT tools allow use of ATC (Automatic Tool Change) technology to maximize the speed and productivity of manufacturing.Balancing :At the G6.3 dynamic balance, the RPM is about 15000 RPM. Balancing G2.5/25000RPM can be made by request.AppliCATEEion : For clamping toois with staight shank in collets DIN6388
BT40-OZ25-80 OZ COLLET CHUCK DIN6391
1.Runout:0.005mm
2.Cooling:AD;AD/B can be made by request.
3.Balancing:G6.3/15000RPM
4.Usage : for clamping tools with straight
5.Shank in collets DIN6388
