| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QFMH |
| Model Number: | BT30,BT40,BT50 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 11/PCS |
| Packaging Details: | PLASTIC BOX |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/MONTH |
| AppliCATEion: | Milling | Brand: | BT |
|---|---|---|---|
| Coating: | TiAIN | Cutting Edge Angle: | 90° |
| Cutting Edge Diameter: | 10mm | Material: | 20CrMnTi |
| Model: | BT40 | Overall Length: | Various Lengths |
| Shank Type: | BT OZ | Type: | Tool Holder |
| Weight: | 0.4kg | Hardness: | HRC58-62 |
| Runout Accuracy: | 0.005mm | Size: | Oz25 |
| Thread Length: | Various Lengths | Thread Size: | Various Lengths |
| High Light: | BT40 OZ BT Tool Holder,Lathe Collet Chuck BT40,OZ BT40 CNC Lathe Tool Holder |
||

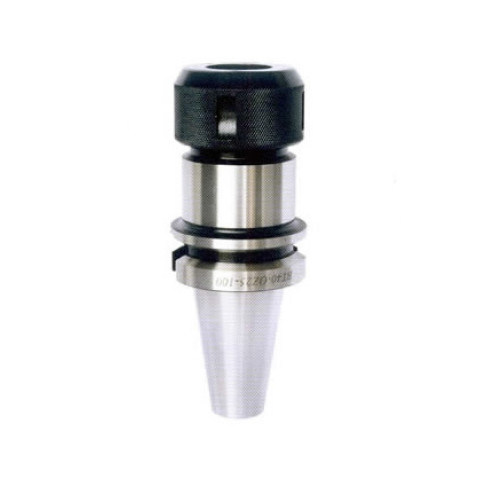

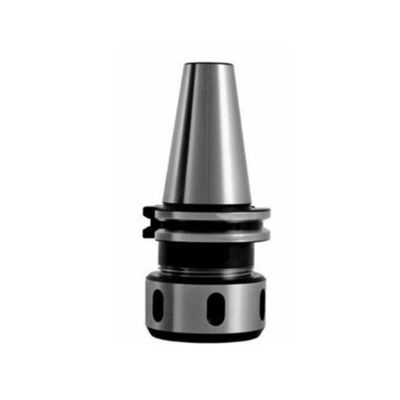

Lathe Collet Chuck Types BT40OZ2580 Common bt tool holder collet chuck lathe
BT heavy cutting CNC tool holder,High quality steel 20CrMnTi, high hardness, bright appearance and good comprehensive mechanical properties, complete carburization heat treatment, internal and external diameter grinding, strong wear resistance and stable quality. Counterweight cutting cylinder clamp and heavy cutting nut.
Heavy cutting toolholder,High Precison BT OZ Collet Chuck,igh quality steel, high hardness and wear resistance. The body is made of high-quality steel 20CrMnTi. The built-in ball is durable. The built-in ball design reduces wear efficiency, has a long life, and exquisite workmanship, creating military quality.
1.Name: Mill chuck BT-OZ
Material used: special alloy steel, the hardness is 45-48HRC
2.Oz Collet Chuck Used: special alloy steel the, hardness is 45-48HRC Material
3.Cnc Tool Holder Accuracy: 0.01mm Ontology
4.Bt Oz Collet Chuck Description: for example BT40OZ2580 Model
Stands for BT "shank BT40"
Stands for handle "type OZ25"
80 represents "length handle"
5.Lathe Collet Chuck Types: BT40OZ2580 Common
BT40OZ25120
BT40OZ3280
BT40OZ32150
BT50OZ2590
BT50OZ25130
BT50OZ32105
BT50OZ32150
| Model | D2 | L | L1 | Collets |
| BT40-OZ25-80 | 3-25 | 80 | 30 | OZ25 |
| BT40-OZ25-120 | 3-25 | 120 | 30 | OZ25 |
| BT40-OZ32-80 | 6-32 | 80 | 33 | OZ32 |
| BT40-OZ32-150 | 6-32 | 150 | 33 | OZ32 |
| BT50-OZ25-90 | 3-25 | 90 | 30 | OZ25 |
| BT50-OZ25-130 | 3-25 | 130 | 30 | OZ25 |
| BT50-OZ32-105 | 6-32 | 105 | 33 | OZ32 |
| BT50-OZ25-150 | 6-32 | 150 | 33 | OZ32 |
BT40 OZ25 Collet Chuck Lathe ToolHolder,Heavy cutting toolholder,High precision, firm and durable taper handle taper implements JIS b6339 standard, and the surface is treated with black method, which has higher appearance value and better effect. The accuracy is stable, the process is excellent, the body accuracy is 0.003mm, and the concentricity of internal and external one-time forming is high. High concentricity and good processing effect.
BT Tool Holder Collet chuck for OZ Collet,Characteristics of heavy cutting strong clamping tool holder: this heavy cutting strong clamping toolholder is mainly for cutting tools with medium diameter of 20~50mm. Because this diameter range belongs to rough machining, it has higher requirements for the rigidity and clamping force of the tool handle. The powerful knife handle series has a unique slit mechanism, with thickened holding part, good rigidity and 300nm super torque.
BT OZ collet chuck Taper Standard: MAS 403 BT
lathe collet chuck Taper Tolerance: AT3, we use Germany Diebold Gauges to make sure tool holder shanks are within tolerance.
collet chucks Balancing: G6.3/15000 RPM, usually OZ Tool Holders are used for heavy duty metal cutting, so no ned for G2.5/25000 RPM. But if there is such requirement, we can also provide.
BT collet chuck Runout: 0.005mm. Most collet chucks are within 0.003mm, but 0.005mm is avaialble for most manufacturing process.
BT OZ collet chuck Tool Holder Set is also available, it includes one OZ Collet Chuck, the whole set OZ collets and a hook spanner.
